Apply Adhesive Material - AR67.10-P-1000-08S

Model 206, 254

Model 214

Model 223

except code Z07 (B7 armoring on special protection version)

Model 232

Model 236

Model 294

Model 295

Model 296

Model 297

Fig 1: Identifying Adapter (000 589 86 63 00)

Courtesy of MERCEDES-BENZ USA

Only use the adhesive kit specified in the XENTRY Portal parts information.

Courtesy of MERCEDES-BENZ USA

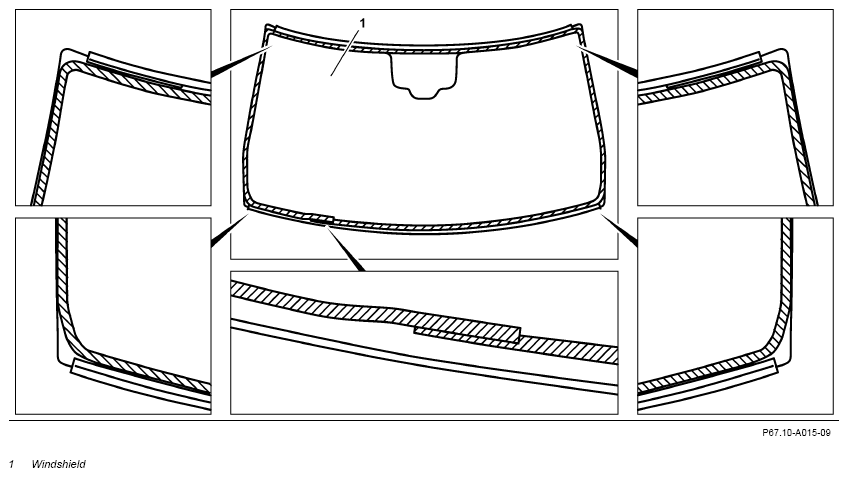

1. Guide application nozzle "13 mm" along markings (hatched area) on windshield (1) and apply adhesive material evenly.

   Install windshield (1) within 10 min of applying adhesive material.

   Otherwise the adhesive force of the adhesive material starts to decrease.

   The height of the adhesive bead must be approx. 13 mm.

2. Completely press out and dispose of adhesive material that is not needed.

   Use adapter to completely press out 1-component adhesive. Insert it between the piston of the cartridge and the plate on the push rod of the caulking gun.
