Adjust Rear Door Side Window Height - AR67.30-P-0016-01SG
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z13 (Left rear power window with special protection)
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z14 (Right rear power window with special protection)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of injury from pinching or crushing hands and feet when working on windows. | Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes. | AS67.00-Z-0003-01A | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | AH67.00-P-0003-01FB |

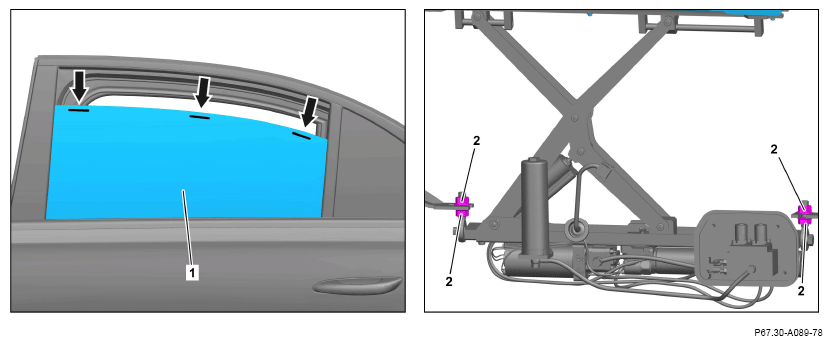

Shown with code Z13 (Left rear window lifter for special protection)
Check
- Lower rear door side window (1) a little.
- Use suitable pen to make three markings on rear door side window (1) in top area at 5 mm.
- Close rear door side window (1) completely and check markings (arrows).
If markings (arrows) are flush with window guide seal:
↓
Remove markings (arrows) and finish work.
If markings (arrows) are not flush with window guide seal:
↓
Adjust height of rear door side window (1) accordingly.
Adjust
- Adjust height of rear door side window (1) via nuts (2) of window lifters and repeat operation step 3.
