Windshield Heater, Component Description - GF67.19-P-0001A

Model 223

Courtesy of MERCEDES-BENZ USA

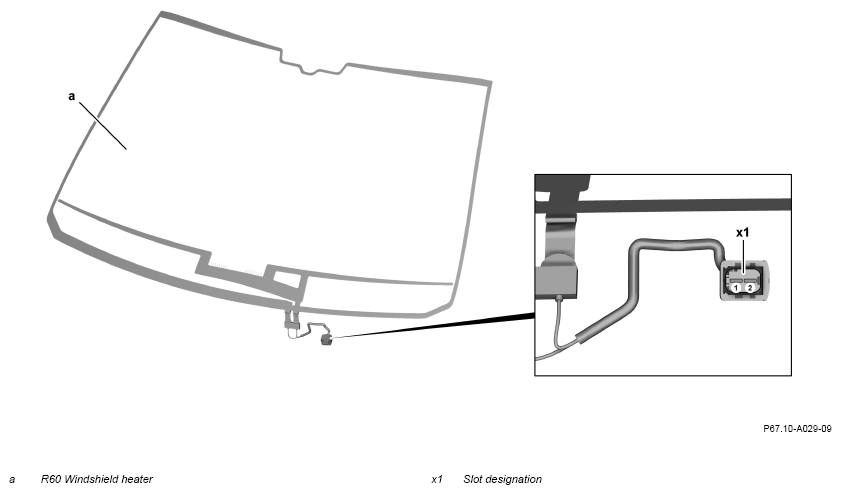

Diagram valid for model 223 with code 445, 596, 597

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with code 463, 596, 597

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

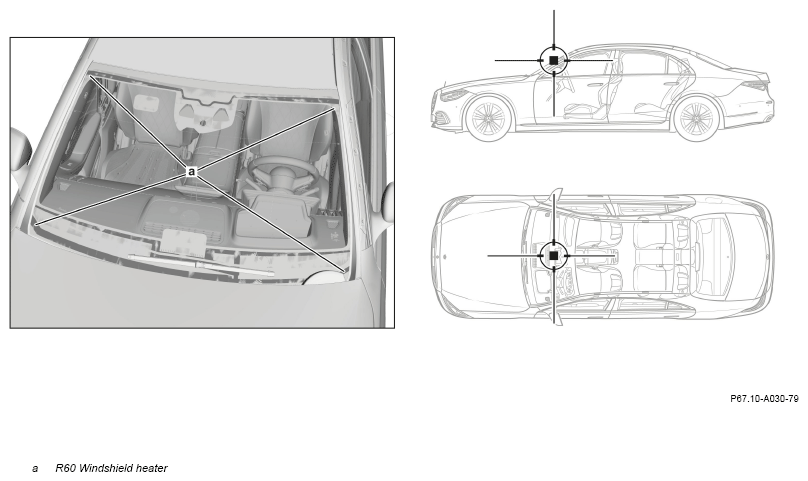

Arrangement in model 223 with code 463, 596, 597
