Window Lifter Hydraulic Pump Relay, Component Description - GF67.39-P-0003A

Model 223

Courtesy of MERCEDES-BENZ USA

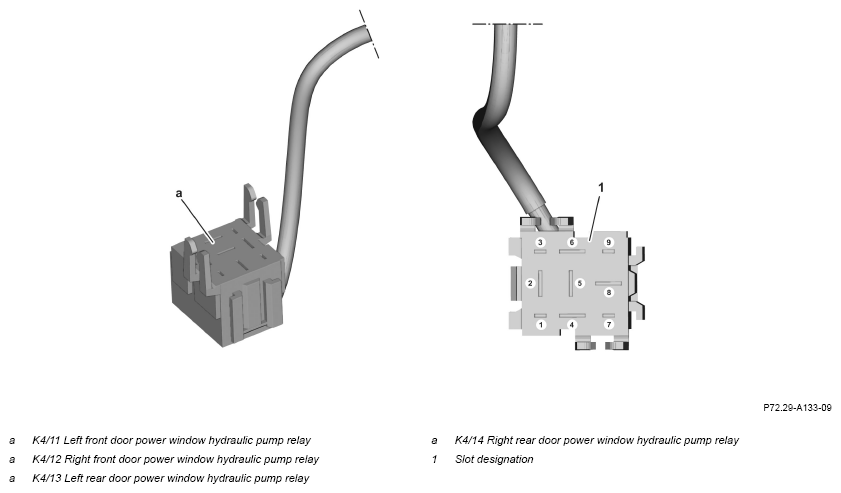

The numbers on the pins indicate the pin numbering of the slots.

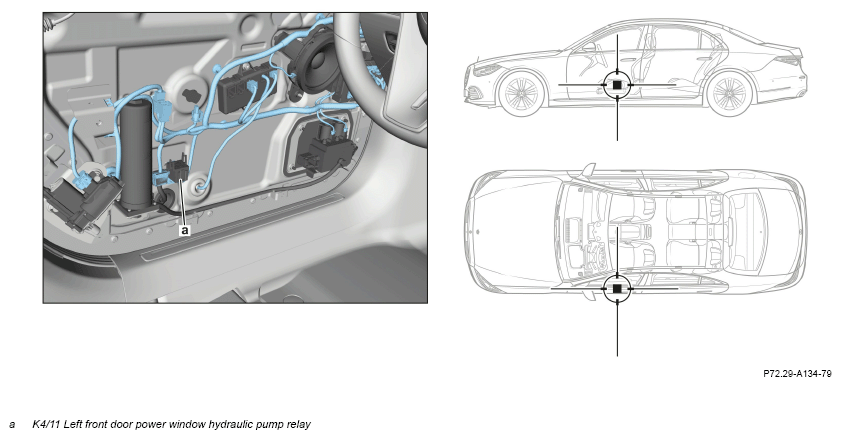

Fig 1: Left Front Power Window Lifter Hydraulic Pump Relay Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left

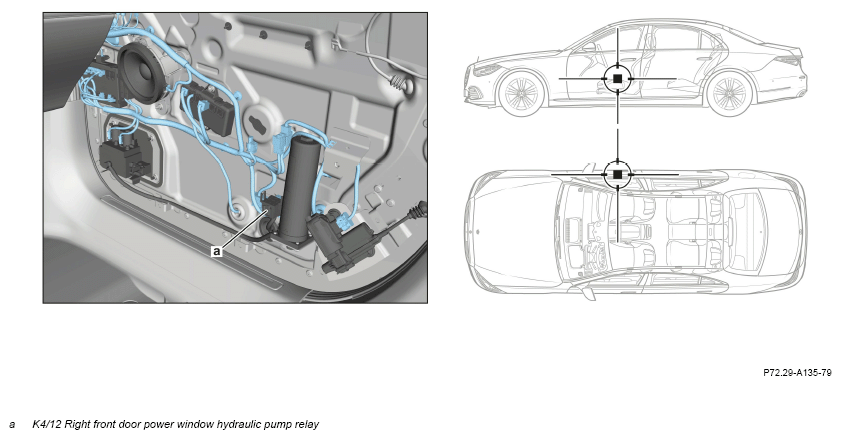

Fig 2: Right Front Power Window Lifter Hydraulic Pump Relay Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right

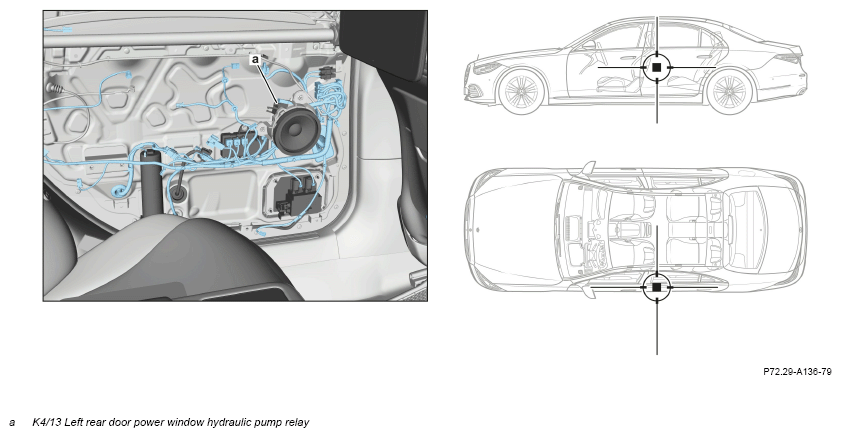

Fig 3: Left Rear Power Window Lifter Hydraulic Pump Relay Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left

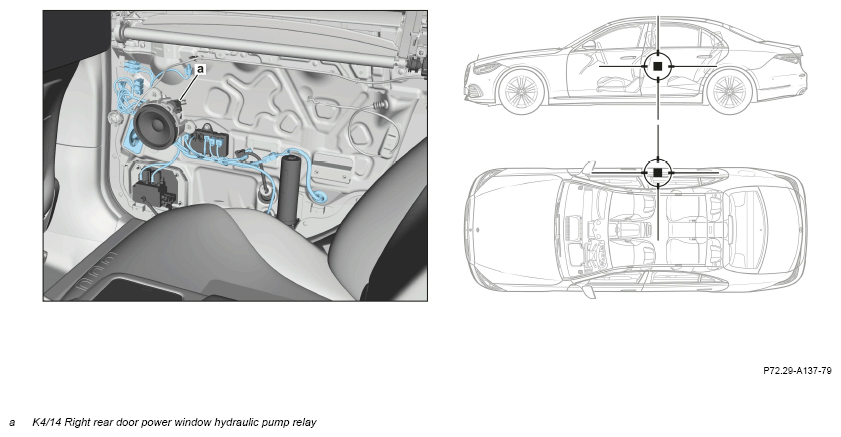

Fig 4: Right Rear Power Window Lifter Hydraulic Pump Relay Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right
