Rear Window Heater, Component Description - GF67.29-P-5001A

Model 223

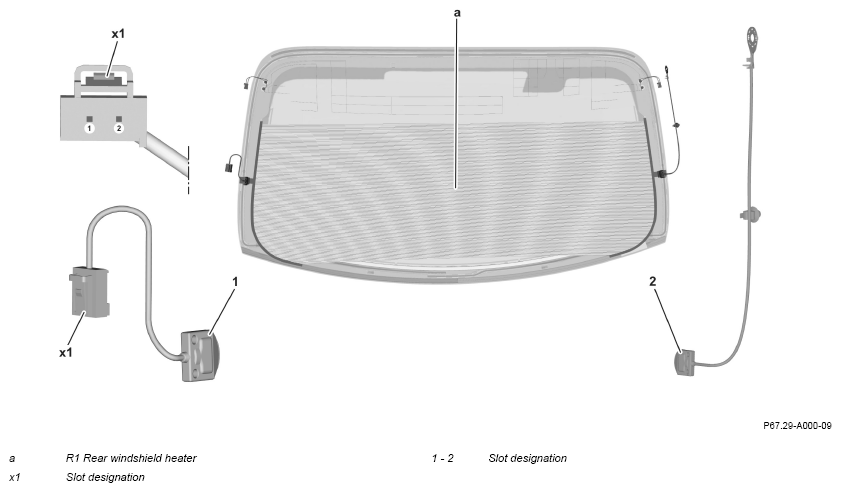

G16231933

Courtesy of MERCEDES-BENZ USA

The numbers on the pins indicate the pin numbering of the slots.

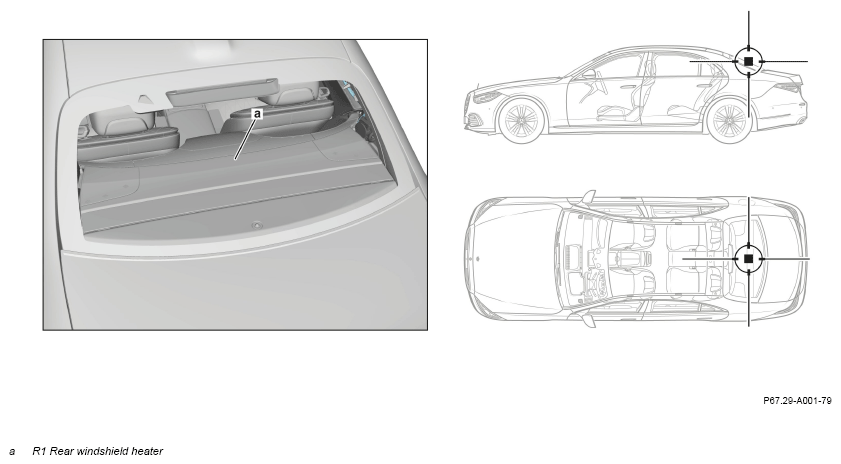

G16231934

Courtesy of MERCEDES-BENZ USA

Location
