Remove/Install Front Door Hinge - AR72.10-P-2660SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

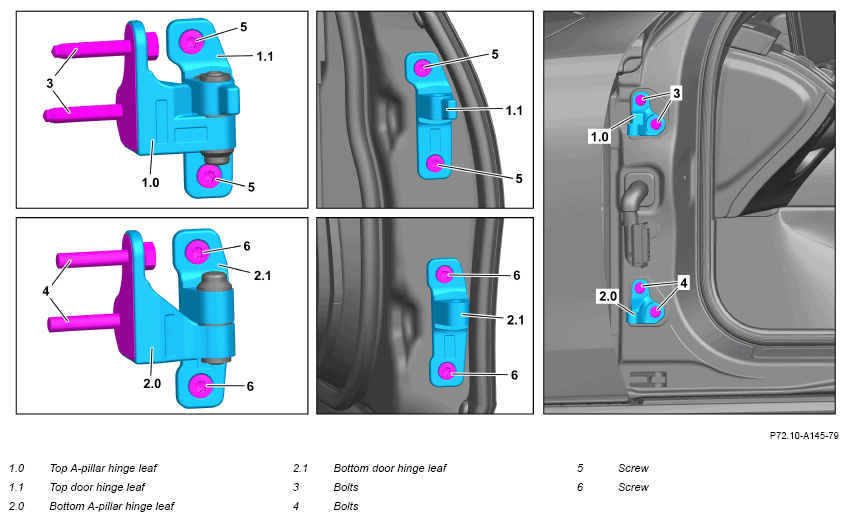

1	Remove front door.		AR72.10-P-0500SG
2	Mark installation position of upper A-pillar hinge leaf (1.0) and upper door hinge leaf (1.1).	When removing upper hinge.
3	Mark installation position of lower A-pillar hinge leaf (2.0) and lower door hinge leaf (2.1).	When removing lower hinge.
4	Unscrew screws (3) and remove upper A-pillar hinge leaf (1.0).	When removing upper hinge. Position upper A-pillar hinge leaf (1.0) on the applied marking.
		Bolt, hinge to body	*BA72.10-P-1006-01BA
5	Unscrew screws (4) and remove lower A-pillar hinge leaf (2.0).	When removing lower hinge. Position lower A-pillar hinge leaf (2.0) on the applied marking.
		Bolt, hinge to body	*BA72.10-P-1006-01BA
6	Remove screws (5) and remove upper door hinge leaf (1.1).	When removing upper door hinge leaf Position upper door hinge leaf (1.1) on the applied marking.
		Screw/bolt, hinge to front door	*BA72.10-P-1005-01BA
7	Remove screws (6) and remove lower door hinge leaf (2.1).	When removing lower door hinge leaf
		Position lower door hinge leaf (2.1) on the applied marking.
		Screw/bolt, hinge to front door	*BA72.10-P-1005-01BA
8	Install in the reverse order.
