Remove/Install Front Door Damper - AR72.10-P-2200SG

Model 223

with code Z07 (B7 armoring on special protection version)

except code Z38 (Opening and closing assistance, driver's doors)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  from fingers being pinched or jammed when working on gas struts under pressure	Only remove and install pneumatic springs when they are not under tension and when the components are properly secured.	AS00.00-Z-0012-01A
	Remove/install

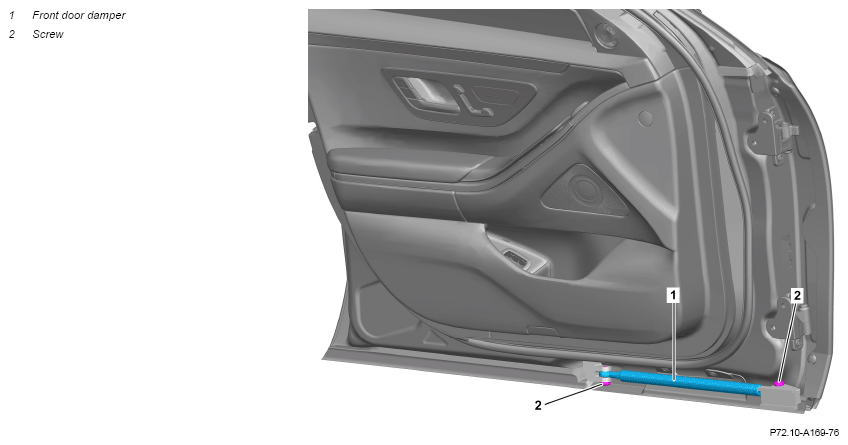

1	Open driver's door or front passenger door.
2	Remove screws (2).	Screw, door holder to mounting supports	*BA72.10-P-1007-01BA
3	Remove front door damper (1).
4	Install in the reverse order.
