Rear Door Drive Unit, Component Description - GF72.12-P-0001A

Model 223

Courtesy of MERCEDES-BENZ USA

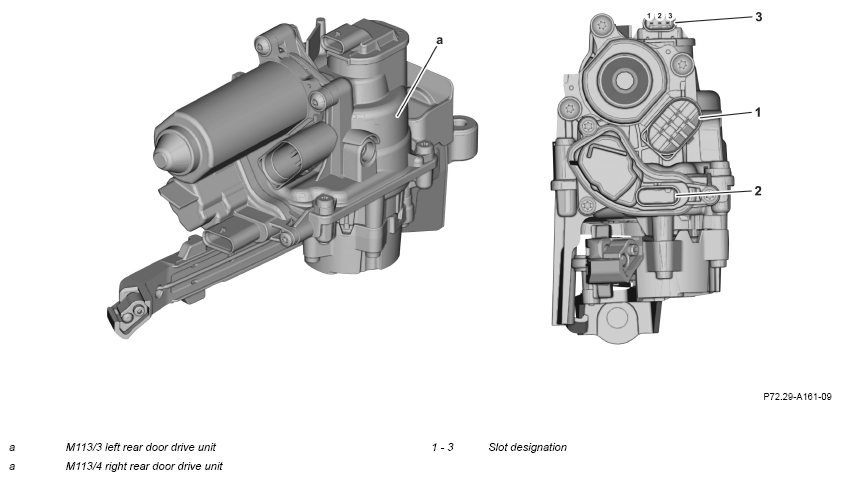

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

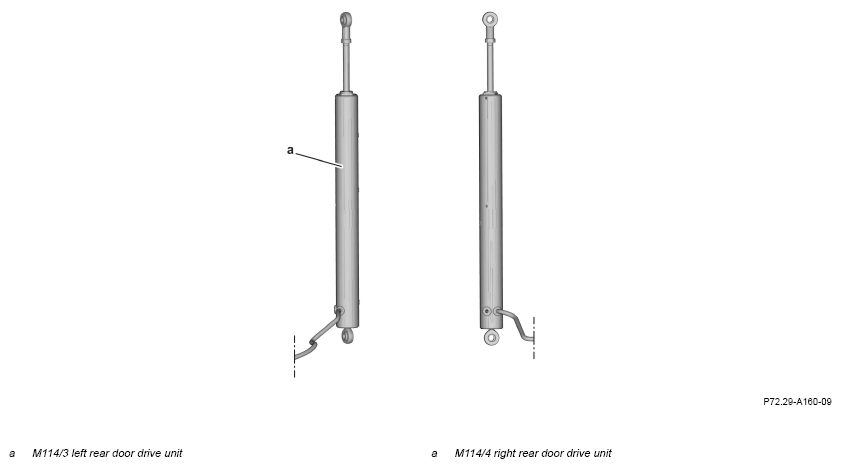

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Location for model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

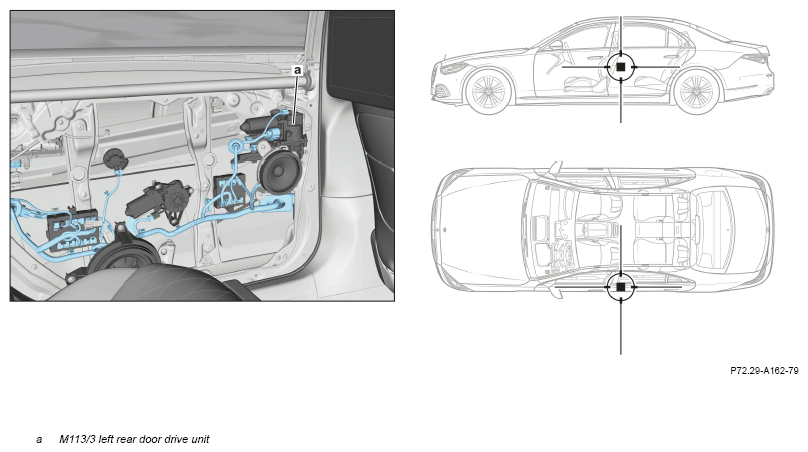

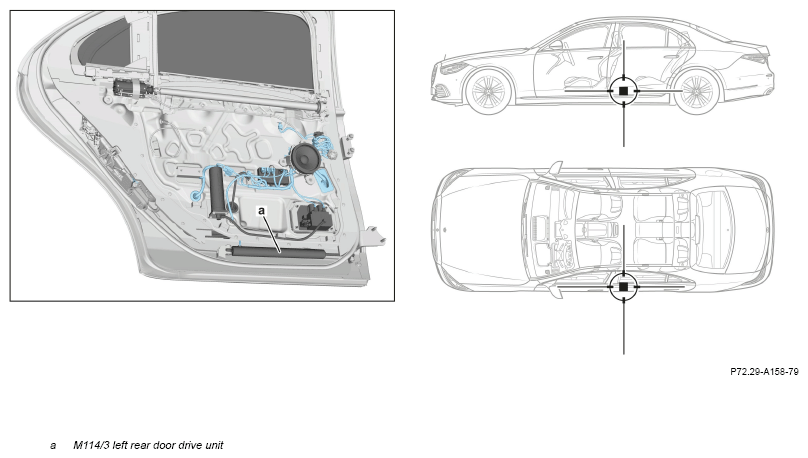

Fig 1: Left Rear Door Drive Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

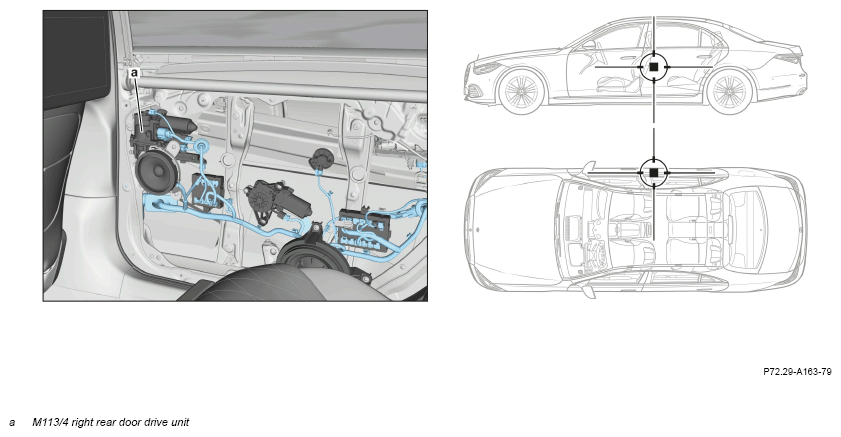

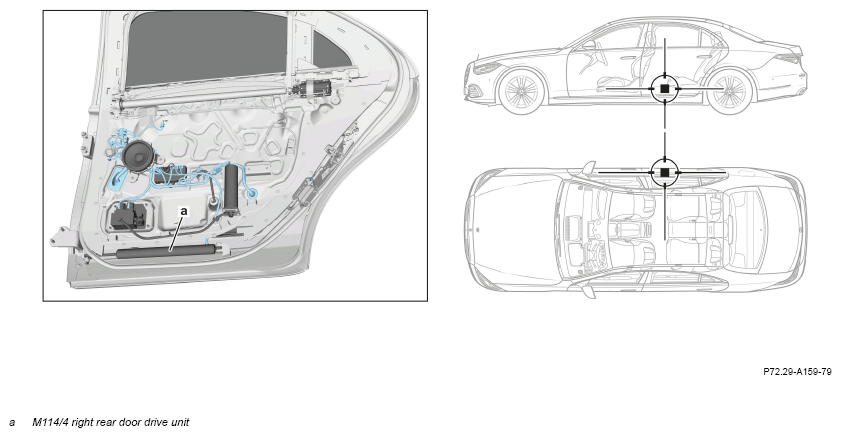

Fig 2: Right Rear Door Drive Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223
