Front Power Window Motor, Component Description - GF72.29-P-6031A

Model 223

Courtesy of MERCEDES-BENZ USA

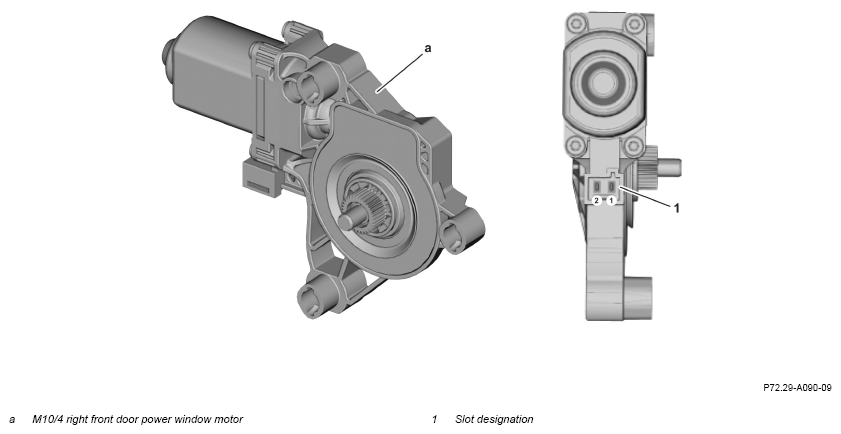

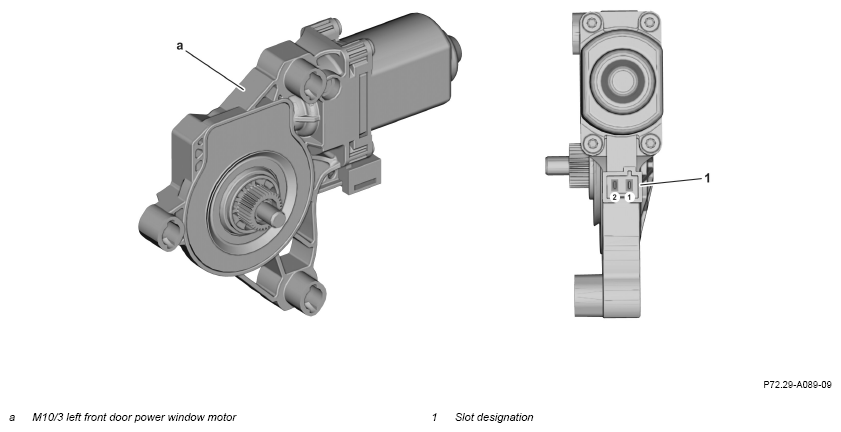

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

The numbers on the pins indicate the pin numbering of the slots.

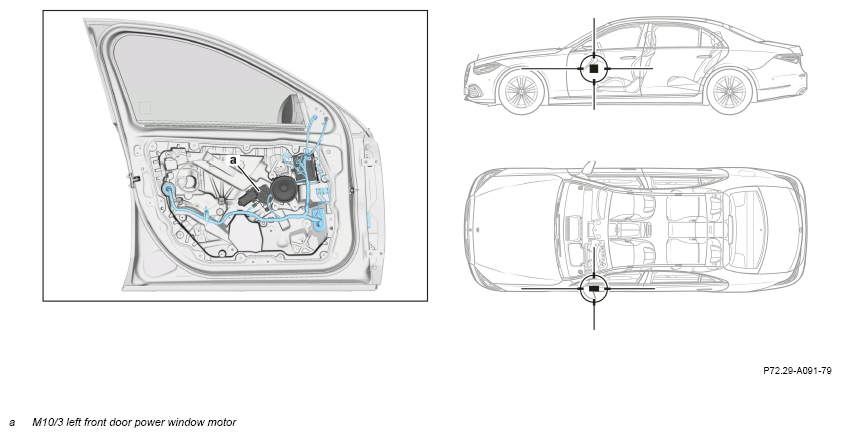

Fig 1: Left Front Power Window Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on left

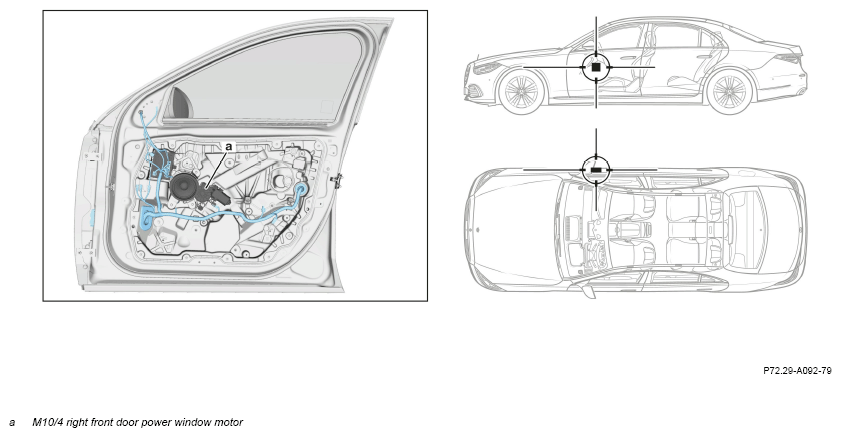

Fig 2: Right Front Power Window Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on right
