Front Door Drive Unit, Component Description - GF72.10-P-0001A

Model 223

Courtesy of MERCEDES-BENZ USA

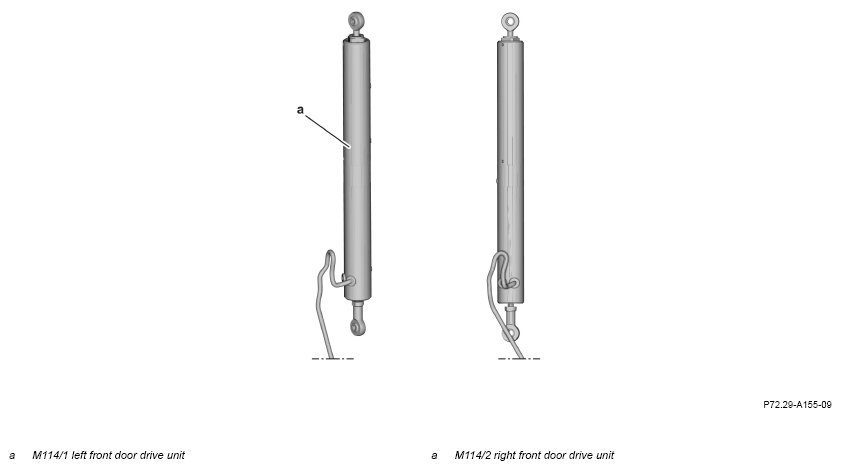

Illustration valid for model 223

The numbers on the pins indicate the pin numbering of the slots.

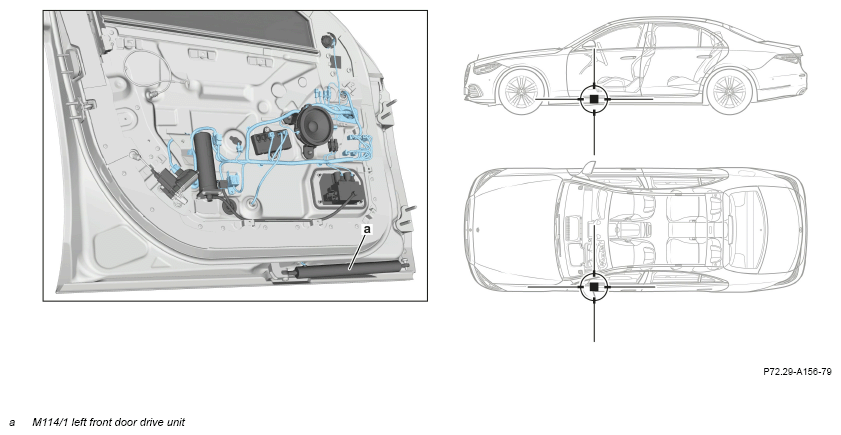

Fig 1: Left Front Door Drive Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223

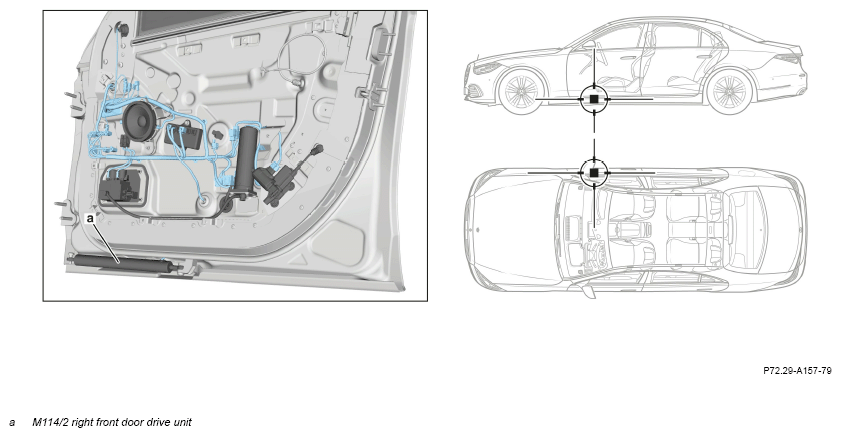

Fig 2: Right Front Door Drive Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location for model 223
