Door Drive System Control Unit, Component Description - GF72.40-P-2124A

Model 223

Courtesy of MERCEDES-BENZ USA

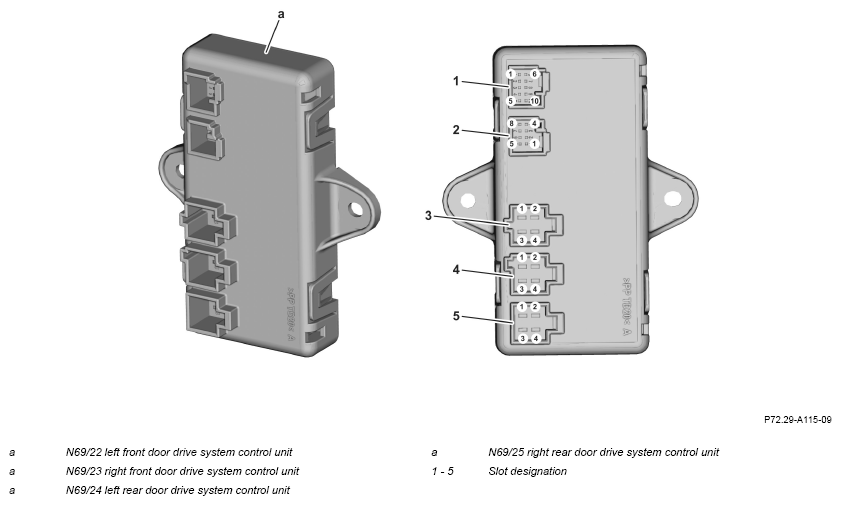

The numbers on the pins indicate the pin numbering of the slots.

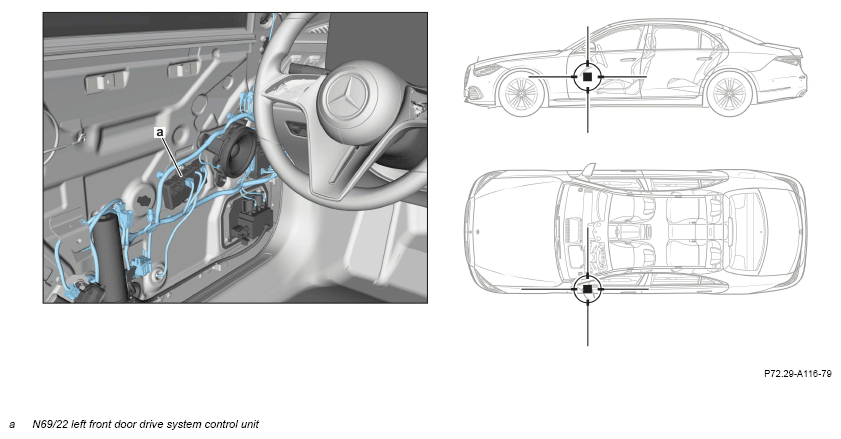

Fig 1: Left Front Door Drive System Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on left

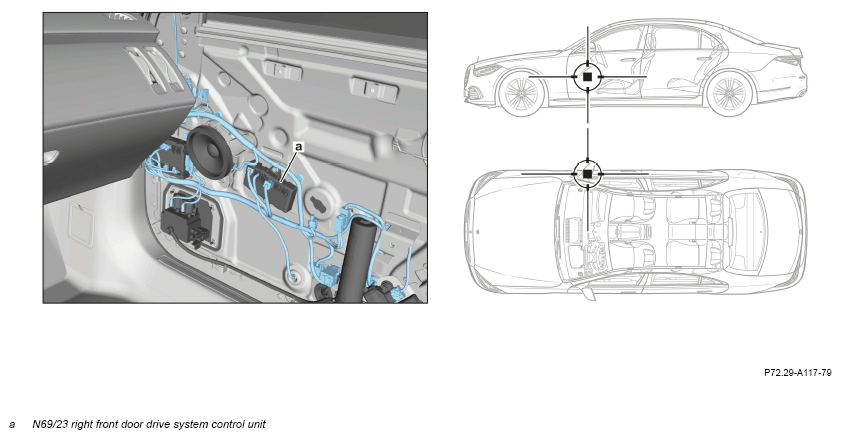

Fig 2: Right Front Door Drive System Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on right

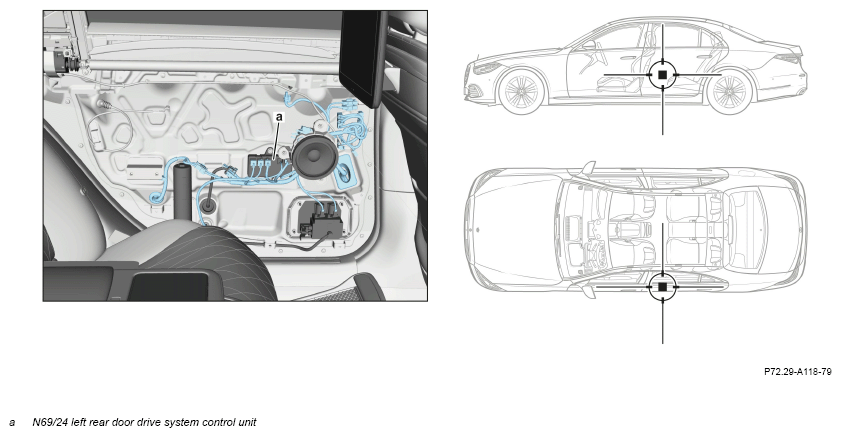

Fig 3: Left Rear Door Drive System Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on left

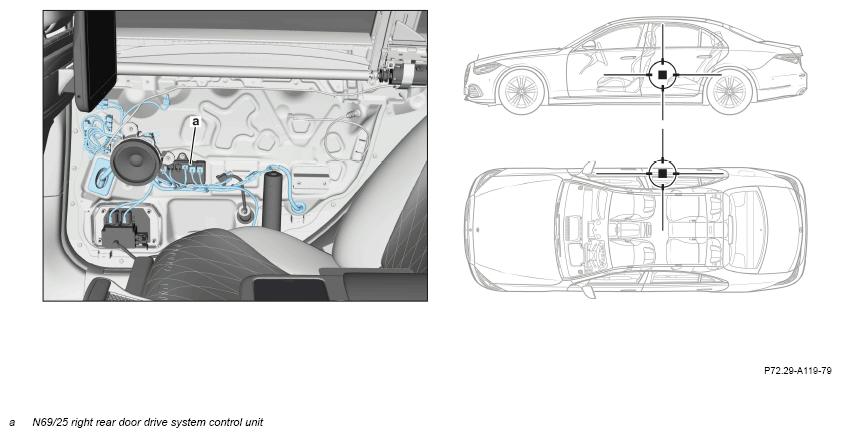

Fig 4: Right Rear Door Drive System Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on right
