Door Control Unit Component Description - GF72.29-P-2011A

Model 223

Courtesy of MERCEDES-BENZ USA

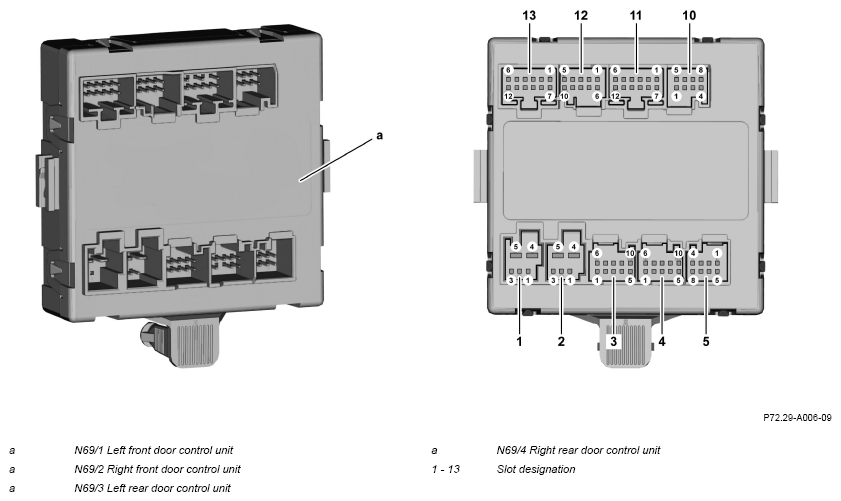

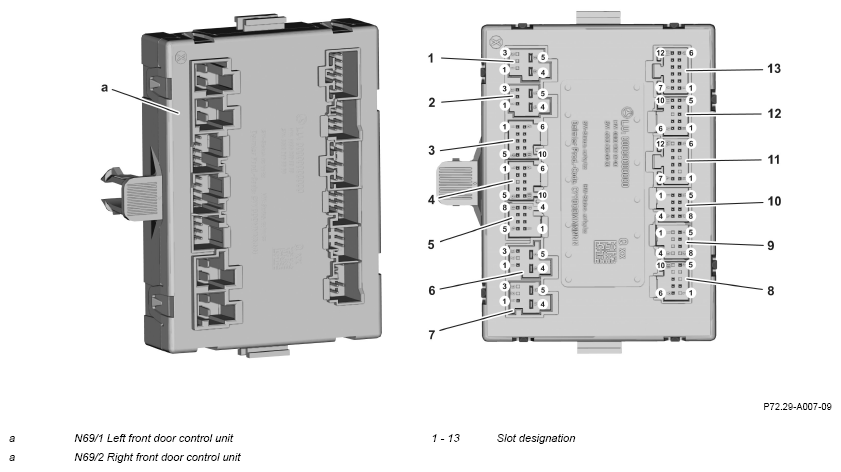

The numbers on the pins indicate the pin numbering of the slots

Courtesy of MERCEDES-BENZ USA

The numbers on the pins indicate the pin numbering of the slots

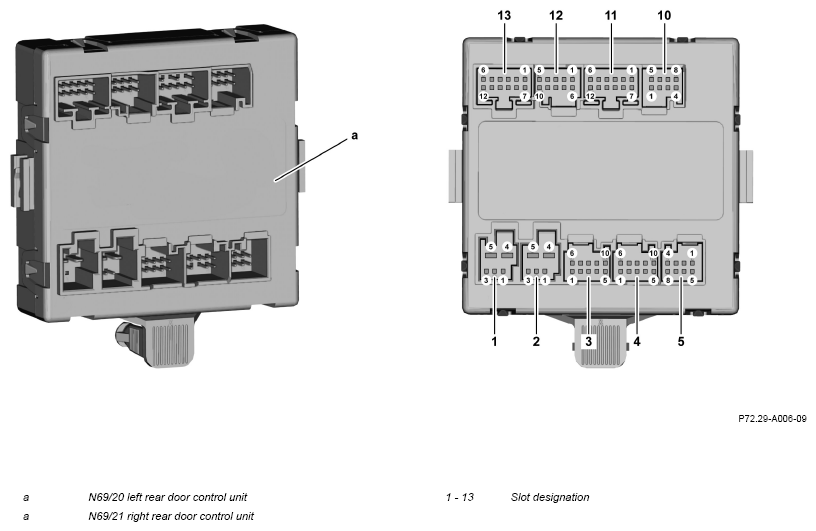

Courtesy of MERCEDES-BENZ USA

Image valid for model 223 with code 68B

The numbers on the pins indicate the pin numbering of the slots

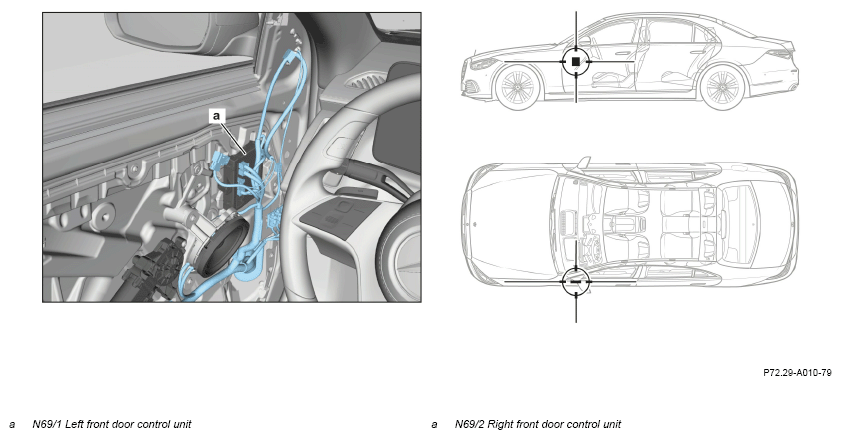

Fig 1: Left Front Door Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location

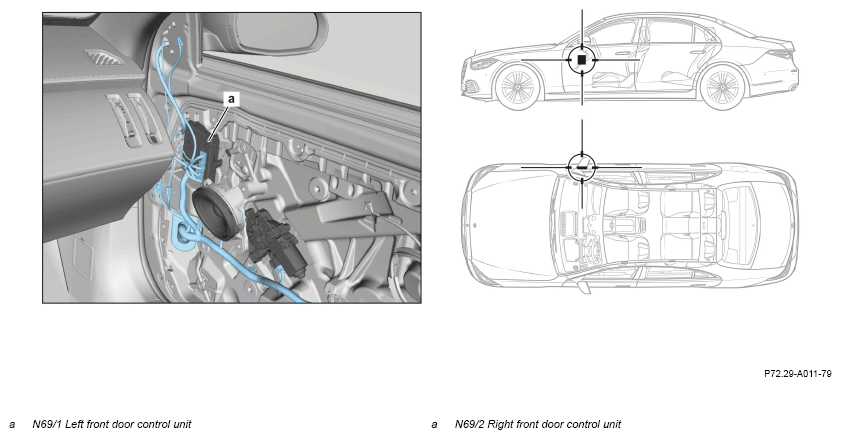

Fig 2: Right Front Door Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location

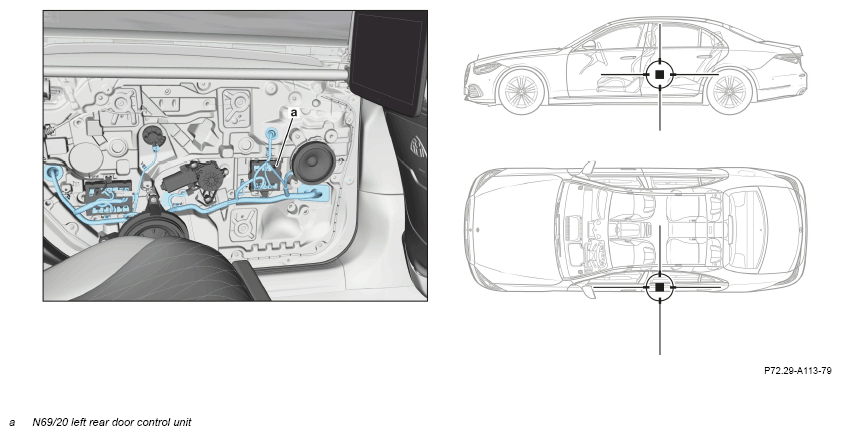

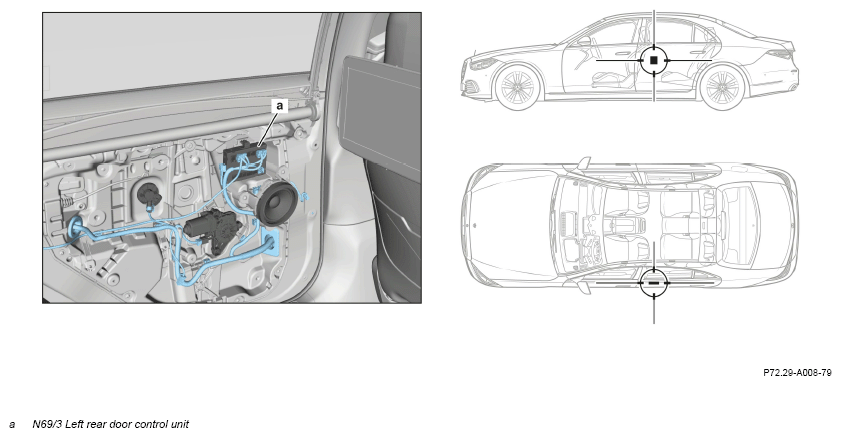

Fig 3: Left Rear Door Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on left

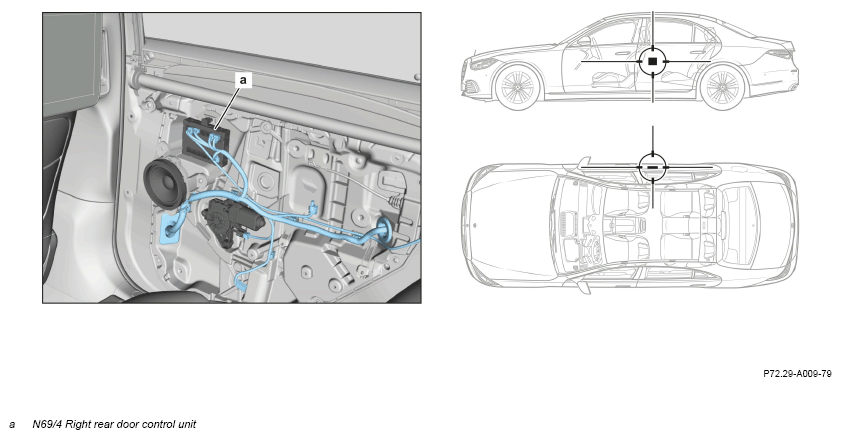

Fig 4: Right Rear Door Control Unit Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Location on right

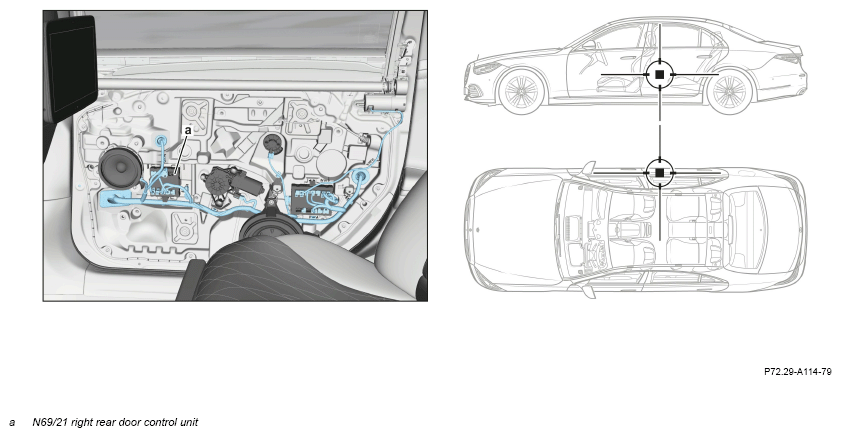

Courtesy of MERCEDES-BENZ USA

Arrangement on left in model 223 with code 68B

Courtesy of MERCEDES-BENZ USA

Arrangement on right/left in model 223 with code 68B
