Remove/Install Sun Visor - AR68.60-P-5480S
Model 223

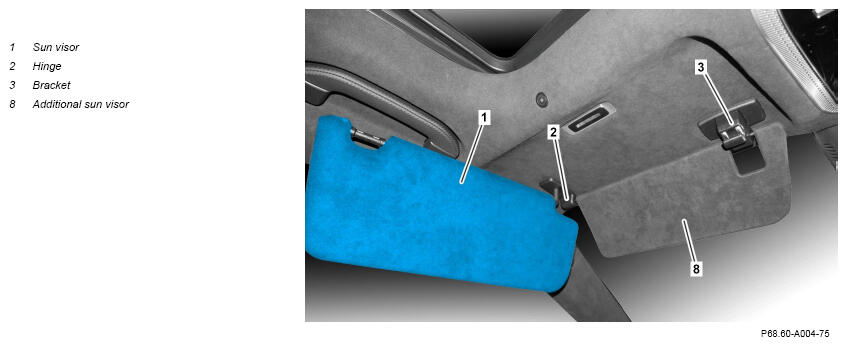

Shown with code 543 (sun visor with additional function)
Shown with code 543 (sun visor with additional function)
| Remove | |||
| 1 | Unclip sun visor (1) from bracket (3) and swivel to side | ||
| 2 | Unclip cover (6) at hinge (2) and remove. | Fig 1 | |
| 3 | Unclip cover (4) and remove. | Fig 1 | |
| 4 | Press clips (5) at bracket (3) together and remove bracket (3). | Model 223 with code 460 (Canada version) Model 223 with code 494 (US version) Model 223 with code 543 (Sun visor with additional function) |
|
| 5 | Press clips (5) at hinge (2) together and remove sun visor (1). | ||
| Install | |||
| 6 | Clip cover (6) and clip (5) into hinge (2). | ||
| 7 | Insert hinge (2) in roof paneling and clip in | ||
| 8 | Clip cover (4) and clips (5) into bracket (3). | ||
| 9 | Insert additional sun visor (8) in hinge (2) | Model 223 with code 460 (Canada version) Model 223 with code 494 (US version) Model 223 with code 543 (Sun visor with additional function) |
|
| 10 | Clip bracket (3) into roof paneling. | ||
| 11 | Clip sun visor (1) into bracket (3) |
