Remove/Install Paneling On B-Pillar - AR68.30-P-4700S

Model 223

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install
1	Move front seat to the front end position.
2	Remove front and rear door sill panels.	If the lower B-pillar trim (2) is removed.
		Long wedge	Fig 1
3	Release edge guards in the area of the B-pillar.	Ensure that edge guard is seated correctly.
4	Release seat belt end fitting.		AR91.40-P-1030-02S
		Model 223 except code 562 (Driver seat belt buckle with integrated tensioning function) except code Z07 (B7 armoring on special protection version)
		Model 223 with code 562 (Driver seat belt buckle with integrated tensioning function) except code Z07 (B7 armoring on special protection version)	AR91.40-P-1030-02SA

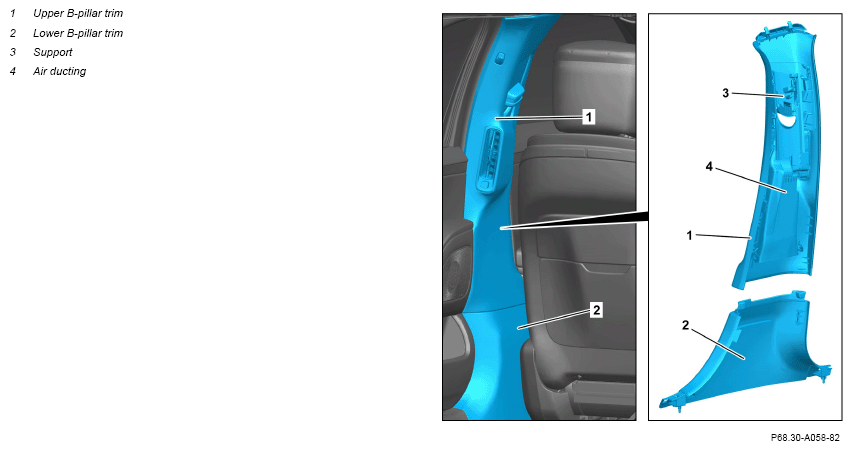

5	Unclip upper B-pillar trim (1) and extend to the roof lining.	After the upper B-pillar trim (1) and the lower B-pillar trim (2) have been installed, ensure proper seating by carrying out a downwards tensile test and a lateral pivoting test. If this is not performed, the upper pillar trim (1) and the lower B-pillar trim (2) may work loose. Position mount (3) of the upper B-pillar trim (1) on the guide on the seat belt guide bracket. Ensure that the air ducting (4) is seated correctly in the upper B-pillar trim (1).
		Long wedge	Fig 1
6	Guide seat belt through the opening on the top of the upper B-pillar trim (1).
7	Unclip lower B-pillar trim (2) and extend upward.	If required.
		Long wedge	Fig 1

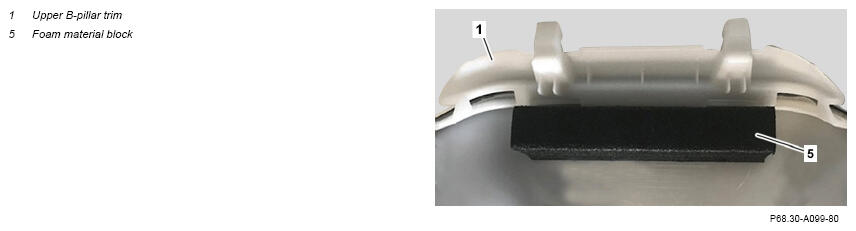

8	Place foam material block (5) as shown on the new upper B-pillar trim (1).	When replacing upper B-pillar trim (1). The foam material block (5) must also be ordered in the XENTRY Portal parts information.
9	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)
