Remove/Install Paneling On A-Pillar - AR68.30-P-4050S

Model 223

Courtesy of MERCEDES-BENZ USA

Shown except code (Z07 B7 armoring for special protection version)

Shown with code Z07 (B7 armoring for special protection version)

Courtesy of MERCEDES-BENZ USA

Notice	Notes on avoiding damage to windows installed in special high-security vehicles	Model 223 with code Z07 (B7 armoring on special protection version)	AH67.00-P-0003-01FB
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

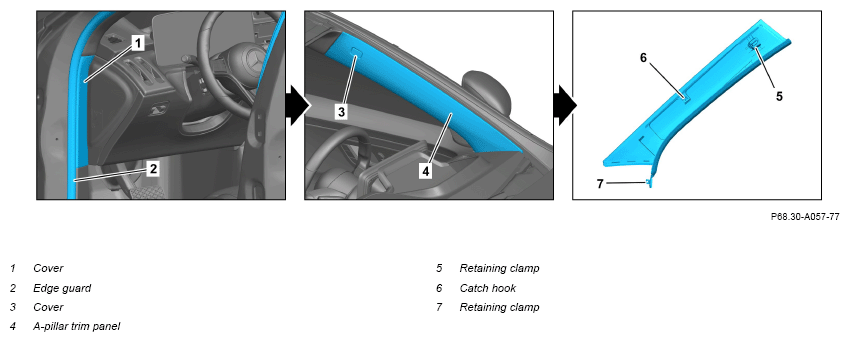

1	Unclip cover (1).	Model 223 except code Z07 (B7 armoring on special protection version) Make sure that the retaining clamp (7) is seated correctly.
		Dismantling tool	Fig 1
2	Detach edge guard (2) in area of A-pillar trim (4).	Ensure that edge guard (2) is seated correctly.
3	Unclip cover (3).	Dismantling tool	Fig 1

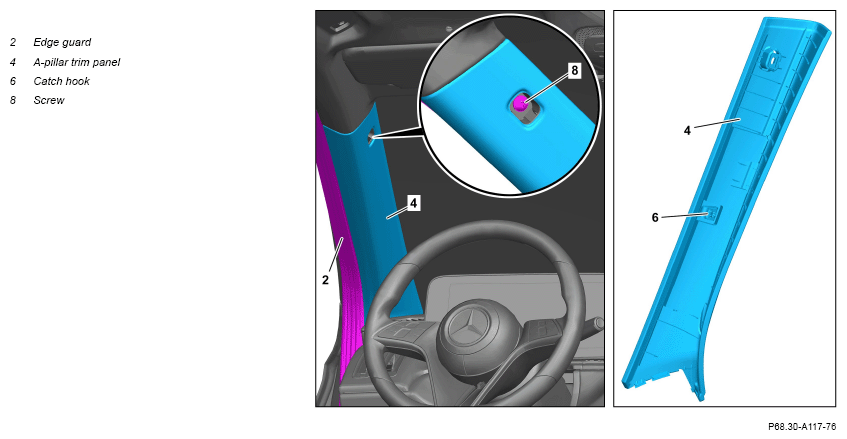

4	Remove screw (8).	Model 223 with code Z07 (B7 armoring on special protection version)
		Screw/bolt, A-pillar trim to bracket	*BA68.30-P-1005-01E
5.1	Unclip A-pillar trim (4) at retaining clip (5) and at catch hook (6) and slightly swivel inwards at the top.	Model 223 except code Z07 (B7 armoring on special protection version)
		Dismantling tool	Fig 1
5.2	Unclip A-pillar trim (4) at catch hook (6) and slightly swivel inwards.	Model 223 with code Z07 (B7 armoring on special protection version)
		Dismantling tool	Fig 1
6	Pull A-pillar trim (4) towards rear in upward direction out of instrument panel and remove.
7	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)
