Remove/Install Inside Rearview Mirror - AR68.40-P-0001S
Model 223
Shown except code (Z07 B7 armoring for special protection version)
| Risk of injury caused by irritation of the skin, eyes and respiratory system through contact or inhalation of substances contained in the mirror lens. | Wear protective gloves and safety glasses. | AS60.00-Z-0008-01R | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notice | Notes on avoiding damage to windows installed in special high-security vehicles | Model 223 with code Z07 (B7 armoring on special protection version) |
AH67.00-P-0003-01FB |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 2 | Remove overhead control panel control unit. | Model 223 with code Z07 (B7 armoring on special protection version) |
|
| AR82.20-P-1000S | |||

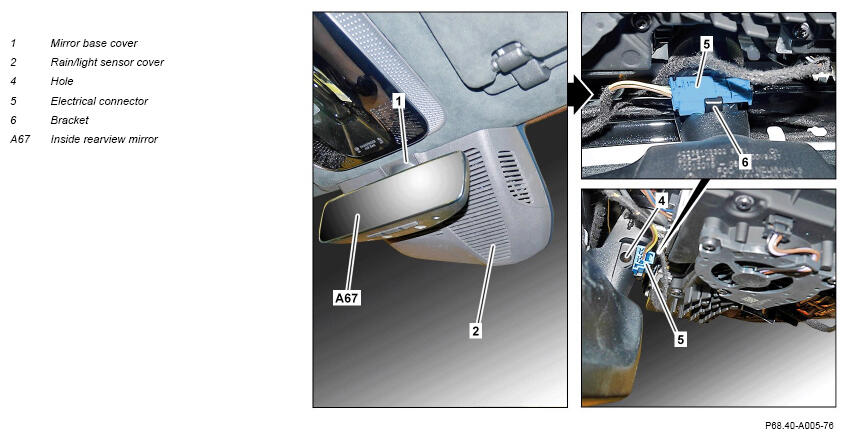

| 3 | Unclip rear mirror base cover (1) with a suitable tool and remove. | ||
| 4 | Unclip rain and light sensor cover (2) and remove. | ||
| 5 | Disconnect electrical connector (5). | ||
| 6 | Remove electrical connector (5) from the bracket (6). | ||
| 7 | Remove belt strap of inside rearview mirror (A67) at roof frame. | Model 223 with code Z07 (B7 armoring on special protection version) |
|
| 8 | Turn inside rearview mirror (A67) clockwise at the bore (4) in the mirror base with a suitable tool and remove from the mirror bracket. | ||
| 9 | Install in the reverse order. |
