Remove/Install Handle On Roof - AR68.30-P-4330S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove | |||

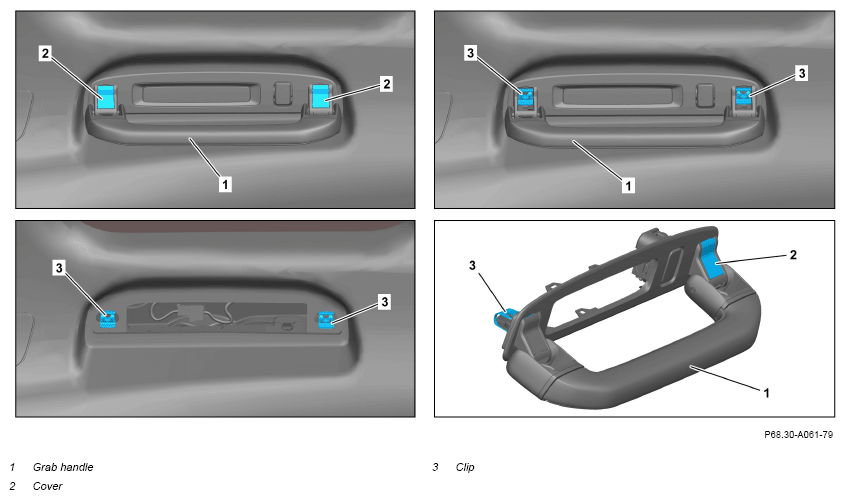

| 1 | Fold up grab handle (1). | ||
| 2 | Remove covers (2). | ||
| 3 | Press together clips (3) and remove grab handle (1). | ||
| 4 | Release and disconnect electrical connector of rear illumination at rear grab handle (1). | Model 223 with code 413 (Panoramic sliding sunroof/glass roof) |
|
| 5 | Remove clamps (3) from the body. | ||
| Install | |||
| 6 | Clip clamps (3) and covers (2) into the grab handle (1). | ||
| 7 | Connect electrical connector of rear illumination at rear grab handle (1). | Model 223 with code 413 (Panoramic sliding sunroof/glass roof) |
|
| 8 | Clip grab handle (1) into the roof. | ||
| Check | |||
| 9 | Check grab handle at roof. | AR68.30-P-4330-01FR |
