Remove/Install Rear Fender Liner - AR88.10-P-1302S

Model 223.0/1/9

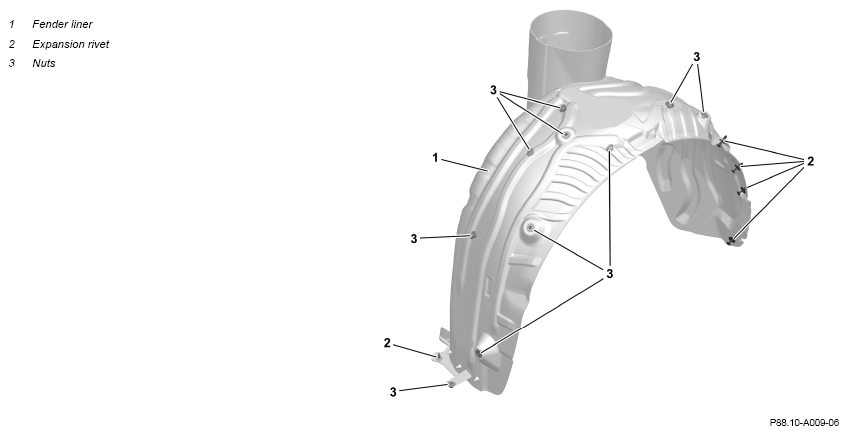

Shown on the left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle.		AR00.60-P-1006A
2	Remove expansion rivets (2).	Dismantling tool	Fig 1
3	Remove nuts (3).
4	Pull outer edge of the fender liner (1) inward out of the wheel arch lip and remove fender liner (1).
5	Install in the reverse order.

Fig 1: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
