Adjust Front Bumper - AR88.20-P-2001S
Model 223.0/1/9
Shown on model 223.0 except code 772 (AMG styling - front spoiler, side skirt)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check | |||
| 1 | Check adjustment of front bumper (1). | AR60.00-P-0900-01S | |
| Bumper to headlamp | *BE60.00-P-1005-01PA | ||
| Engine hood to bumper | *BE60.00-P-1004-01PA | ||
| Bumper to radiator trim | *BE60.00-P-1003-01PA | ||

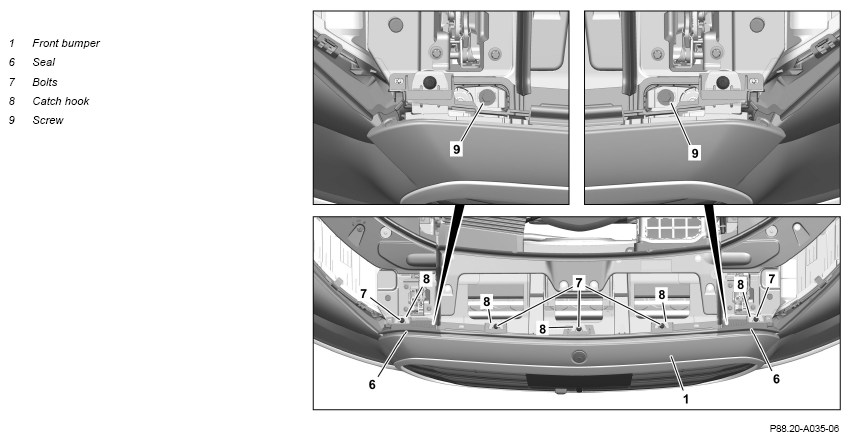

| Fig 1 | |||
| Adjust | |||
| 2 | Open hood. | ||
| 3 | Remove seals (6). | ||
| 4 | Remove screws (9) from front bumper (1). | ||
| 5 | Remove screws (7). | ||
| 6 | Release catch hooks (8) and pull front bumper (1) forward. | ||
| 7 | Close hood. | ||
| 8 | Adjust front bumper (1) relative to the hood and headlamps. | AR60.00-P-0900-01S | |
| Bumper to headlamp | *BE60.00-P-1005-01PA | ||
| Engine hood to bumper | *BE60.00-P-1004-01PA | ||
| Bumper to radiator trim | *BE60.00-P-1003-01PA | ||
| Fig 1 | |||
| 9 | Open hood. | ||
| 10 | Tighten bolts (7). | ||
| 11 | Tighten screws (9). | ||
| 12 | Install seals (6). | ||
| 13 | Close hood. | ||
| Calibrate | |||
| 14 | Calibrate all the cameras in the 360° camera system using the vehicle diagnosis system. | Model 223.0/1/9 with code 501 (360° camera) |
|
| AD00.00-P-2000-06FR | |||
| 15 | Calibrate collision warning system radar sensor using diagnostic system. | Model 223.0/1/9 with code 239 (Adaptive cruise control Pro (DISTRONIC PRO)) Model 223.0/1/9 with code 258 (Collision warning system with active brake application FCW-Stop) |
|
| AD00.00-P-2000-06FR | |||
| 16 | Calibrate front long-range radar sensor with diagnostic system. | Model 223.0/1/9 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) |
|
| AD00.00-P-2000-06FR | |||
| 17 | Calibrate front short-range radar using diagnostic system. | Model 223.0/1/9 with code 233 (Adaptive cruise control Plus (DISTRONIC PLUS)) Model 223.0/1/9 with code 507 (Premium remote-controlled parking) |
|
| AD00.00-P-2000-06FR |
GAP DIMENSIONS
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BE60.00-P-1003-01PA | Bumper to radiator trim | Dimension "C" | mm | 0 (+0, 5) |
| For picture, see | AR60.00-P-0900-01S | |||
GAP DIMENSIONS
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BE60.00-P-1004-01PA | Engine hood to bumper | Dimension "D" | mm | 3, 5 (±0, 5) |
| Dimension "D1" | mm | 3, 5 (±1) | ||
| For picture, see | AR60.00-P-0900-01S | |||
GAP DIMENSIONS
| Number | Designation | Model 223 | ||
|---|---|---|---|---|
| BE60.00-P-1005-01PA | Bumper to headlamp | Dimension "E" | mm | 2 (±1) |
| Dimension "E1" | mm | 3 (-1, 5/+1) | ||
| For picture, see | AR60.00-P-0900-01S | |||
