Remove/Install Upper Trim Strip On Door Trim - AR72.10-P-0008S

Model 223

MODIFICATION NOTES

28.09.2021

Remove upper trim strip of armrest, added.

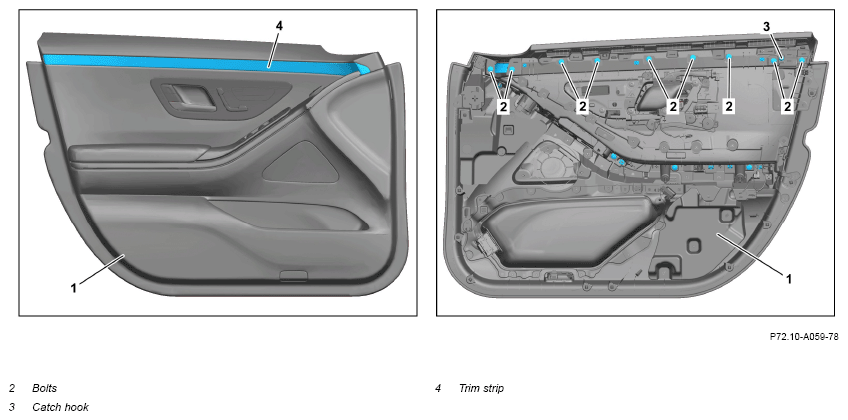

Operation step 1

Courtesy of MERCEDES-BENZ USA

Shown on left front door

	Remove/install
1	Remove upper trim strip of armrest.		AR72.1U-P-UU19S
2	Remove screws (2).
3	Release catch hook (3).
4	Remove trim strip (4).	Long wedge	Fig 1
5	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
