Remove/Install Sealing Frame Of Front Door - AR72.10-P-0011SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
Notice	Notes on removing adhesive residues and foils on paint and metal surfaces with surface conditioning disks		AH00.00-P-0013-01AK
	Remove
1	Completely open respective front door (2).
2	Starting at bottom, detach sealing frame (1).
3	Remove adhesive residue from front door (2) using a surface conditioning disk and clean bonding surface.	The bonding surface must be free of dust and grease. Use surface conditioning disk with a diameter of 100 mm.
		Cleaner	*BR00.45-Z-1025-04A
	Install

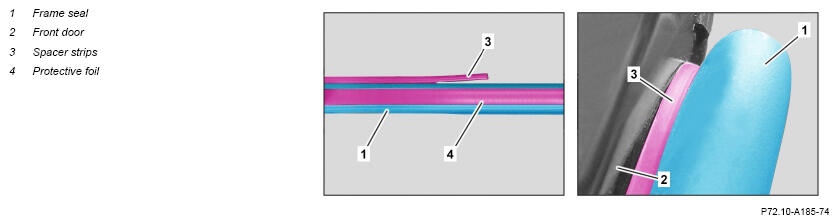

4	Detach approx. 2 cm of spacer strip (3) at end of new sealing frame (1).	Detach spacer strip (3) at end of new sealing frame (1) where insert is located.

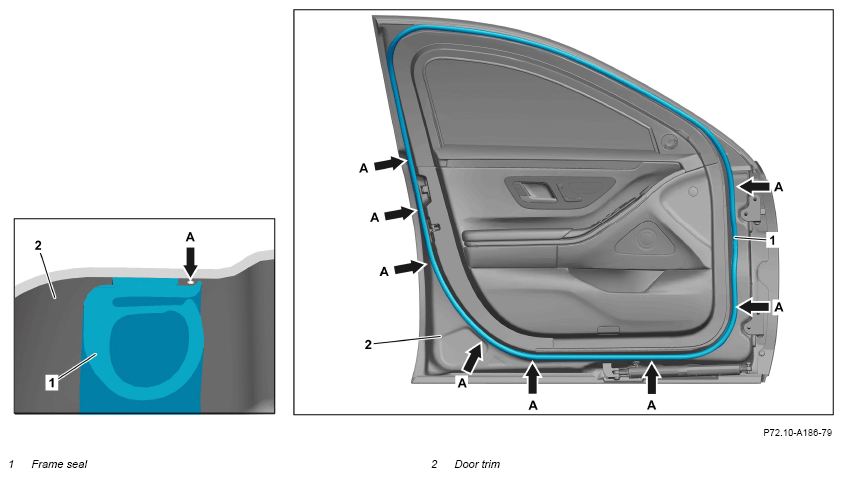

5	Remove protective film (4) in stages and attach sealing frame (1) to inner door panel, starting in the center of the lower door edge.	Glue on sealing frame (1) first with end where insert is located. Align sealing frame (1) with assembly points (arrows A), as shown, underneath the beltline. Spacer strip (3) of sealing frame (1) must be in contact with window frame in bonding area without gaps.
6	Determine protrusion of sealing frame (1) at lower door edge and cut off.	Cut off protrusion so that there is no gap between the two ends of sealing frame (1).
7	Connect both ends of sealing frame (1).
8	Firmly roll on sealing frame (1) with roller.	Roller	Fig 1
9	Completely remove spacer strip (3) from sealing frame (1) starting at detached end.
10	Place sealing lip of sealing frame (1) over window frame lining and the trim on the door lock.

Fig 1: Identifying Roller (168 589 05 63 00)

Courtesy of MERCEDES-BENZ USA
