Remove/Install Rear Door Power Closing Actuator Motor - AR72.30-P-0003SG

Model 223

with code Z07 (B7 armoring on special protection version)

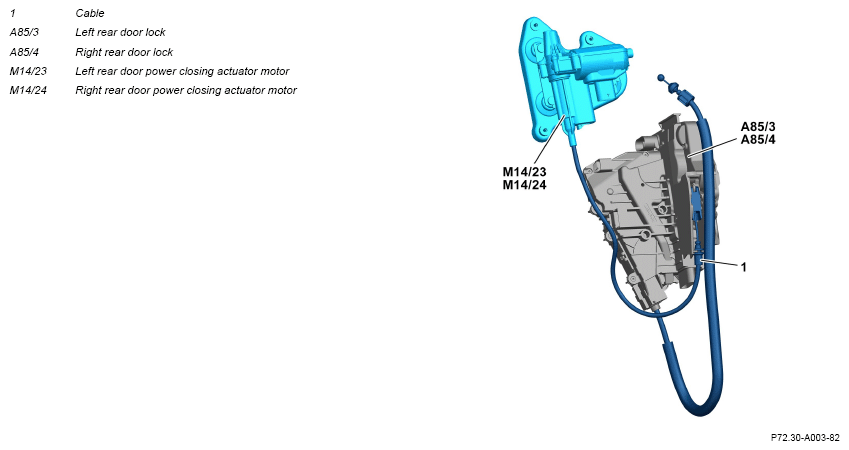

G16192192Courtesy of MERCEDES-BENZ USA
REMOVINGINSTALLING Remove/install
1 Remove corresponding rear door lock (A85/3, A85/4).   AR72.12-P-2511SG
    IMPORTANT Rear door power closing actuator motor (M14/23, M14/24) is an integral part of the removal of rear door lock (A85/3, A85/4).
2 Install in the reverse order
