Remove/Install Outer Rear Door Handle - AR72.12-P-2410SA
Model 223
except code 889 (KEYLESS-GO)
except code 896 (Vehicle access and authorization via smartphone)
except code Z07 (B7 armoring on special protection version)
Model 223
with code Z07 (B7 armoring on special protection version)
| Remove/install | |||

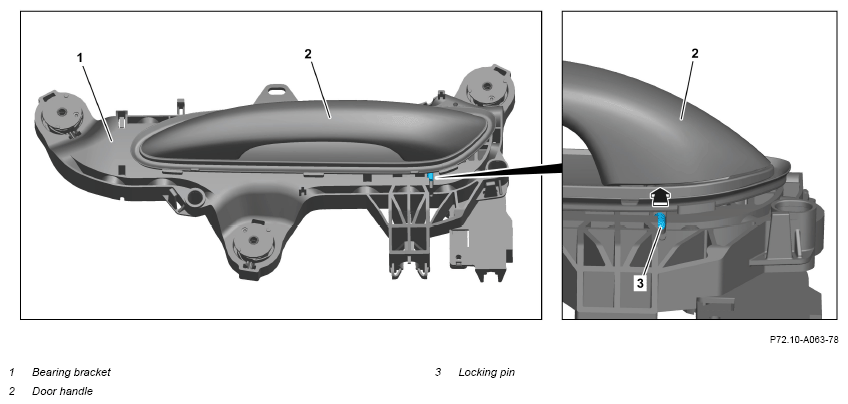

| 1 | Remove bearing bracket (1). | AR72.12-P-4012S | |
| Model 223 except code 889 (KEYLESS-GO) except code 896 (Vehicle access and authorization via smartphone) except code Z07 (B7 armoring on special protection version) |
|||
| Model 223 with code Z07 (B7 armoring on special protection version) |
AR72.12-P-4012SG | ||
| 2 | From underneath, press out locking pin (3) upwards (arrow). | ||
| 3 | Remove door handle (2). | ||
| 4 | Install in the reverse order. |
