Remove/Install Outer Rear Door Handle - AR72.12-P-2410S

Model 223

with code 889 (KEYLESS-GO)

except code Z07 (B7 armoring on special protection version)

Model 223

with code 896 (Vehicle access and authorization via smartphone)

except code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove/install

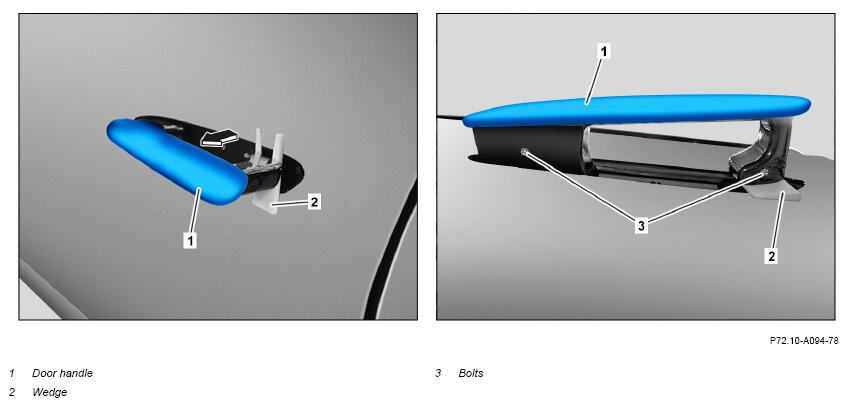

1	Pull door handle (1) outwards (arrow).
2	Attach wedge (2) from underneath between door and door handle (1).	Attach tip of wedge (2) in notch at bottom of door handle (1). Door handle (1) will otherwise not be locked in place.
		Side marking "L" or "R" of wedge (2) must point outwards.
		Wedge (2) is an integral part of new handle (1).
3	Remove screws (3) and remove door handle (1) until electrical connector is accessible.
4	Release and disconnect electrical connector.
5	Remove door handle (1).
6	Install in the reverse order.
