Remove/Install Front Door Bearing Bracket Installation Frame - AR72.10-P-4014SG

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove corresponding front door handle bearing bracket.		AR72.10-P-4012SG
2	Release installation frame (1) and remove from front door.	Installation frame (1) is bonded.
		Long wedge	Fig 1
3	Remove adhesive residue from front door.
	Install

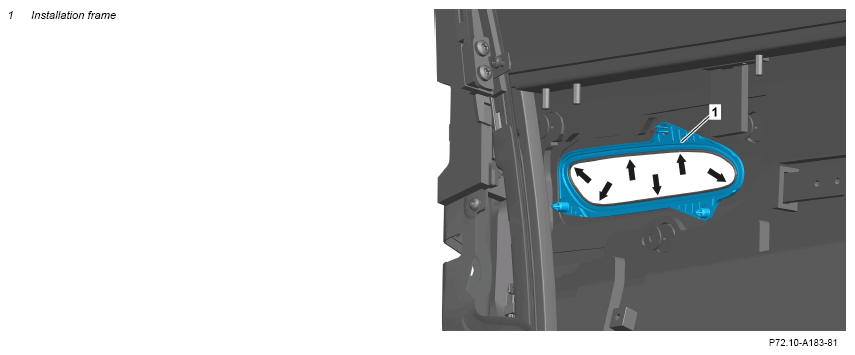

4	Position new installation frame (1) on front door (arrows).	Installation frame (1) is used to align bearing bracket.
		Installation frame (1) must be at same distance from front door cutout all around.
5	Install corresponding front door handle bearing bracket.		AR72.10-P-4012SG
		Align bearing bracket quickly. Otherwise installation frame (1) will be bonded and its position can no longer be changed.
		If there is a problem: ↓ Remove bearing bracket and realign installation frame (1). Then reinstall bearing bracket.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
