Remove/Install Armrest Trim Strips - AR72.12-P-1716SG
Model 223
with code Z07 (B7 armoring on special protection version)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove armrest at rear door. | AR72.12-P-1020SG | |
| 2 | Disconnect electrical connector at button group for rear door power window (S21/3, S21/4). | Model 223 with code Z07 (B7 armoring on special protection version) with code Z13 (Left rear power window with special protection) Model 223 with code Z07 (B7 armoring on special protection version) with code Z14 (Right rear power window with special protection) |
|

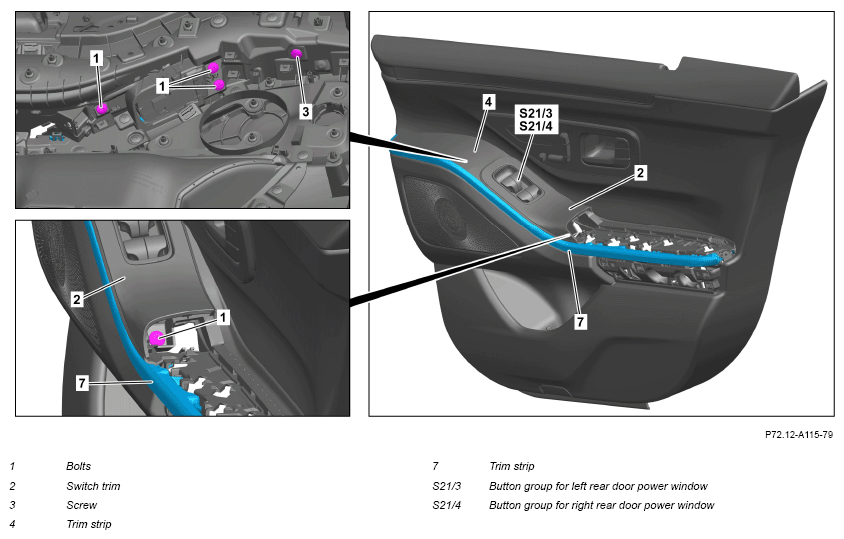

| 3 | Unscrew screws (1) and unclip switch pod (2) with button group for rear door power window (S21/3, S21/4). | Fig 1 | |
| 4 | Remove screw (3). | ||
| 5 | Remove trim strip (4). | Fig 1 | |
| 6 | Remove coupling (5) from light-guiding element. | Model 223 up to model year 2021 with code 891 (Premium ambiance illumination) with code Z07 (B7 armoring on special protection version) |
|
| AR82.20-P-0003-01S | |||
Cutter |
|||

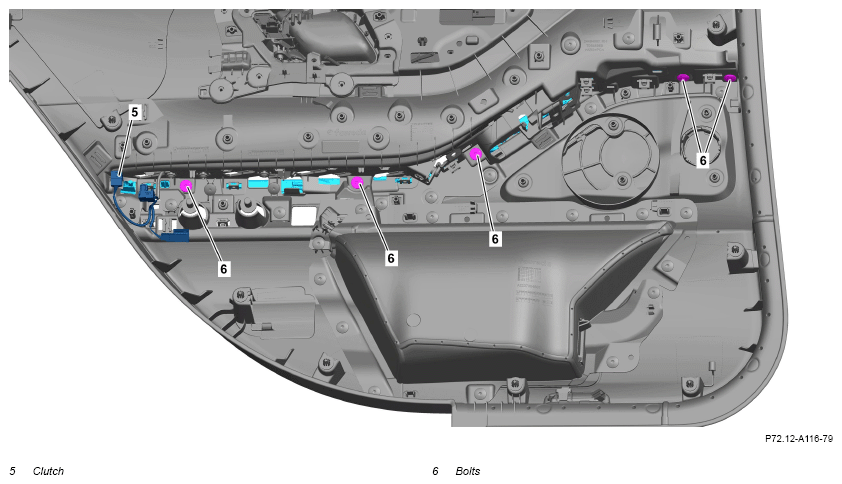

| 7 | Unscrew screws (6) and remove trim strip (7). | Fig 1 | |
| 8 | Install in the reverse order. |
