Wax Drive Unit - AP72.00-P-7255S

Model 223

with code Z07 (B7 armoring on special protection version)

Courtesy of MERCEDES-BENZ USA

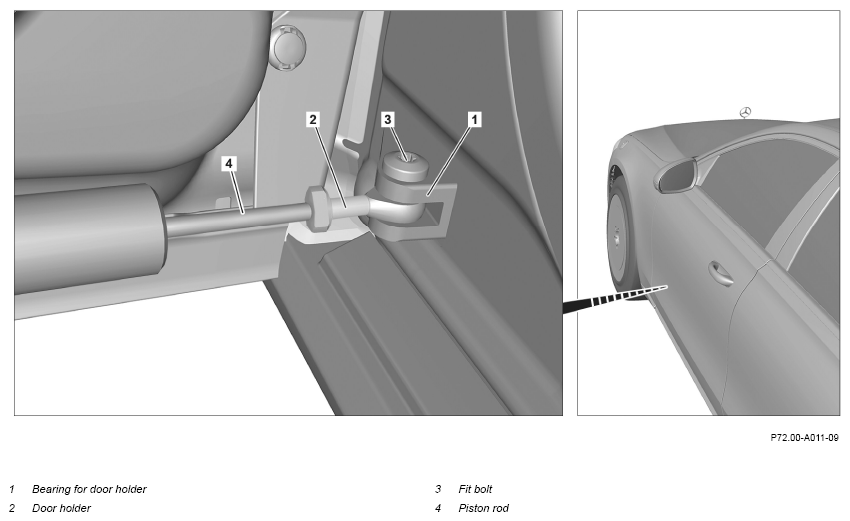

Shown on left front door on model 223.179 with code Z07 (Highest protection)

	Risk of explosion  from pressurized spray cans	Protect cans from direct sunlight and temperatures above 50°C	AS00.00-Z-0015-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Preparatory activity
1	Park vehicle on level, horizontal surface.	Make sure that there is sufficient clearance in the door opening area. Otherwise the body can be damaged.
2	Open left front door, right front door and rear doors.
	Clean
3	Clean all bearings for door holders (1) using a suitable cleaner.
	Wax
	Risk of explosion and poisoning  caused by solvent vapors and gasses. Risk of injury  to skin and eyes when working with anticorrosion agents	Never spray corrosion protection on flames or hot, glowing objects and keep them well away from all potential sources of ignition. Use them only in well-ventilated rooms; wear respiratory protection.	AS97.00-Z-0001-01A
4	Spray on wax at all bearings for door holders (1).	Ensure that no wax enters the working area of the piston rod (4). Damage can otherwise occur. Spray wax only under contact surfaces of door holders (2) and fit screws (3) at bearings for door holders (1) in a thin layer. Cover surrounding area to protect against splash spots and clean with suitable cleaner in case of soiling. Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
	Finishing activity
5	Close left front door, right front door and rear doors.
