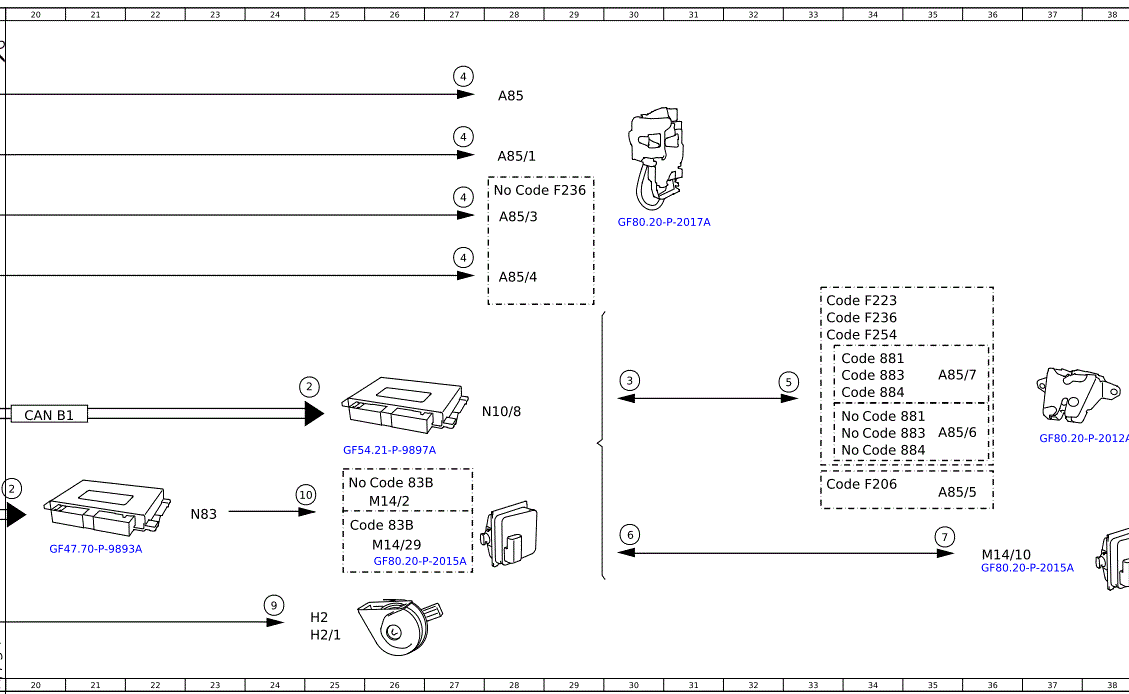

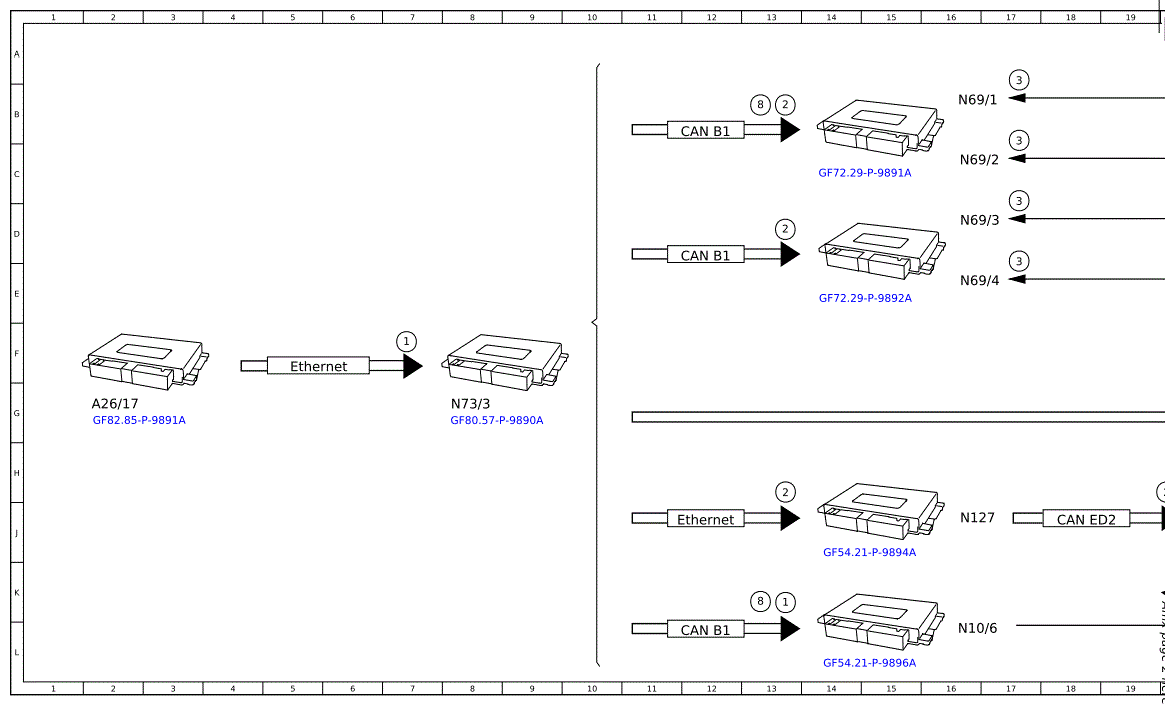

Function Schematic For Unlocking/Locking Vehicle Through Central Locking System - PE80.20-P-2501-97C
Model 206, 214, 223, 236, 254
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Acoustic locking feedback, status | 13K |
| 1 | Acoustic locking feedback, status | 7F |
| 10 | Socket flap central locking system actuator, actuation | 24H |
| 2 | Lock/unlock central locking, request | 25G |
| 2 | Lock/unlock central locking, request | 13D |
| 2 | Lock/unlock central locking, request | 13H |
| 2 | Lock/unlock central locking, request | 24H |
| 3 | Main locking position microswitch, status | 30G |
| 3 | Main locking position microswitch, status | 17A |
| 3 | Main locking position microswitch, status | 17C |
| 3 | Main locking position microswitch, status | 17D |
| 3 | Main locking position microswitch, status | 17E |
| 4 | CL [ZV] motor, actuation | 27A |
| 4 | CL [ZV] motor, actuation | 27C |
| 4 | CL [ZV] motor, actuation | 27D |
| 4 | CL [ZV] motor, actuation | 27E |
| 5 | Trunk lid/liftgate lock motor, actuation | 33G |
| 6 | Tank cap central locking actuator, status | 30J |
| 7 | Tank cap central locking actuator, actuation | 35J |
| 8 | Turn signal confirmation, request | 13K |
| 8 | Turn signal confirmation, request | 13B |
| 9 | Fanfare horns, actuation | 24K |
| A26/17 | Head unit | 2G |
| A85 | Driver door lock | 28B |
| A85/1 | Front passenger door lock | 28C |
| A85/3 | Left rear door lock | 28D |
| A85/4 | Right rear door lock | 28E |
| A85/5 | Trunk lid/liftgate lock | 35H |
| A85/6 | Trunk lid/liftgate lock | 35G |
| A85/7 | Trunk lid/liftgate lock | 35F |
| CAN B1 | CAN 1 for vehicle interior | 12L |
| CAN B1 | CAN 1 for vehicle interior | 20G |
| CAN B1 | CAN 1 for vehicle interior | 12D |
| CAN B1 | CAN 1 for vehicle interior | 12B |
| CAN ED2 | CAN for energy management | 18J |
| Code 83B | DC charging function | 25J |
| Code 83B | DC charging function | 26H |
| Code 881 | Remote trunk closing | 33F |
| Code 881 | Remote trunk closing | 34G |
| Code 883 | Power closing | 34G |
| Code 883 | Power closing | 33G |
| Code 884 | Trunk lid auxiliary lock | 34H |
| Code 884 | Trunk lid auxiliary lock | 33G |
| Code F206 | Model series 206 | 33H |
| Code F223 | Model series 223 | 33E |
| Code F236 | Model series 236 | 33F |
| Code F236 | Model series 236 | 28C |
| Code F254 | Model series 254 | 33F |
| Ethernet | Ethernet | 5F |
| Ethernet | Ethernet | 12J |
| H2 | Horn | 25L |
| H2/1 | Horn | 25L |
| M14/10 | Fuel filler flap CL [ZV] motor | 36K |
| M14/2 | Socket flap central locking system actuator | 26J |
| M14/2 | Socket flap central locking system actuator | 26J |
| M14/29 | Front SAM control unit | 16L |
| N10/6 | Rear SAM control unit | 28G |
| N10/8 | Rear SAM control unit | 16J |
| N69/1 | Driver door control unit | 16B |
| N69/2 | Front passenger door control unit | 16C |
| N69/3 | Left rear door control unit | 16D |
| N69/4 | Right rear door control unit | 16E |
| N73/3 | Electronic ignition switch control unit | 8G |
| N83 | Alternating current charger for high-voltage battery | 23J |
