Remove/Install Electronic Ignition Lock Control Unit - AR80.57-P-0003S
Model 223
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Disconnect ground line for battery of 12 V onboard electrical system. | AR54.10-P-0051S | |

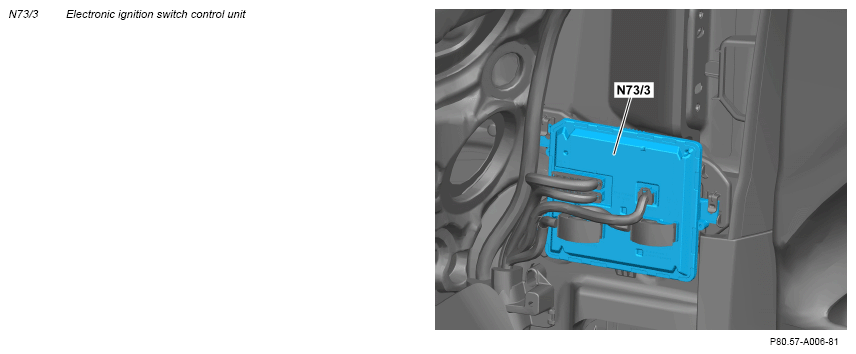

| 2 | Unclip front passenger side door sill. | Fig 1 | |
| 3 | Remove lower trim of instrument panel on front passenger side. | AR68.10-P-1502S | |
| 4 | Push floor covering to side until electrical connectors of electronic ignition lock control unit (N73/3) can be disconnected. | ||
| 5 | Disconnect electrical connectors at electronic ignition lock control unit (N73/3). | ||
| 6 | Unclip electronic ignition lock control unit (N73/3) and remove. | ||
| 7 | Install in the reverse order. | ||
| 8 | Perform commissioning of electronic ignition lock control unit (N73/3). | ||
| AD00.00-P-2000-06FR | |||
