Trunk Lid Lock, Component Description - GF80.20-P-6034A

Model 223

G16232079

Courtesy of MERCEDES-BENZ USA

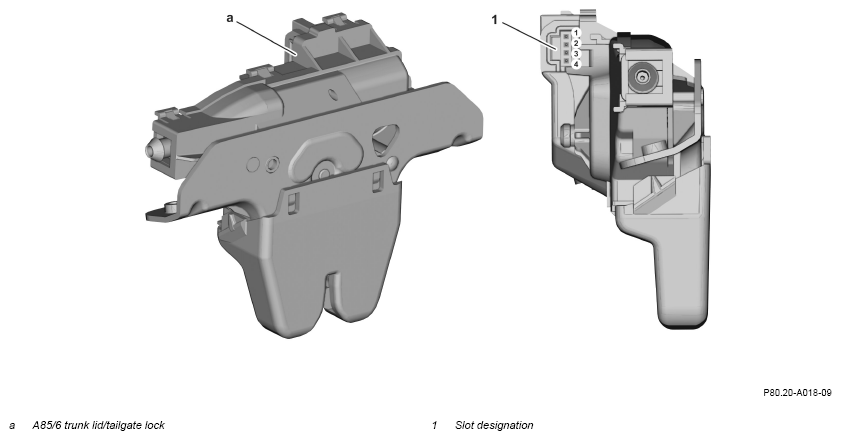

The numbers on the pins indicate the pin numbering of the slots.

G16232080

Courtesy of MERCEDES-BENZ USA

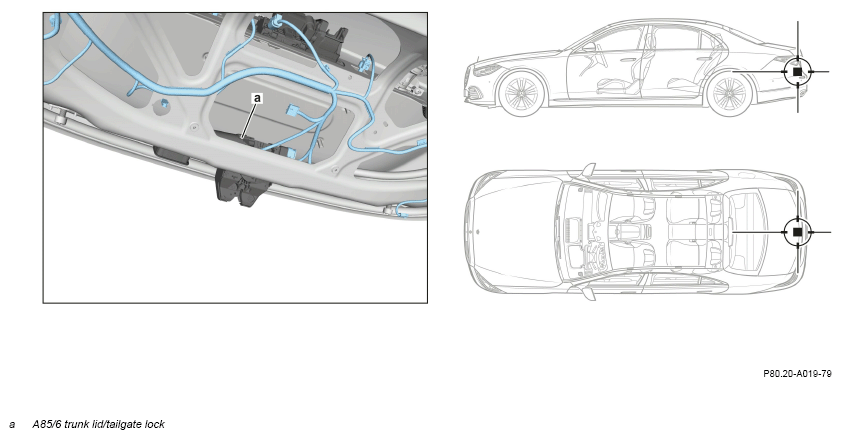

Location
