Trunk Lid Control Unit, Component Description - GF80.20-P-6050A

Model 223

with code 881 (Remote boot-lid closing)

G16232081Courtesy of MERCEDES-BENZ USA

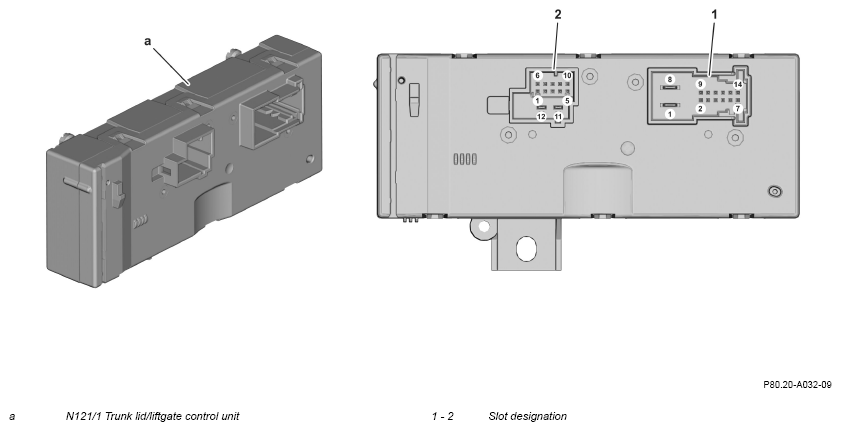

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

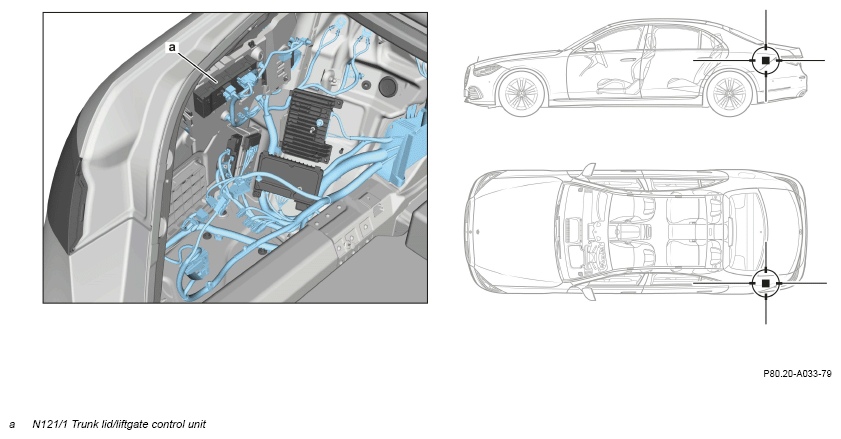

Fig 1: Trunk Lid Control Unit Components Location - Model 223 With Code 881
G16232082Courtesy of MERCEDES-BENZ USA

Location
