Remote Trunk Lid/Tailgate Lock, Component Description - GF80.20-P-0013A

Model 223

with code 881 (Remote boot-lid closing)

with code 884 (Additional boot-lid lock)

Model 223

with code 884 (Additional boot-lid lock)

except code 881 (Remote boot-lid closing)

Courtesy of MERCEDES-BENZ USA

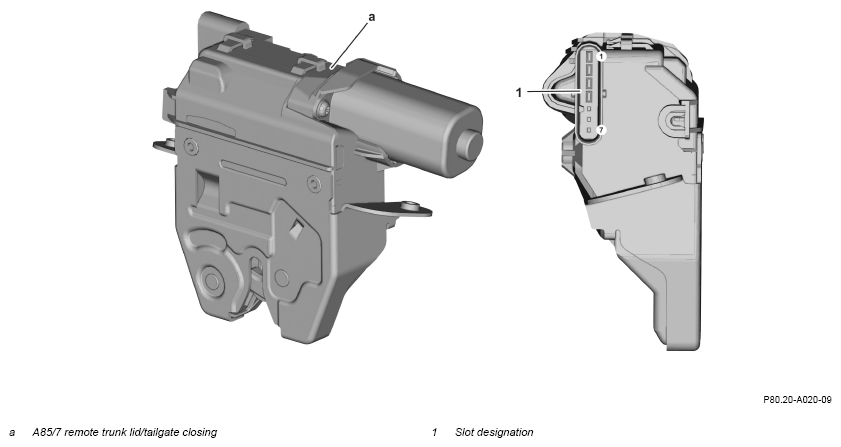

The numbers on the pins indicate the pin numbering of the slots.

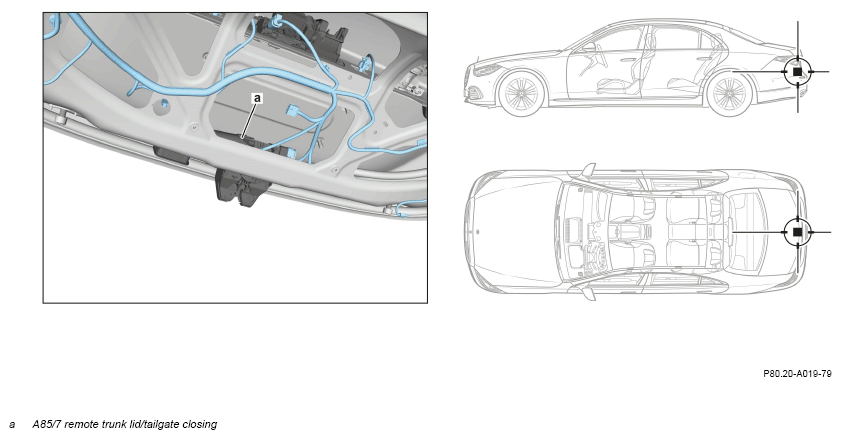

Fig 1: Remote Trunk Closing Components Location - Model 223 With Code 884 With And W/O Code 881

Courtesy of MERCEDES-BENZ USA

Location
