Rear Switching Module, Component Description - GF80.61-P-4110A

Model 223

with code 871 (Sensor system for trunk lid opening/closing)

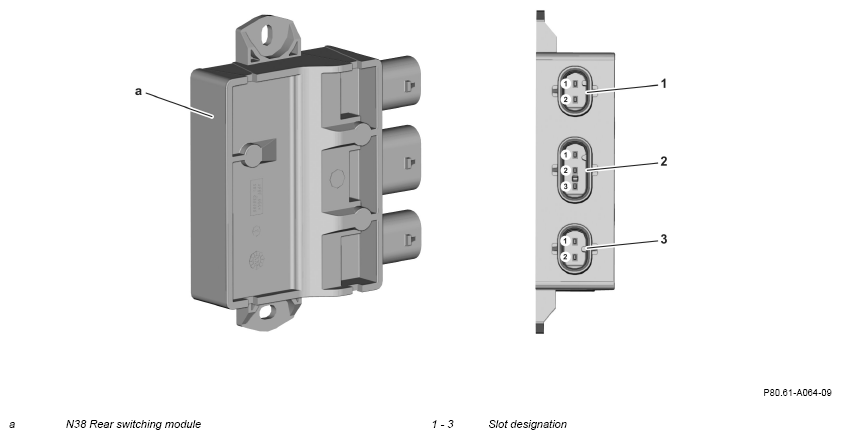

G16232108Courtesy of MERCEDES-BENZ USA

IMPORTANT The numbers on the pins indicate the pin numbering of the slots.

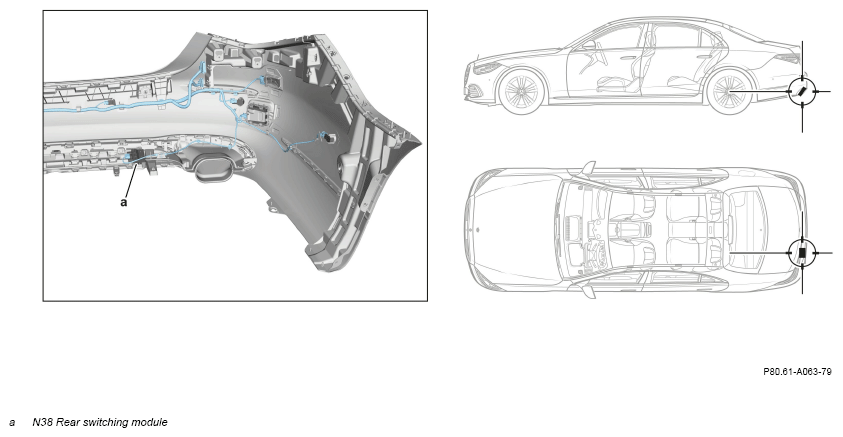

Fig 1: Rear Switching Module Components Location - Model 223 With Code 871
G16232109Courtesy of MERCEDES-BENZ USA

Location
