Power Closing Actuator Motor, Component Description - GF80.40-P-3003A

Model 223

with code 883 (Power locking)

Courtesy of MERCEDES-BENZ USA

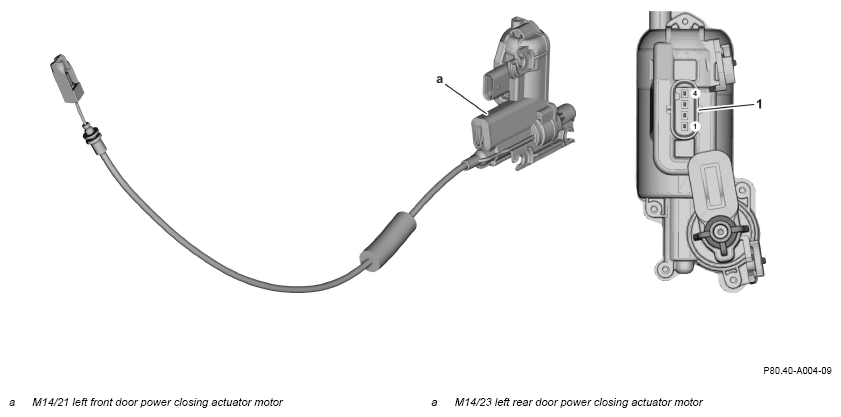

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

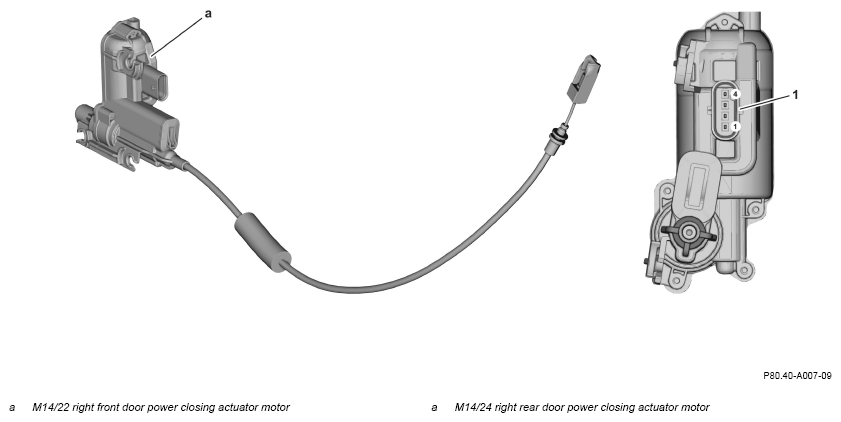

The numbers on the pins indicate the pin numbering of the slots.

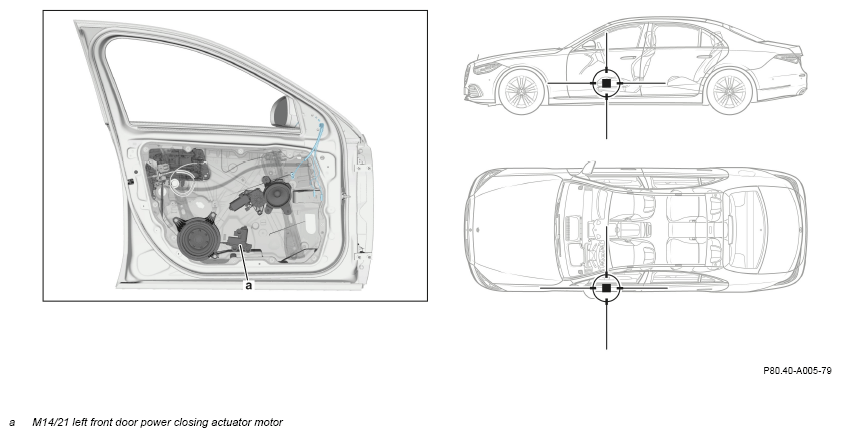

Fig 1: Left Front Door Power Closing Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on left

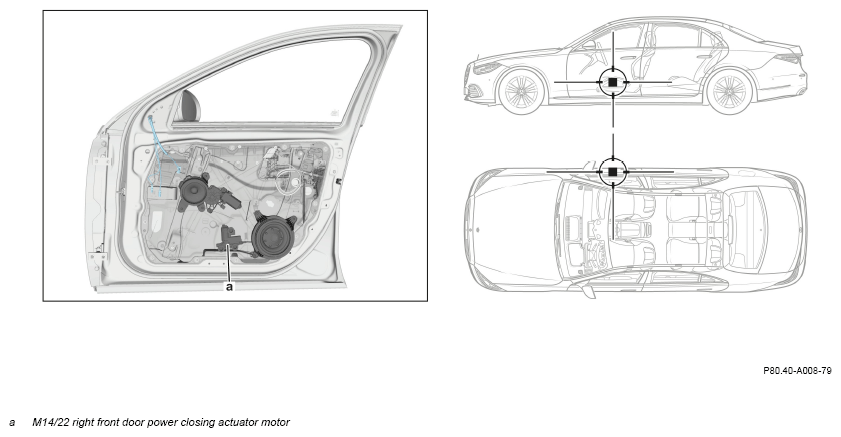

Fig 2: Right Front Door Power Closing Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on right

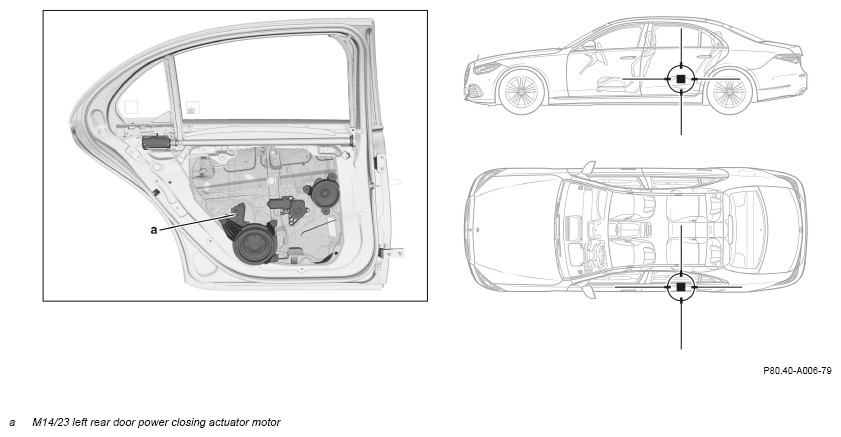

Fig 3: Left Rear Door Power Closing Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on left

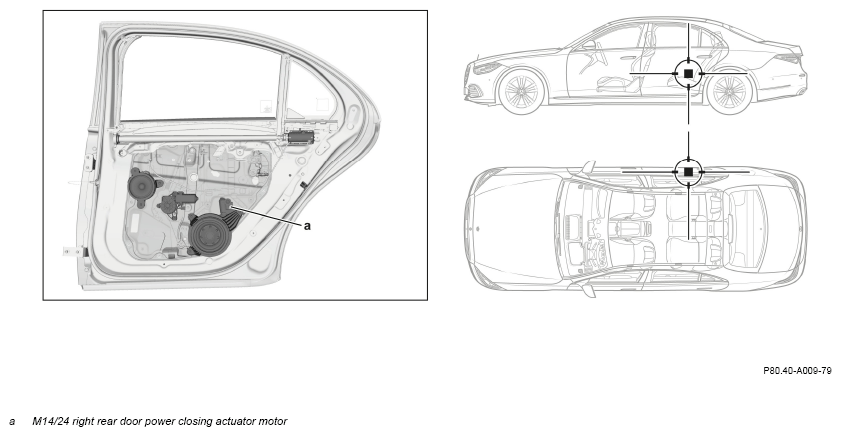

Fig 4: Right Rear Door Power Closing Actuator Motor Components Location - Model 223

Courtesy of MERCEDES-BENZ USA

Arrangement on right
