Glass Breakage Sensor, Basic Function - GF80.50-P-2009A
Model All (CAR)
Shown on model 167
Shown on model 167
Overview
This document contains information on:
- General
- Function
General

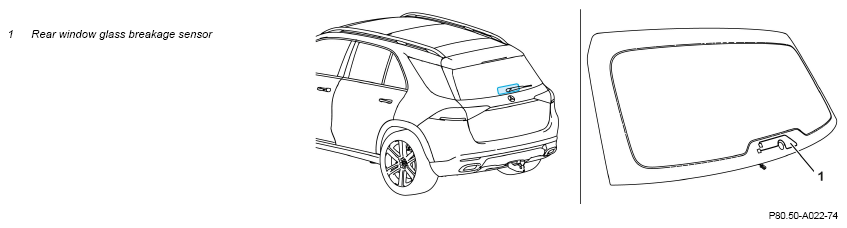

The rear window glass breakage sensor (1) is integrated in the rear window.

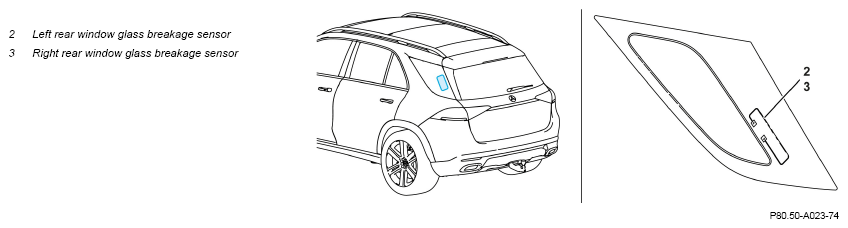

The rear glass breakage sensors on the left and right (2, 3) are integrated in the rear side windows.
Function
The glass breakage sensor consists of conductor tracks that are vacuum-metalized onto the respective window. If the resistance value for the conductor tracks rises above a specific value, an alarm is issued. The status of the glass breakage sensor is evaluated by the control unit of the anti-theft alarm system. Glass breakage sensors are usually installed in the rear window. Crew buses as well as 2-door coupes and SUVs are often equipped with glass breakage sensors in the rear fixed side windows in addition.
| Component descriptions | |||
|---|---|---|---|
| Rear glass breakage sensor, component description | Model 243 | GF80.50-P-4117B | |
| Model 206 | GF80.50-P-4117C | ||
| Model 296 | GF80.50-P-4117G | ||
| Model 254 | GF80.50-P-4117H | ||
| Model 214 | GF80.50-P-4117K | ||
| Model 118, 247 as of model year 2023 | GF80.50-P-4117L | ||
| Model 167 as of model year 2023 | GF80.50-P-4117M | ||
| Model 294 | GF80.50-P-4117N | ||
| Rear window glass breakage sensor, component description | Model 243 | GF80.50-P-4118B | |
| Model 206 | GF80.50-P-4118C | ||
| Model 297 | GF80.50-P-4118D | ||
| Model 296 | GF80.50-P-4118G | ||
| Model 254 | GF80.50-P-4118H | ||
| Model 214 | GF80.50-P-4118K | ||
| Model 118, 177, 247 as of model year 2023 | GF80.50-P-4118L | ||
| Model 167 as of model year 2023 | GF80.50-P-4118M | ||
| Model 294 | GF80.50-P-4118N |
