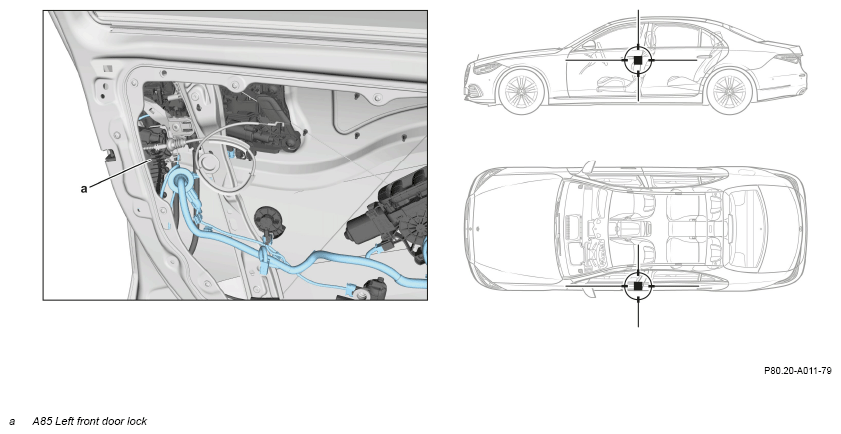

Door Lock, Component Description - GF80.20-P-4124A

Model 223

with code 460 (Canada version)

with code 883 (Power locking)

Model 223

with code 494 (US version)

with code 883 (Power locking)

Model 223

with code 883 (Power locking)

except code 460 (Canada version)

except code 494 (US version)

Courtesy of MERCEDES-BENZ USA

Diagram valid for model 223 with code 833 except code 460, 494

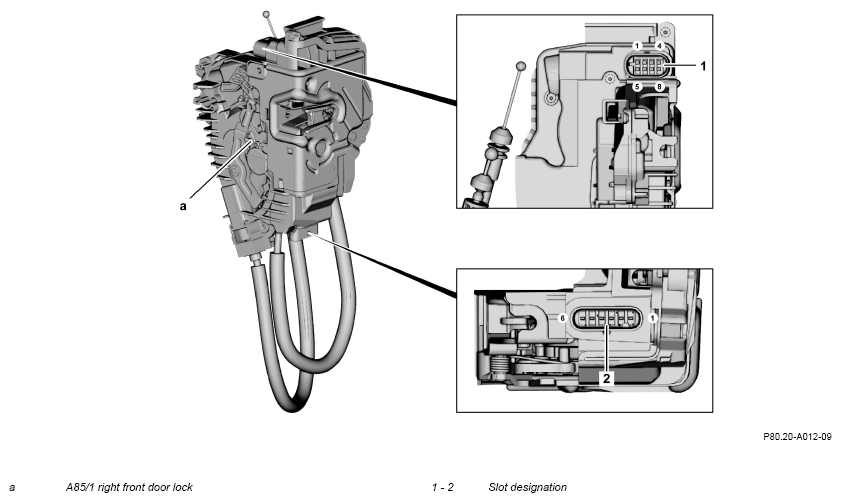

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

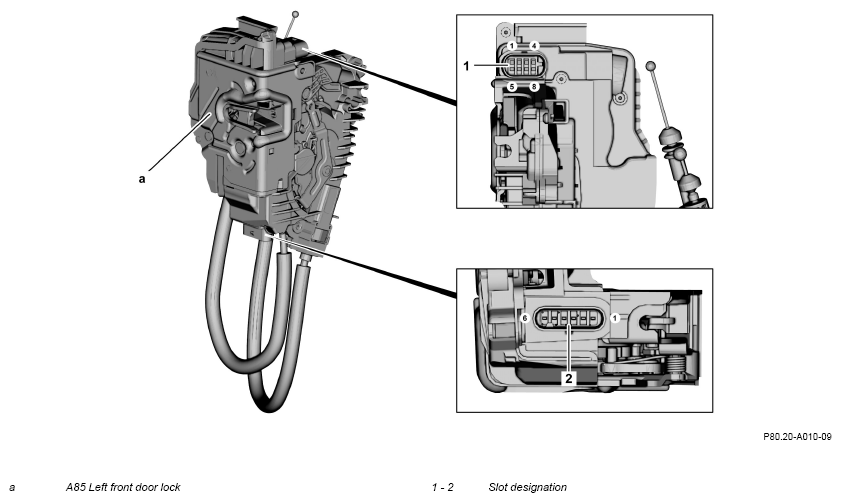

Diagram valid for model 223 with code 833 except code 460, 494

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

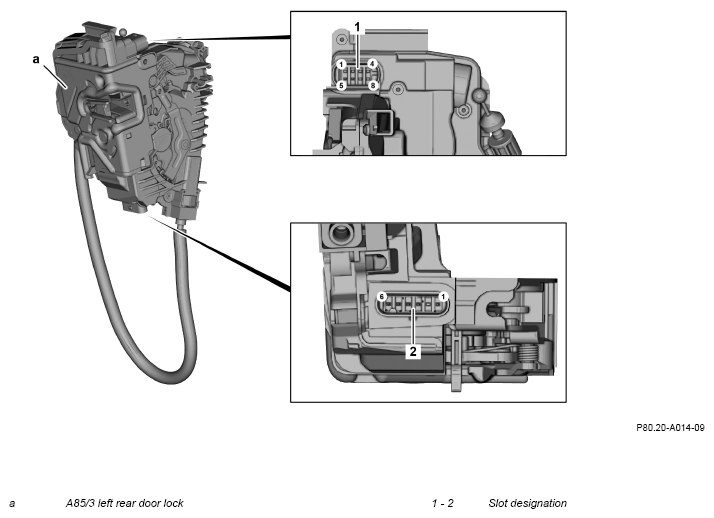

Diagram valid for model 223 with code 833, 460

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

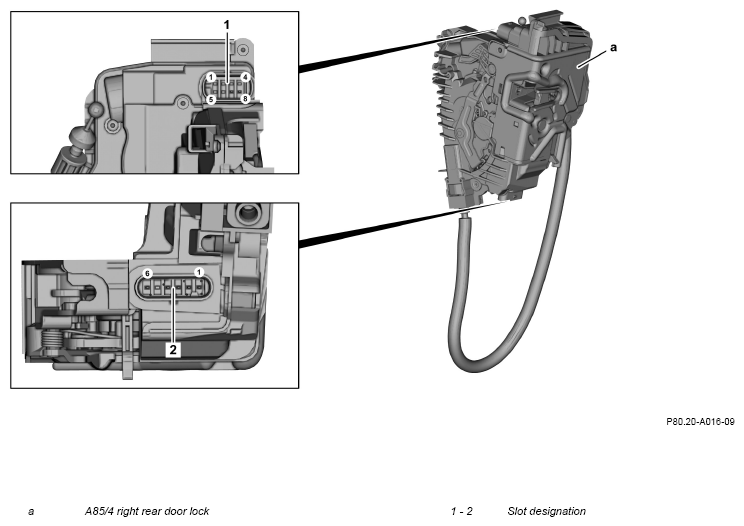

Diagram valid for model 223 with code 833, 494

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

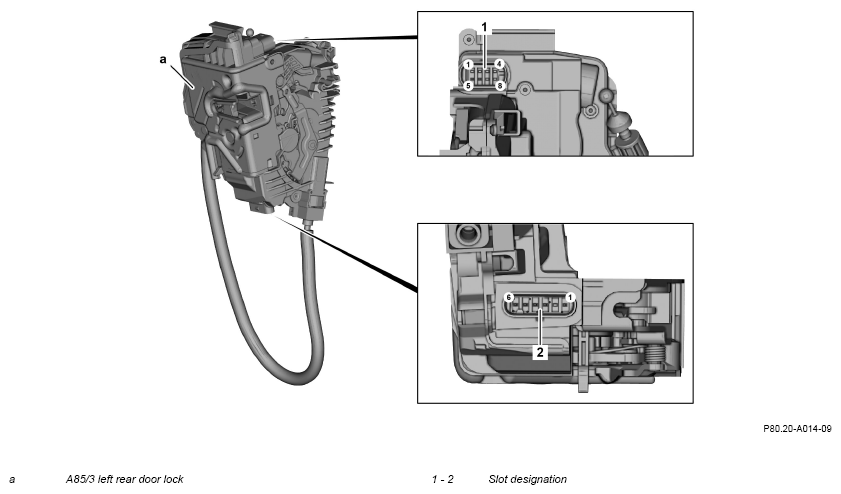

Diagram valid for model 223 with code 833, 460

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

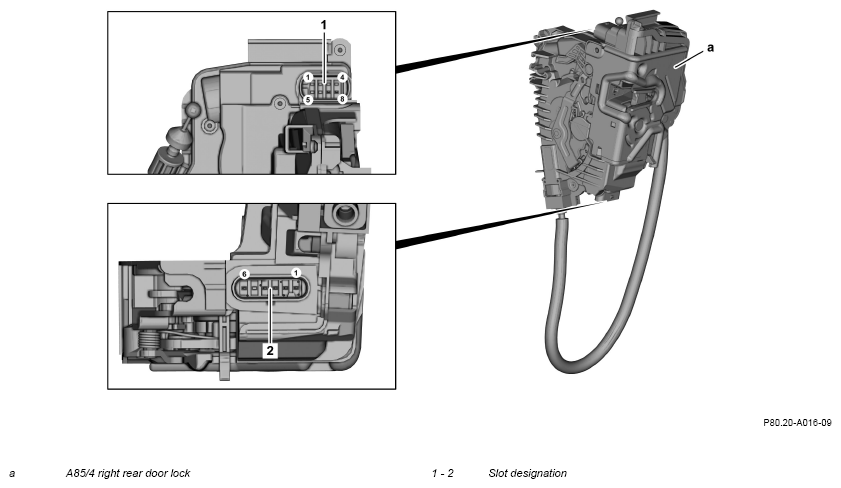

Diagram valid for model 223 with code 833, 494

The numbers on the pins indicate the pin numbering of the slots.

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 833 except code 460, 494

Courtesy of MERCEDES-BENZ USA

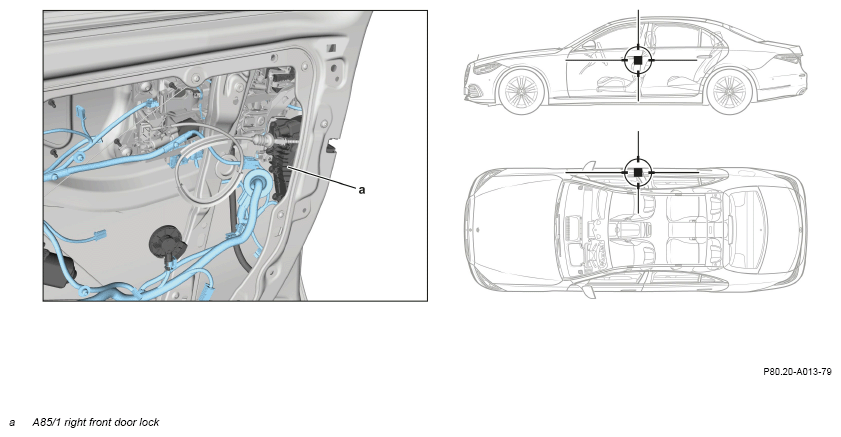

Arrangement in model 223 with code 833 except code 460, 494

Courtesy of MERCEDES-BENZ USA

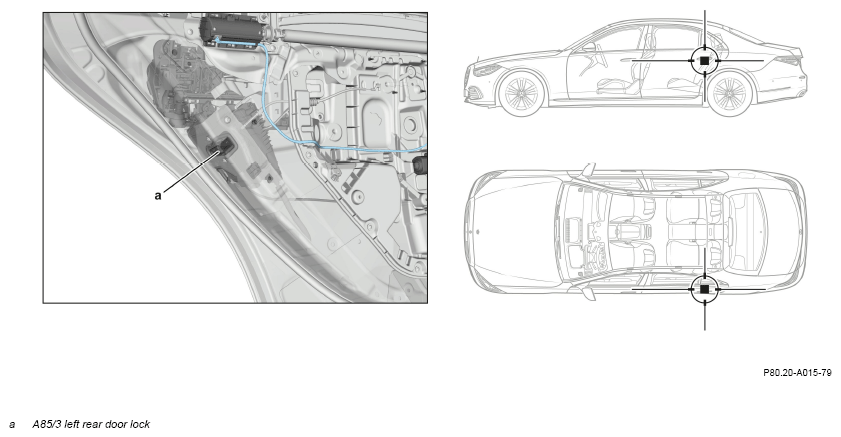

Arrangement in model 223 with code 833, 460

Courtesy of MERCEDES-BENZ USA

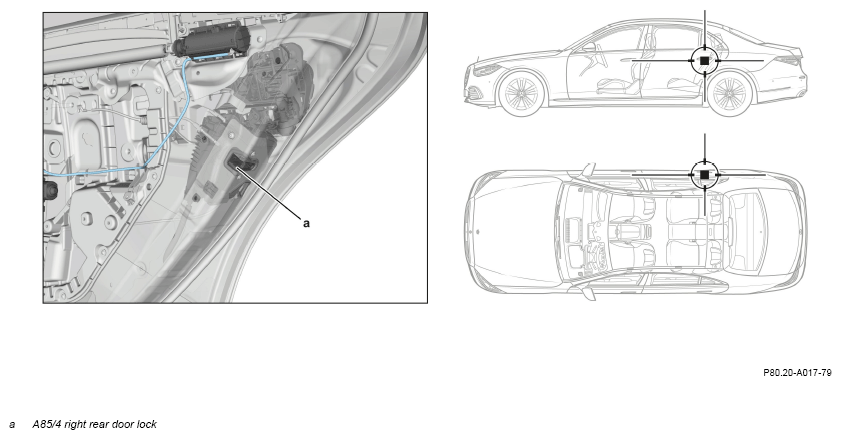

Arrangement in model 223 with code 833, 494

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 833, 460

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 833, 494
