Charging Cable Socket Lock Motor, Component Description - GF80.20-P-4149A

Model 223

Courtesy of MERCEDES-BENZ USA

Fig 1: Charging Cable Socket Lock Motor Components Location - Model 223 With Code 83B, Except Code 64B

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 83B, except code 64B

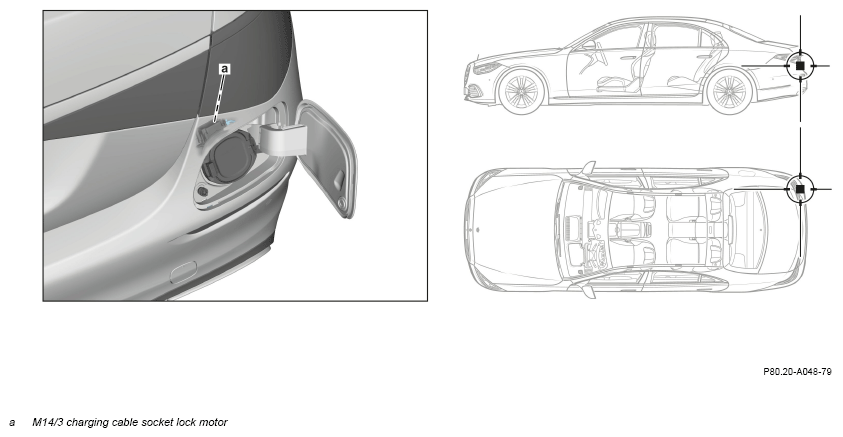

Fig 2: Charging Cable Socket Lock Motor Components Location - Model 223 With Code 83B, Except Code 65B

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 83B, except code 65B

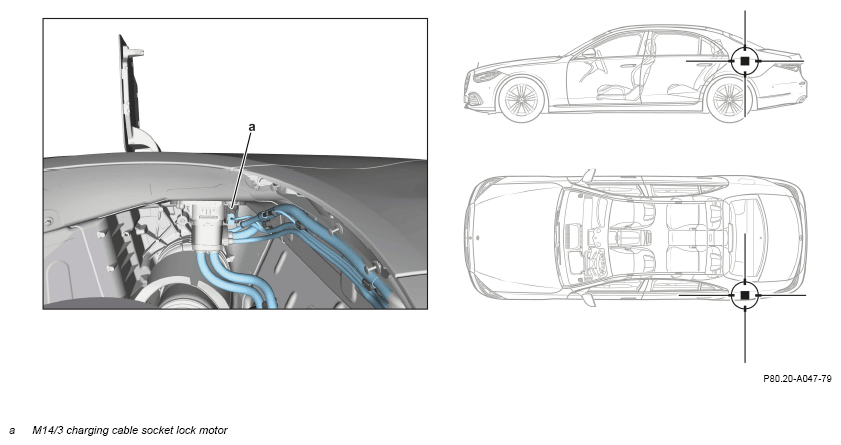

Fig 3: Charging Cable Socket Lock Motor Components Location - Model 223 With Code 64B, 83B

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 64B, 83B

Fig 4: Charging Cable Socket Lock Motor Components Location - Model 223 With Code 65B, 83B

Courtesy of MERCEDES-BENZ USA

Arrangement in model 223 with code 65B, 83B
