Central Locking System Status Display, Component Description - GF80.20-P-2000A
Model 223
 Courtesy of MERCEDES-BENZ USA
|

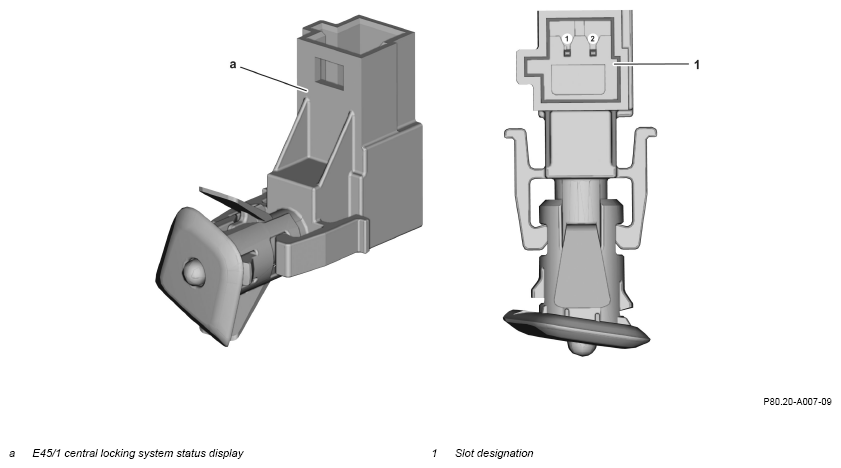

Diagram valid for model 223
The numbers on the pins indicate the pin numbering of the slots.
 Courtesy of MERCEDES-BENZ USA
|

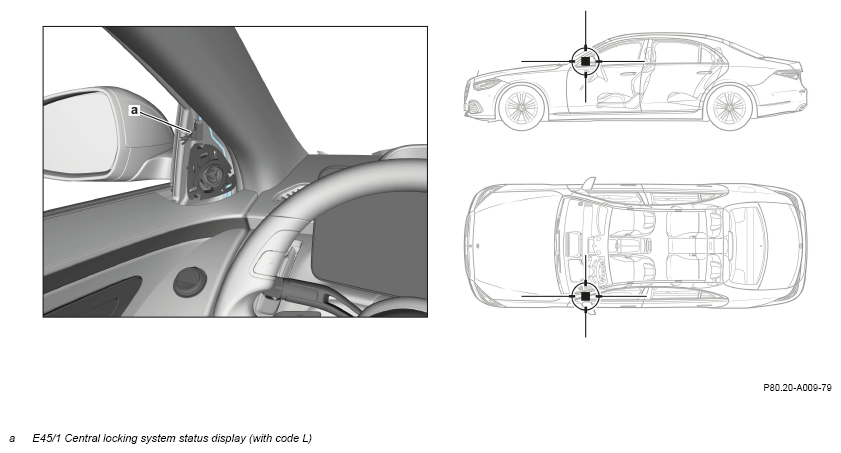

Location for model 223
 Courtesy of MERCEDES-BENZ USA
|

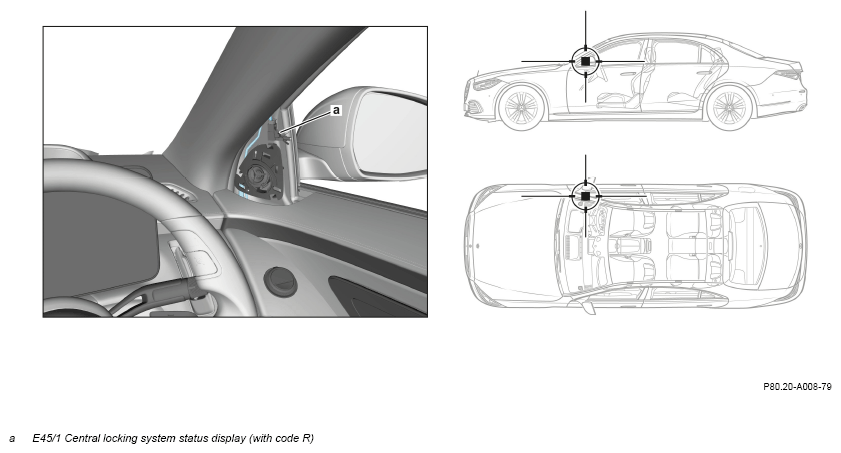

Location for model 223
