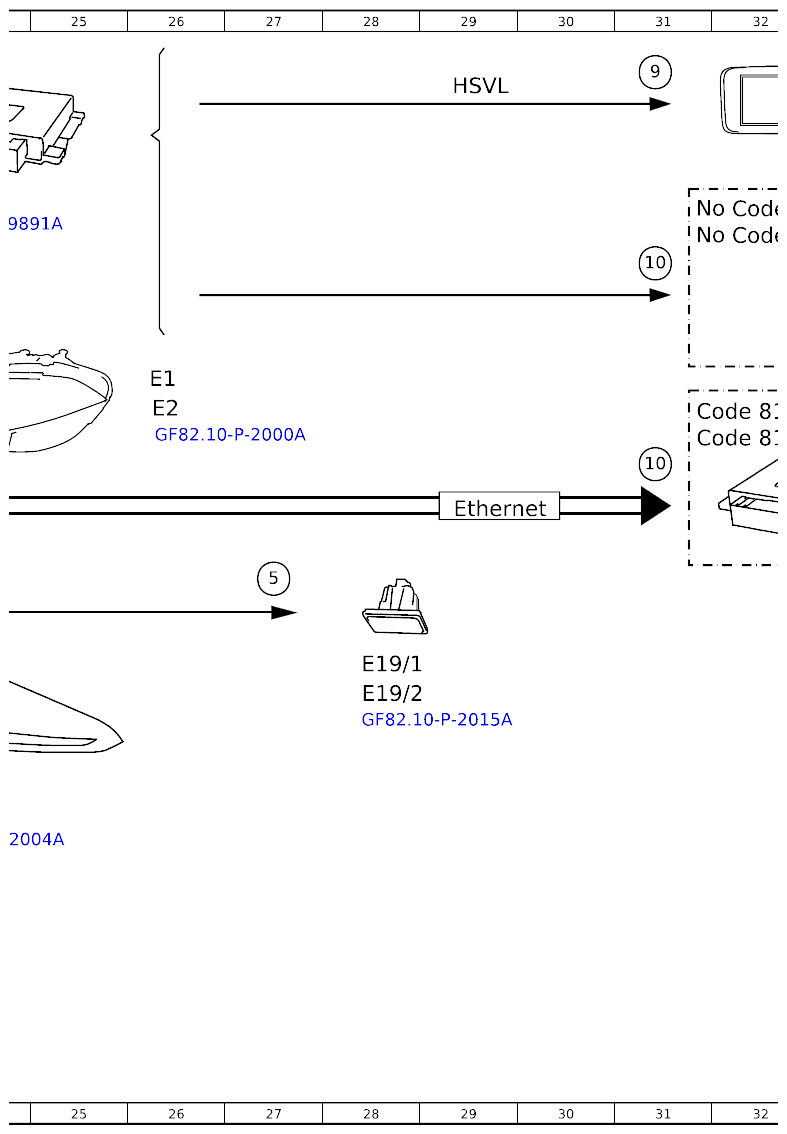

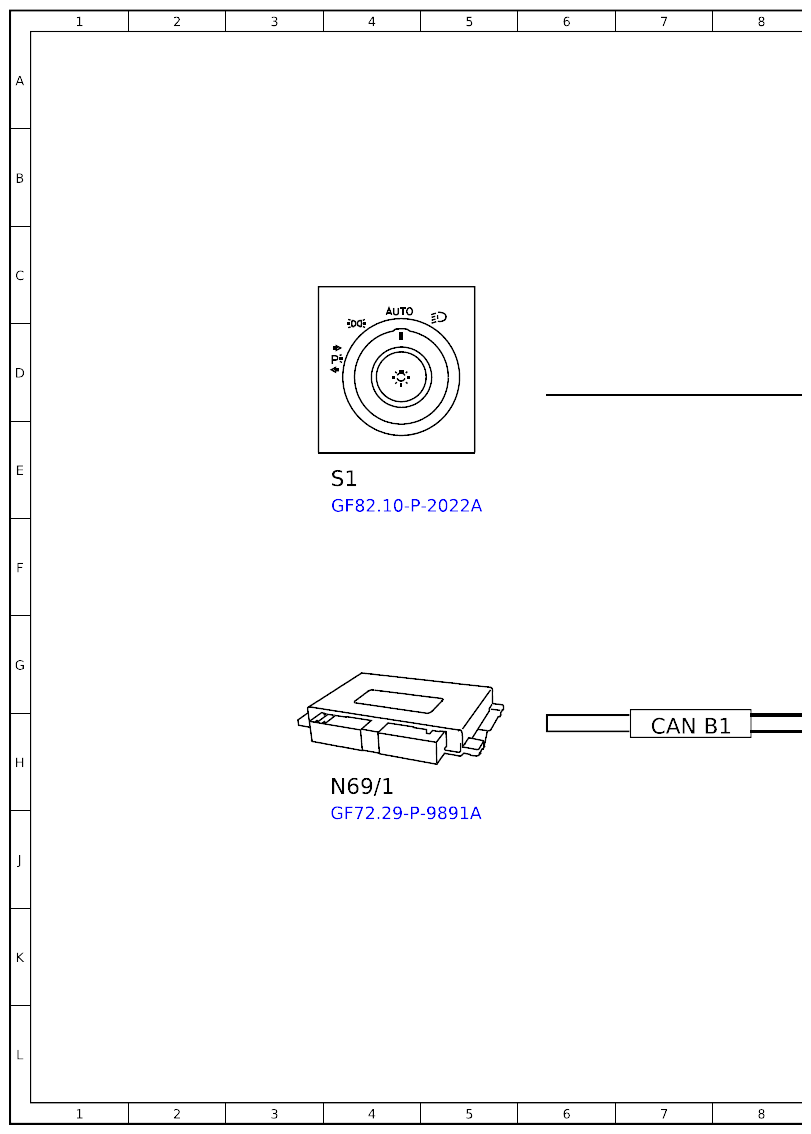

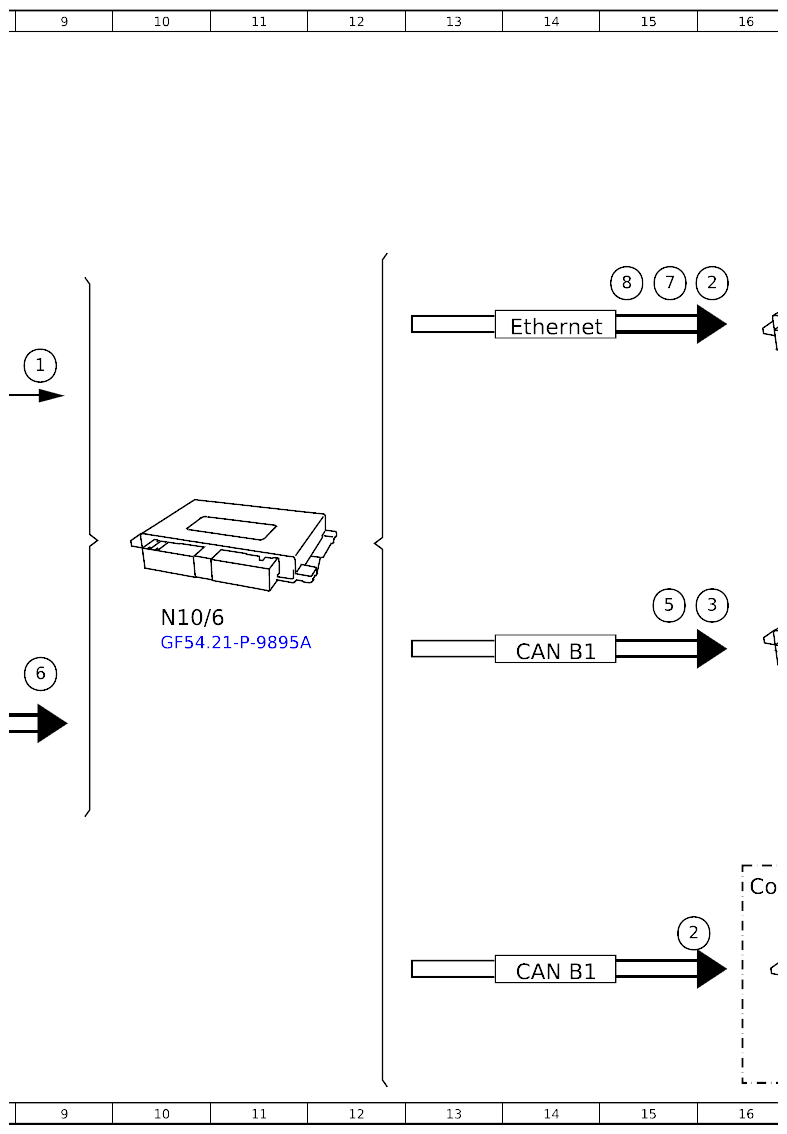

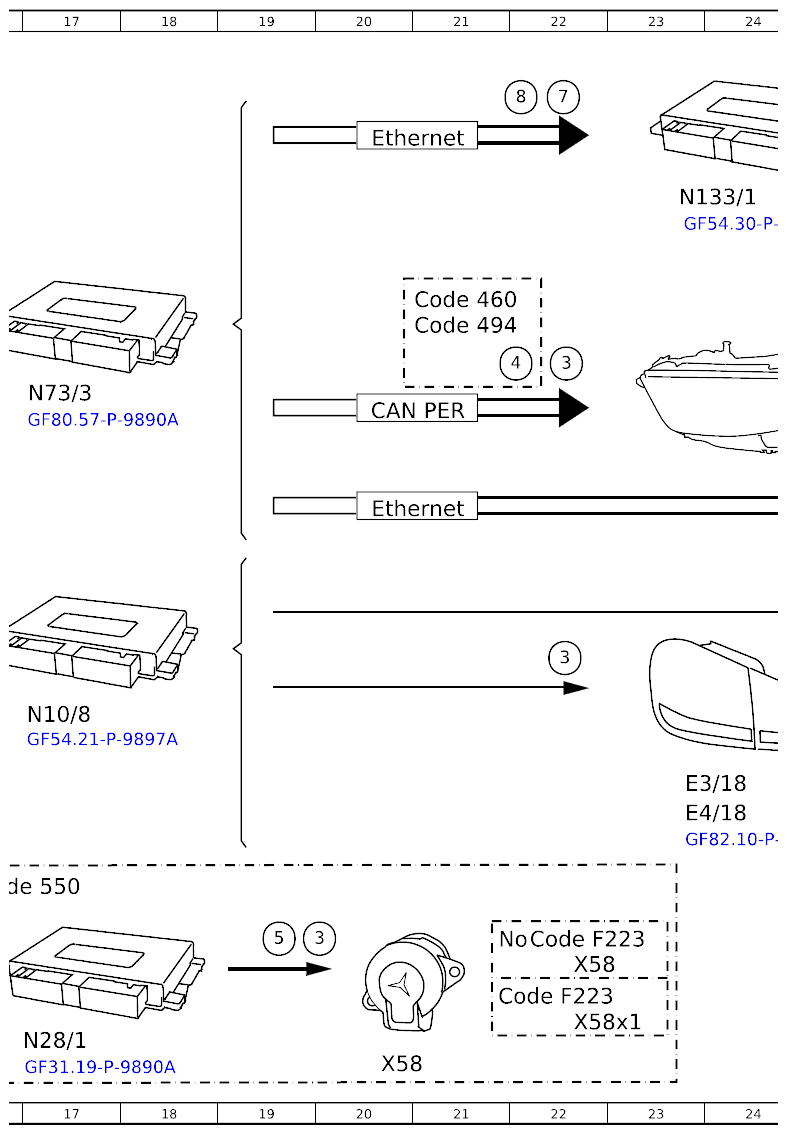

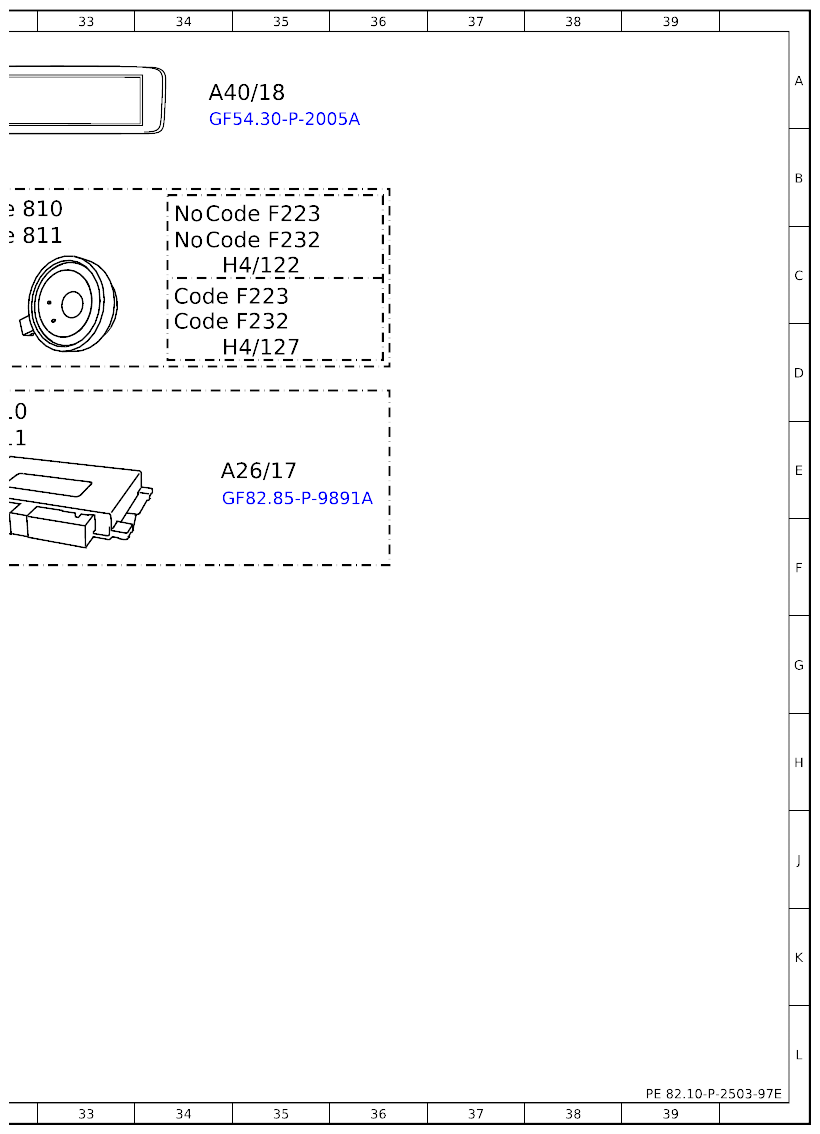

Function Schematic, Actuate Standing/Parking Lights - PE82.10-P-2503-97E
Model 192, 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 9D |
| 10 | Speaker, actuation | 31C |
| 10 | Speaker, actuation | 31E |
| 2 | Standing and parking lights, request | 16C |
| 2 | Standing and parking lights, request | 15K |
| 3 | Standing and parking lights, actuation | 22G |
| 3 | Standing and parking lights, actuation | 16F |
| 3 | Standing and parking lights, actuation | 22D |
| 3 | Standing and parking lights, actuation | 20K |
| 4 | Side marker light, actuation | 22D |
| 5 | License plate lamp, actuation | 19K |
| 5 | License plate lamp, actuation | 27G |
| 5 | License plate lamp, actuation | 15F |
| 6 | Door rotary tumbler switch, status | 9G |
| 7 | Instrument cluster message, request | 15C |
| 7 | Instrument cluster message, request | 22A |
| 8 | Warning tone, request | 22A |
| 8 | Warning tone, request | 15C |
| 9 | Image data, signal | 31A |
| A26/17 | Head unit | 35E |
| A40/18 | Instrument cluster display | 34A |
| CAN B1 | CAN 1 for vehicle interior | 14G |
| CAN B1 | CAN 1 for vehicle interior | 7H |
| CAN B1 | CAN 1 for vehicle interior | 14K |
| CAN PER | CAN for peripherals | 20D |
| Code 460 | Canada version | 21C |
| Code 494 | USA version | 21D |
| Code 550 | Trailer hitch | 16J |
| Code 810 | Premium sound system | 32B |
| Code 810 | Premium sound system | 31D |
| Code 811 | High-End sound system | 32C |
| Code 811 | High-End sound system | 31E |
| Code F223 | Model series 223 | 21K |
| Code F223 | Model series 223 | 22K |
| Code F223 | Model series 223 | 34C |
| Code F223 | Model series 223 | 34B |
| Code F232 | Model series 232 | 34C |
| Code F232 | Model series 232 | 34D |
| E1 | Left front lamp unit | 26D |
| E19/1 | License plate lamp | 28G |
| E19/2 | License plate lamp | 28G |
| E2 | Right front lamp unit | 26D |
| E3/18 | Outer left rear lamp unit | 23H |
| E4/18 | Outer right rear lamp unit | 23J |
| Ethernet | Ethernet | 20B |
| Ethernet | Ethernet | 14D |
| Ethernet | Ethernet | 20E |
| Ethernet | Ethernet | 29E |
| H4/122 | Front mid-range speaker | 34C |
| H4/127 | Instrument panel mid-range speaker | 34D |
| HSVL | High-speed video link | 29A |
| N10/6 | Front signal acquisition and actuation module control unit | 10G |
| N10/8 | Rear signal acquisition and actuation module control unit | 17H |
| N133/1 | Instrument cluster control unit | 23B |
| N28/1 | Trailer recognition control unit | 17L |
| N69/1 | Left front door control unit | 4H |
| N73/3 | Electronic ignition switch control unit | 17D |
| S1 | Exterior lights switch | 4E |
| X58 | Trailer socket | 20L |
| X58 | Trailer socket | 22K |
| X58x1 | Trailer socket | 22L |
