Function Schematic, Actuate Automatic High Beams - PE82.10-P-2507-97C
Model 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
with code 608 (Automatic high beam control (IHC))
Model 206, 214, 223, 232, 236, 254, 294, 295, 296, 297
with code 628 (INTELLIGENT HEADLAMP CONTROL PLUS (IHC+))
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Exterior lights switch, status | 11A |
| 10 | High beams, request | 17F |
| 10 | High beams, request | 17G |
| 10 | High beams, request | 30D |
| 11 | Object information, data package | 16G |
| 11 | Object information, data package | 30D |
| 12 | Vehicle speed, signal | 11C |
| 13 | High beam indicator lamp, actuation | 25G |
| 2 | Low beams, request | 18B |
| 2 | Low beams, request | 31E |
| 3 | Variable light distribution function, status | 31E |
| 4 | Combination switch, status | 18E |
| 4 | Combination switch, status | 31D |
| 5 | Steering wheel angle, signal | 17F |
| 5 | Steering wheel angle, signal | 30E |
| 6 | Wheel speed, signal | 18J |
| 6 | Wheel speed, signal | 30E |
| 7 | Speed, turn rate and lateral acceleration, signal | 17J |
| 7 | Speed, turn rate and lateral acceleration, signal | 31D |
| 8 | Ambient information, data | 18J |
| 8 | Ambient information, data | 31D |
| 9 | Optical headlamp range adjustment, request | 17H |
| 9 | Optical headlamp range adjustment, request | 30D |

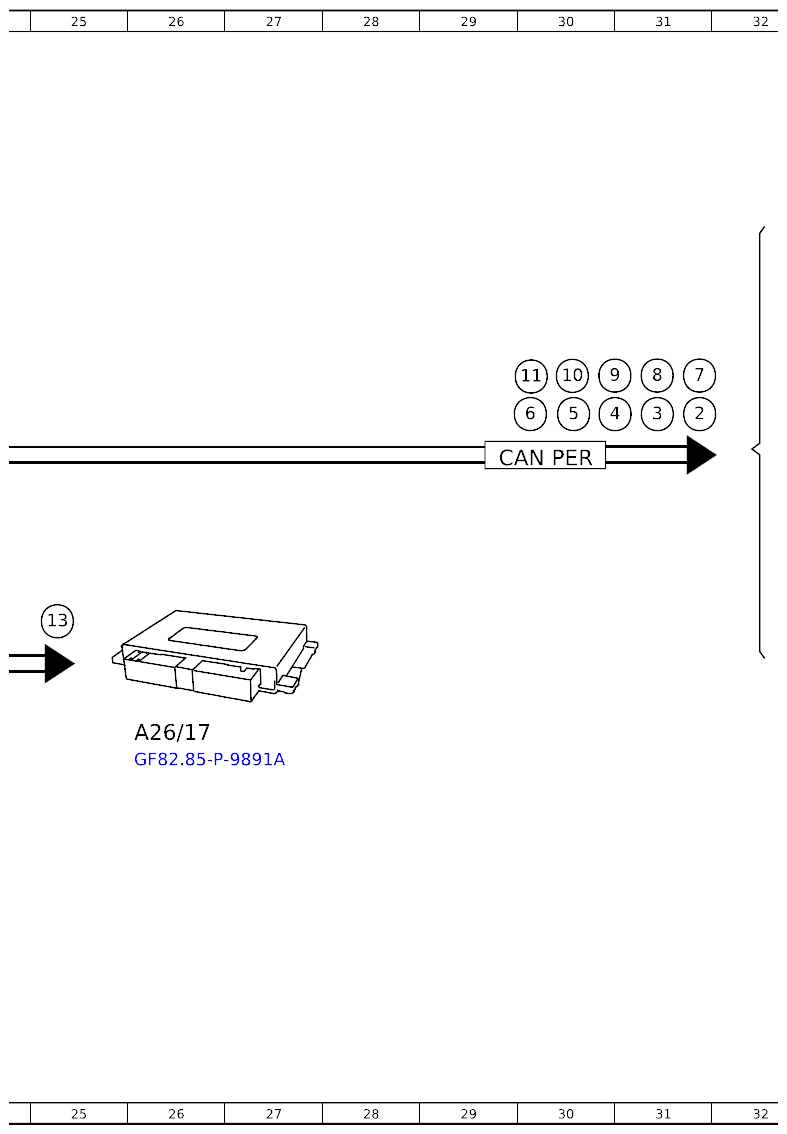

| A26/17 | Head unit | 26H |
| A40/13 | Multifunction camera | 12J |
| CAN PER | CAN for peripherals | 23E |
| CAN PER | CAN for peripherals | 30E |
| Code 200 | Conditionally automated driving | 2G |
| Code 200 | Conditionally automated driving | 2K |
| Code F206 | Model series 206 | 2H |
| Code F223 | Model series 223 | 2G |
| Code F223 | Model series 223 | 2K |
| Code F232 | Model series 232 | 2H |
| Code F254 | Model series 254 | 2J |
| Code F295 | Model series 295 | 2J |
| Code F296 | Model series 296 | 2J |
| Code F297 | Model series 297 | 2H |
| Code F297 | Model series 297 | 2K |

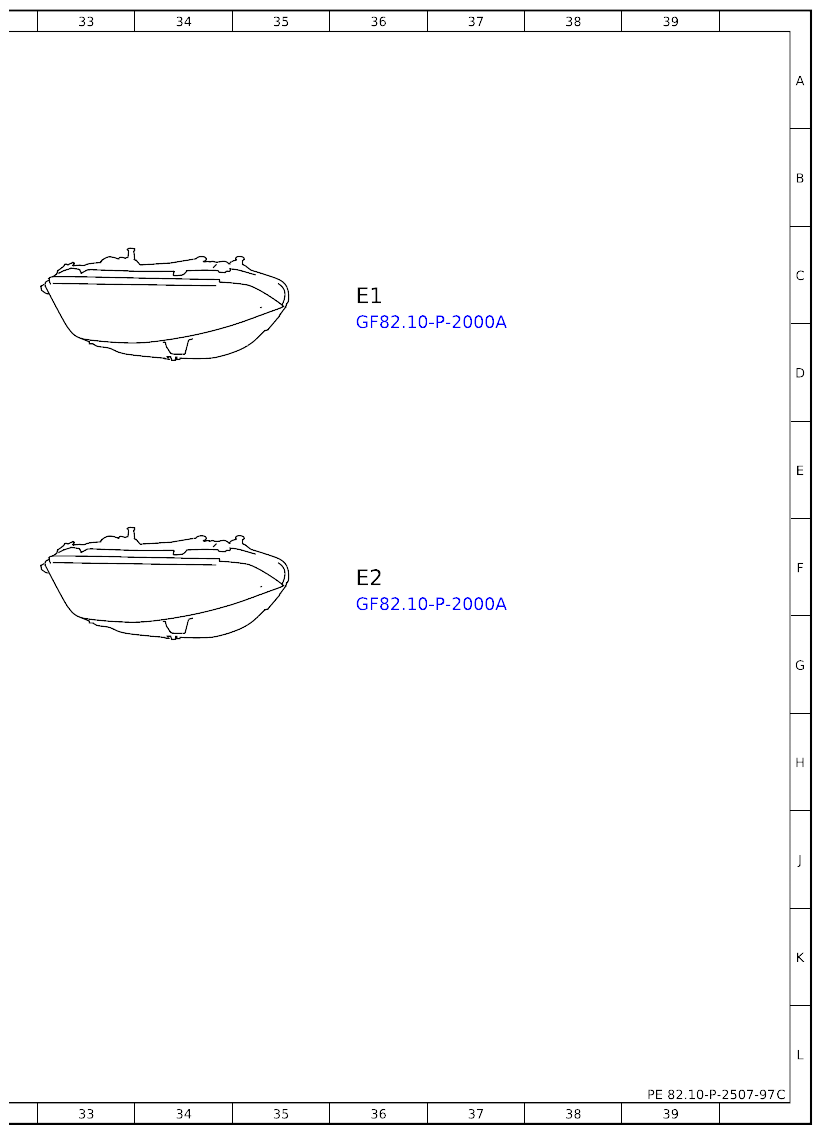

| E1 | Left front lamp unit | 36C |
| E2 | Right front lamp unit | 36F |
| Ethernet | Ethernet | 16C |
| Ethernet | Ethernet | 16H |
| Ethernet | Ethernet | 9D |
| Ethernet | Ethernet | 23G |
| Flex E | Chassis FlexRay | 9K |
| Flex E | Chassis FlexRay | 16K |
| Flex E | Chassis FlexRay | 9F |
| Flex E | Chassis FlexRay | 16F |

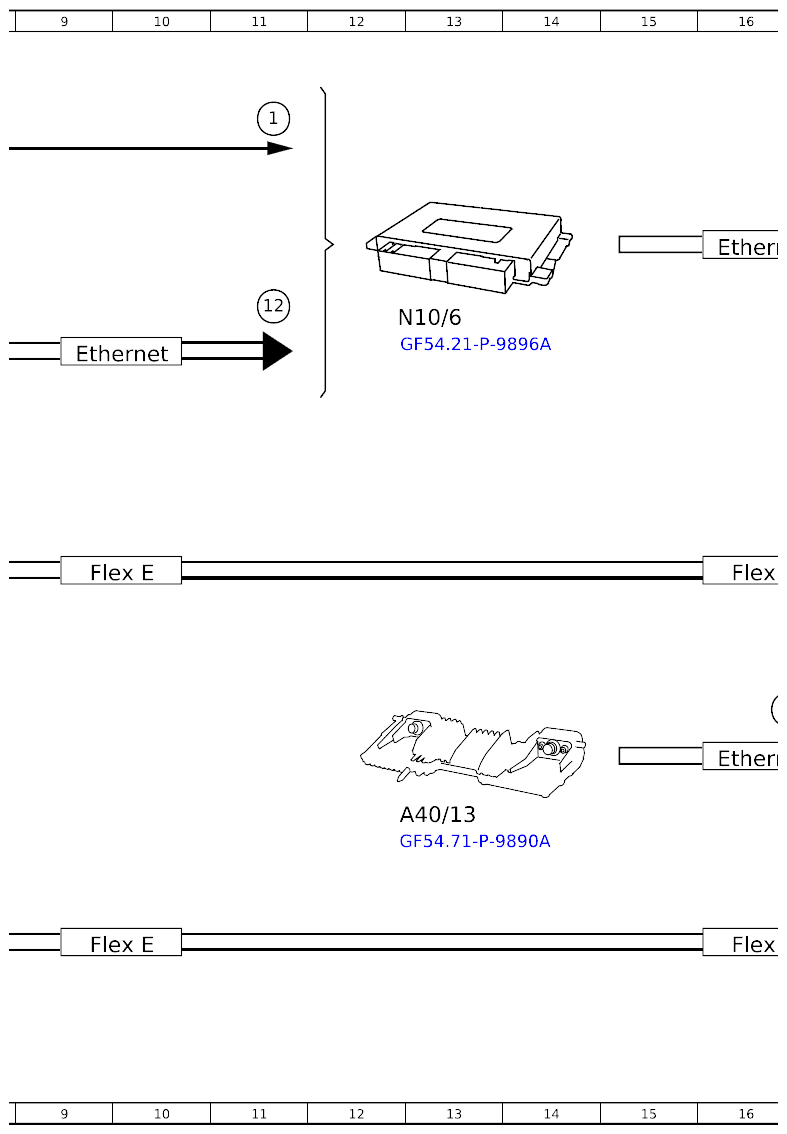

| N10/6 | Front signal acquisition and actuation module control unit | 13D |
| N133/1 | Instrument cluster control unit | 3D |
| N30/10 | Electronic Stability Program control unit | 3L |
| N30/3 | Electronic Stability Program control unit | 3J |

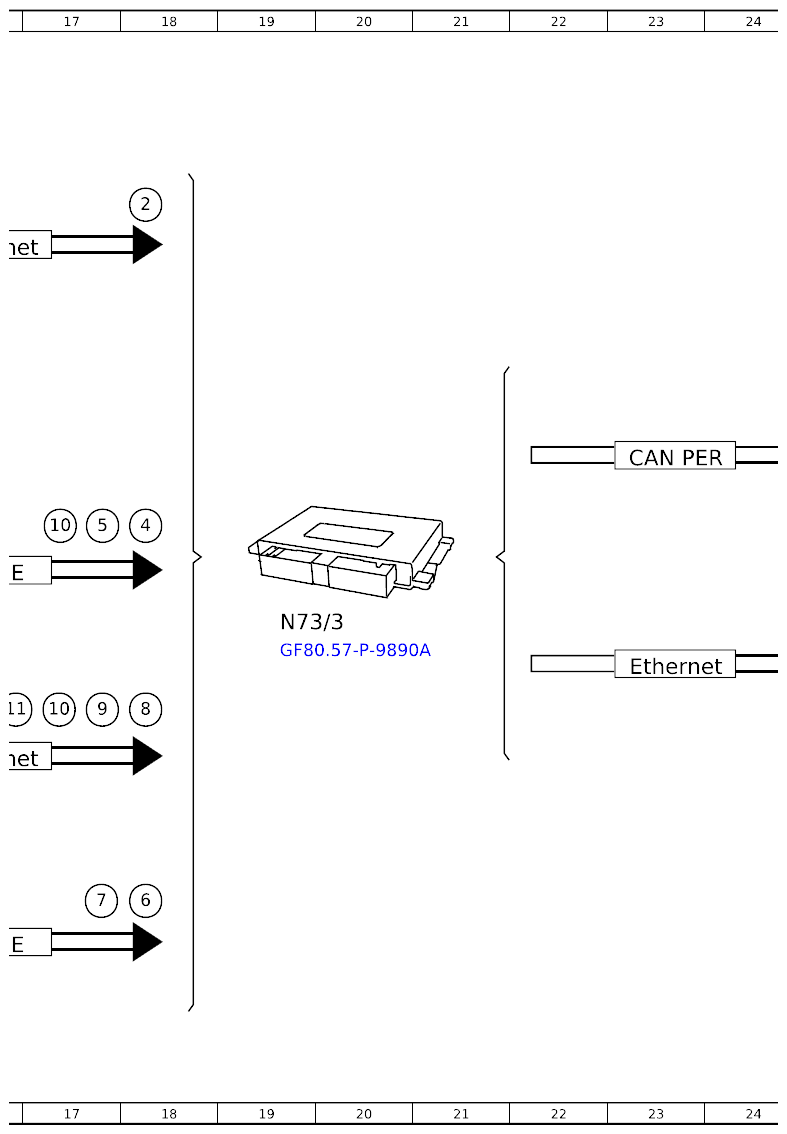

| N73/3 | Electronic ignition switch control unit | 19G |
| N80 | Steering column module control unit | 3F |

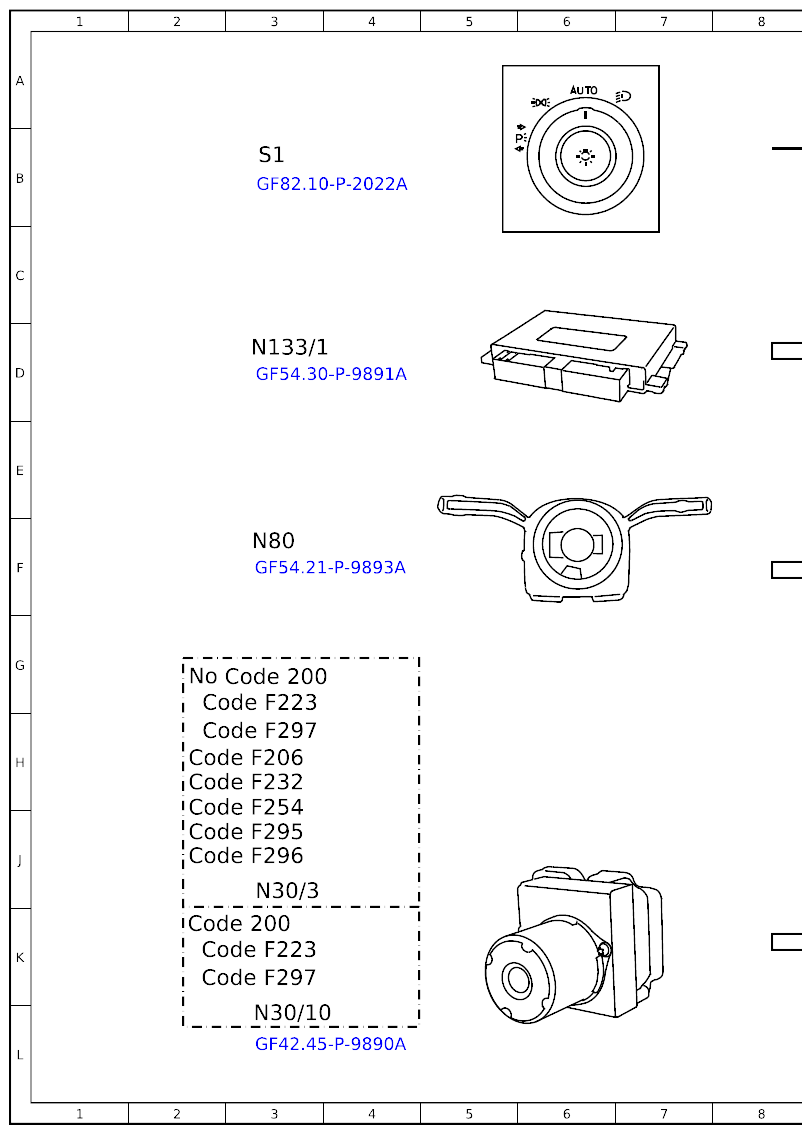

| S1 | Exterior lights switch | 3B |
