Function Schematic For Telephony With Mobile Phone Cradle - PE82.70-P-2503-97A
Model 223
with code 899 (Front wireless telephone charging and antenna)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 26A |
| 2 | Telephone, signal | 18E |
| 2 | Telephone, signal | 12C |
| 2 | Telephone, signal | 11E |
| 2 | Telephone, signal | 14D |
| 2 | Telephone, signal | 47C |
| 2 | Telephone, signal | 48B |
| 2 | Telephone, signal | 44E |
| 2 | Telephone, signal | 16F |
| 2 | Telephone, signal | 18H |
| 2 | Telephone, signal | 27G |
| 2 | Telephone, signal | 51D |
| 2 | Telephone, signal | 36G |
| 2 | Telephone, signal | 45J |
| 2 | Telephone, signal | 42G |
| 3 | Cellular telephone system compensator, status | 51E |
| 4 | Audio, signal | 53K |
| 4 | Audio, signal | 27K |
| 5 | Address data, signal | 17J |
| 5 | Address data, signal | 26H |
| 6 | Charge level, status | 18G |
| 6 | Charge level, status | 26E |
| 7 | Charging voltage and charging current, request | 36D |
| 8 | Charging current, energy flow | 45F |
| A2/161 | Bluetooth®/WiFi antenna | 20G |
| A2/161 | Bluetooth®/WiFi antenna | 39F |
| A2/162 | Bluetooth®/WiFi antenna | 20J |
| A2/162 | Bluetooth®/WiFi antenna | 39J |
| A2/163 | Bluetooth®/WiFi antenna | 20H |
| A2/163 | Bluetooth®/WiFi antenna | 39H |

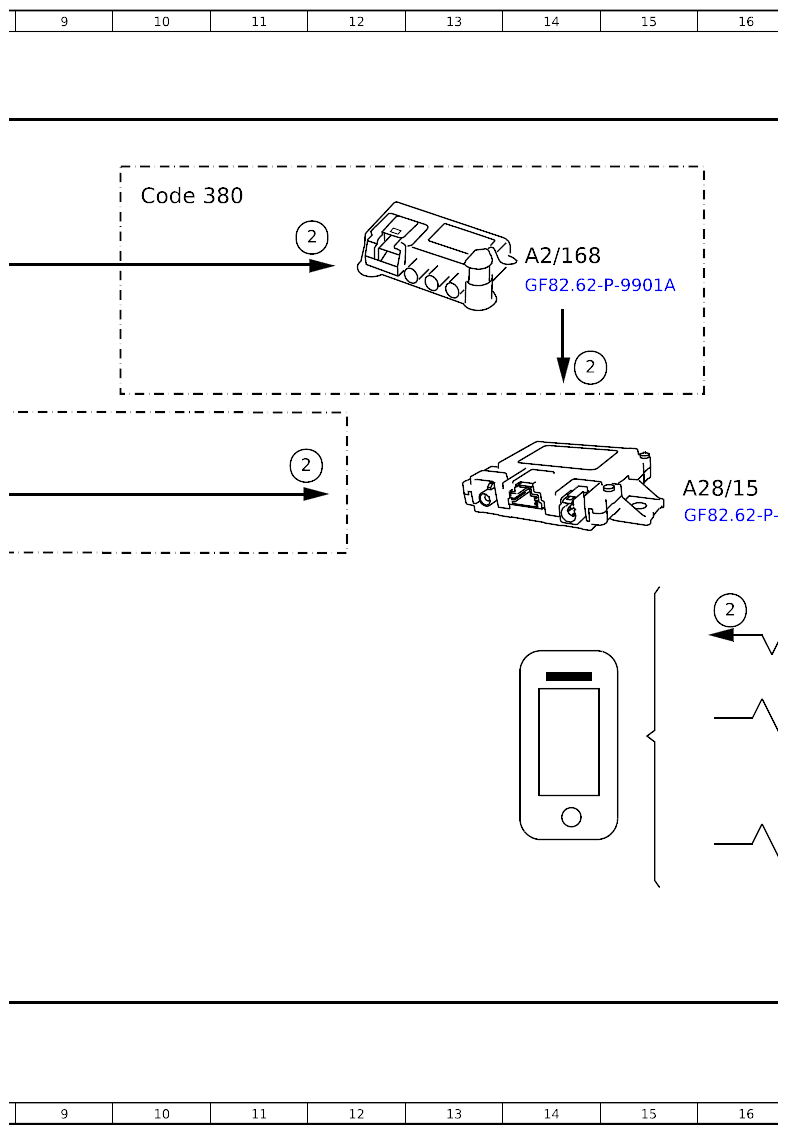

| A2/168 | Antenna changeover switch | 14C |

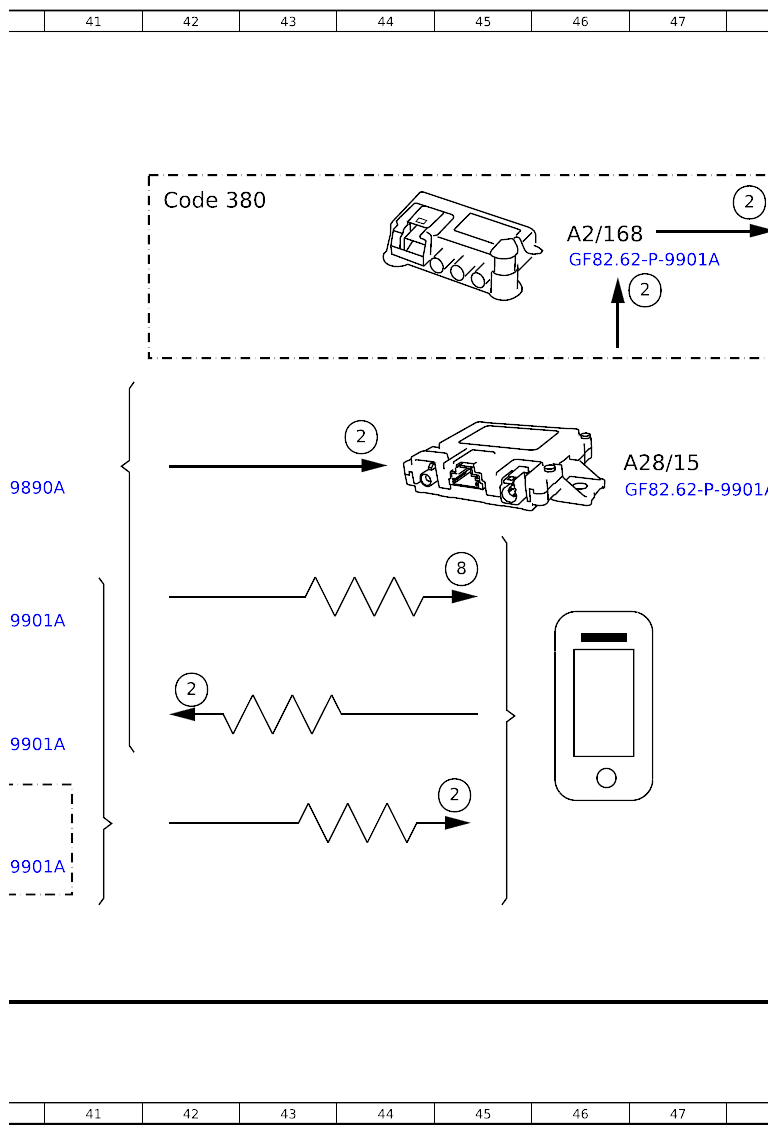

| A2/168 | Antenna changeover switch | 46C |

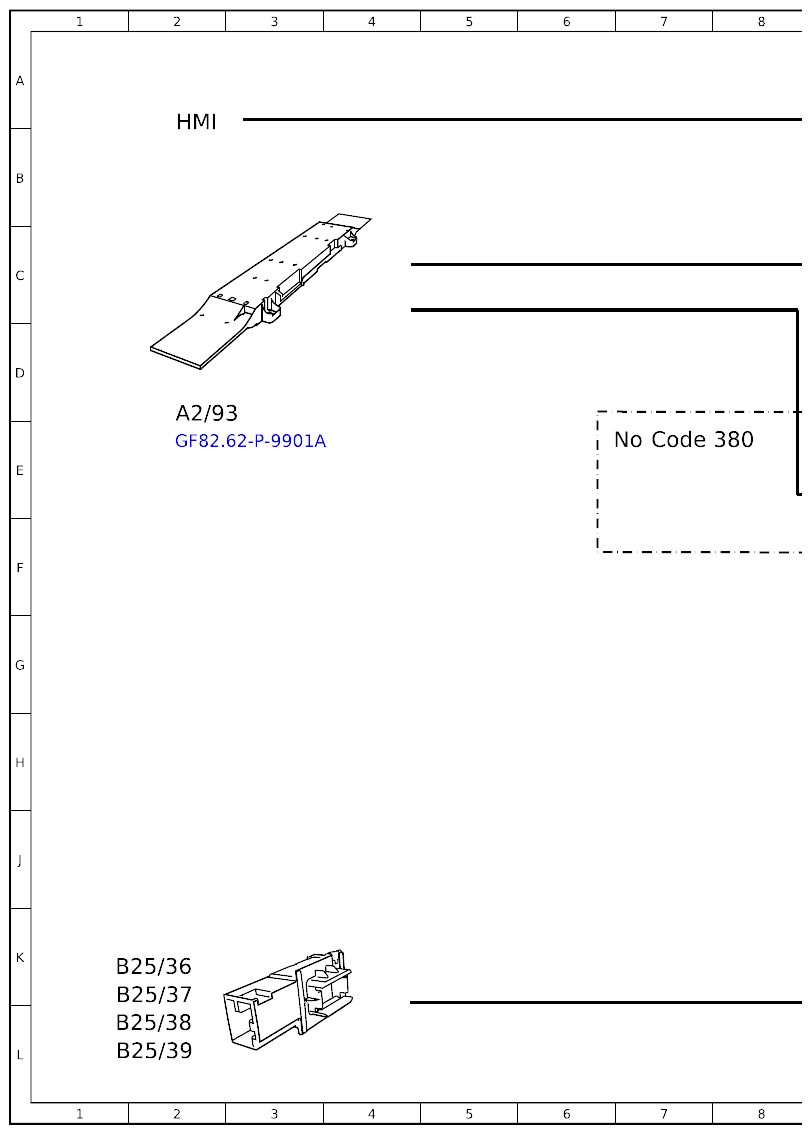

| A2/93 | Roof antenna module | 2D |

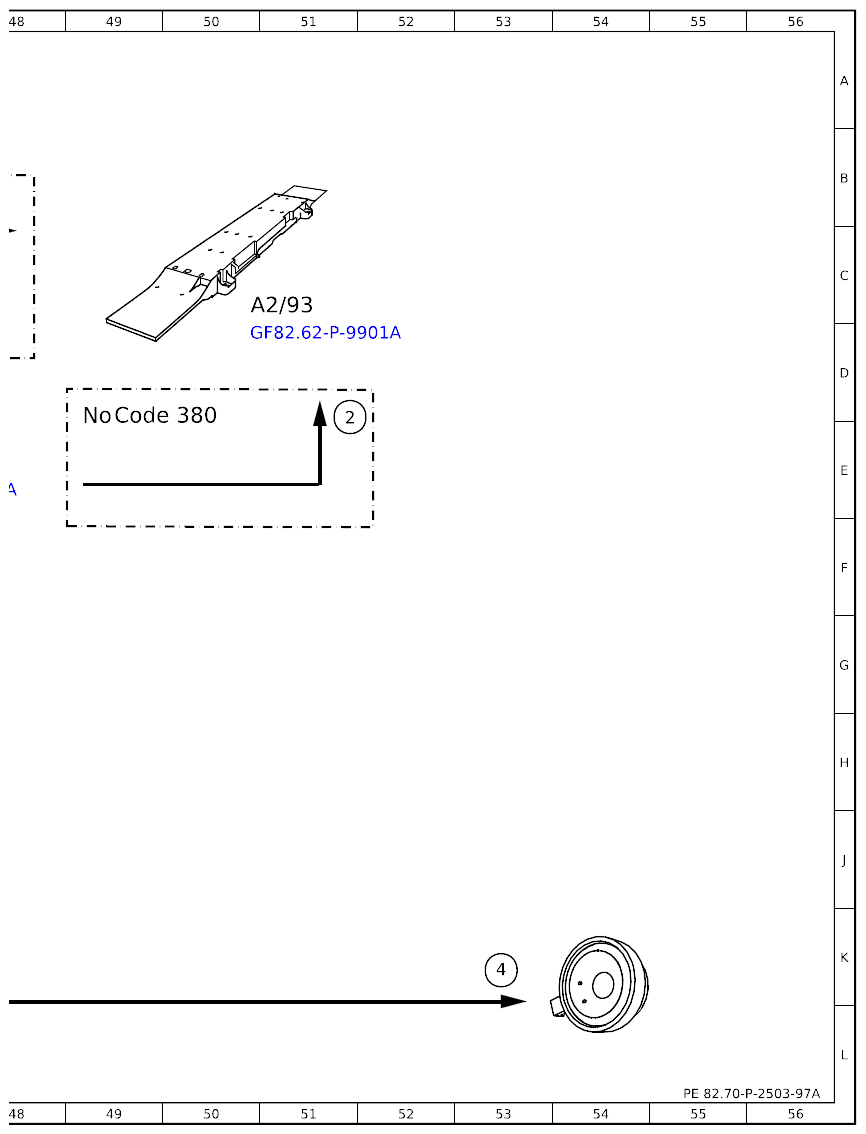

| A2/93 | Roof antenna module | 51C |

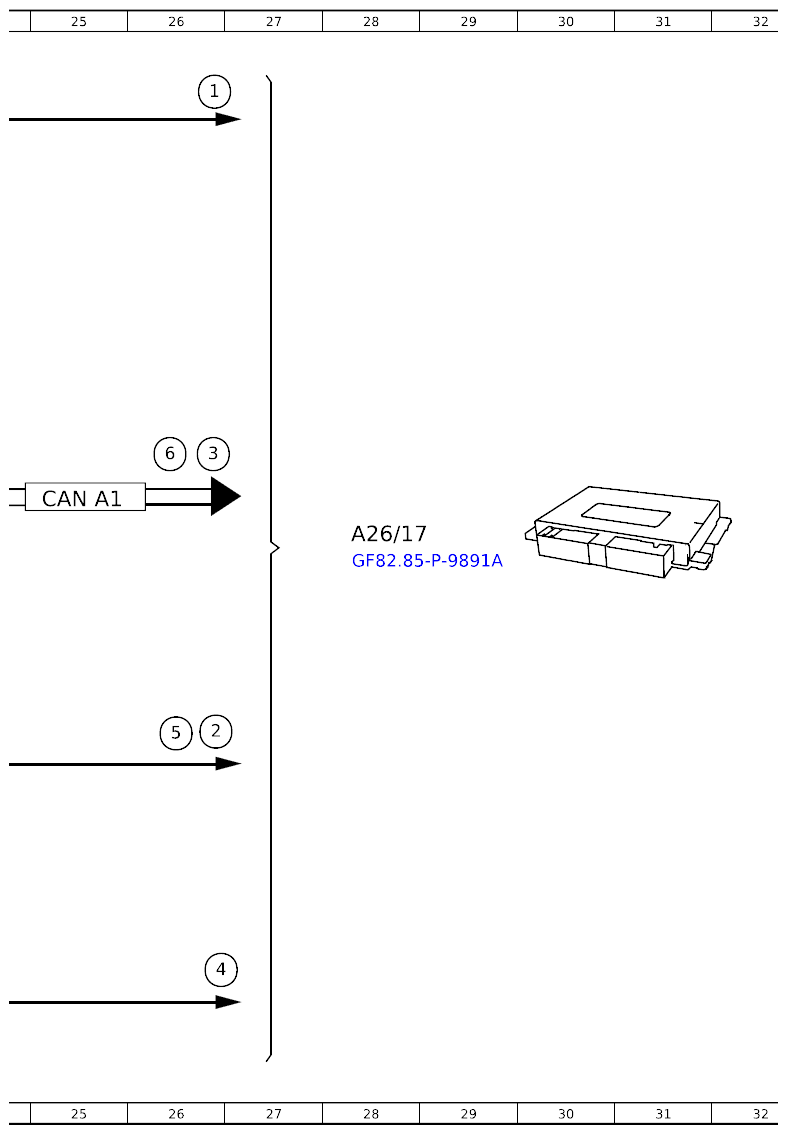

| A26/17 | Head unit | 28F |
| A28/15 | Antenna amplifier/compensator | 16E |
| A28/15 | Antenna amplifier/compensator | 47E |
| B25/36 | Microphone | 2K |
| B25/37 | Microphone | 2K |
| B25/38 | Microphone | 2L |
| B25/39 | Microphone | 2L |
| CAN A1 | CAN 1 for telematics | 25E |
| CAN A1 | CAN 1 for telematics | 35E |
| Code 380 | Car telephony package | 7E |
| Code 380 | Car telephony package | 10B |
| Code 380 | Car telephony package | 42B |
| Code 380 | Car telephony package | 49E |
| Code 534 | Connect 20 Premium (NTG7) | 19J |
| Code 534 | Connect 20 Premium (NTG7) | 39J |

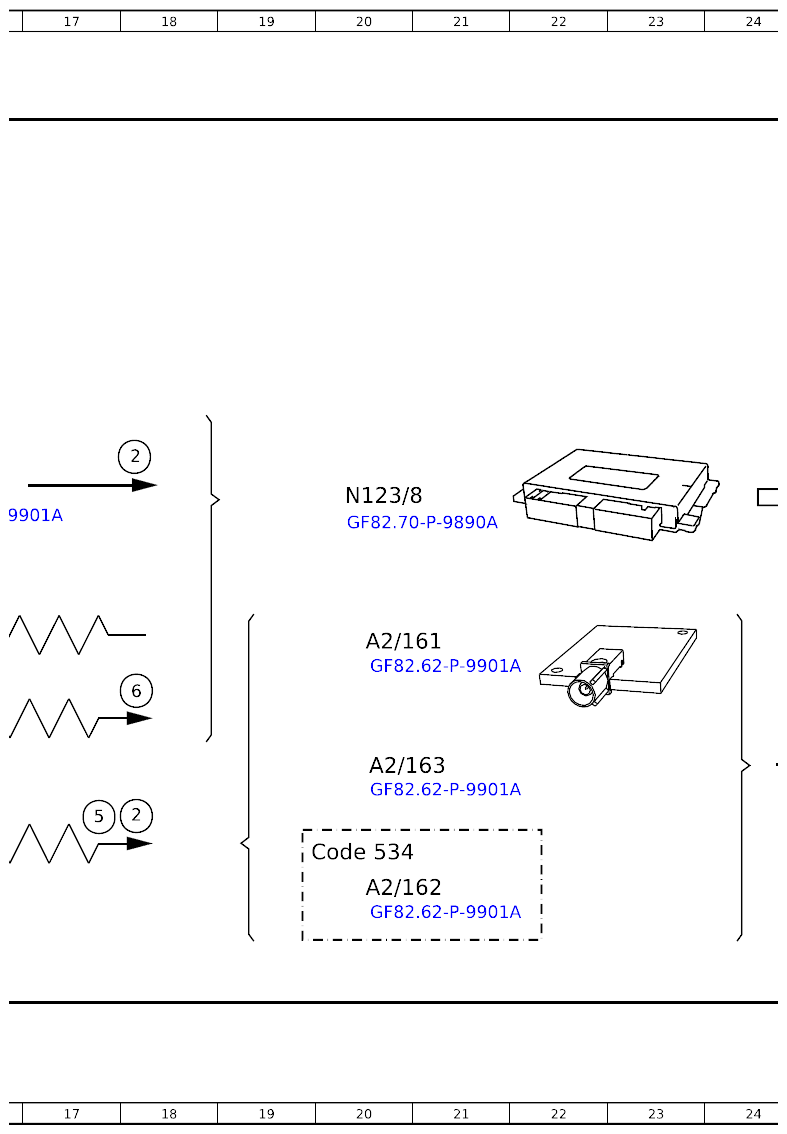

| N123/8 | Mobile phone cradle control unit | 20E |

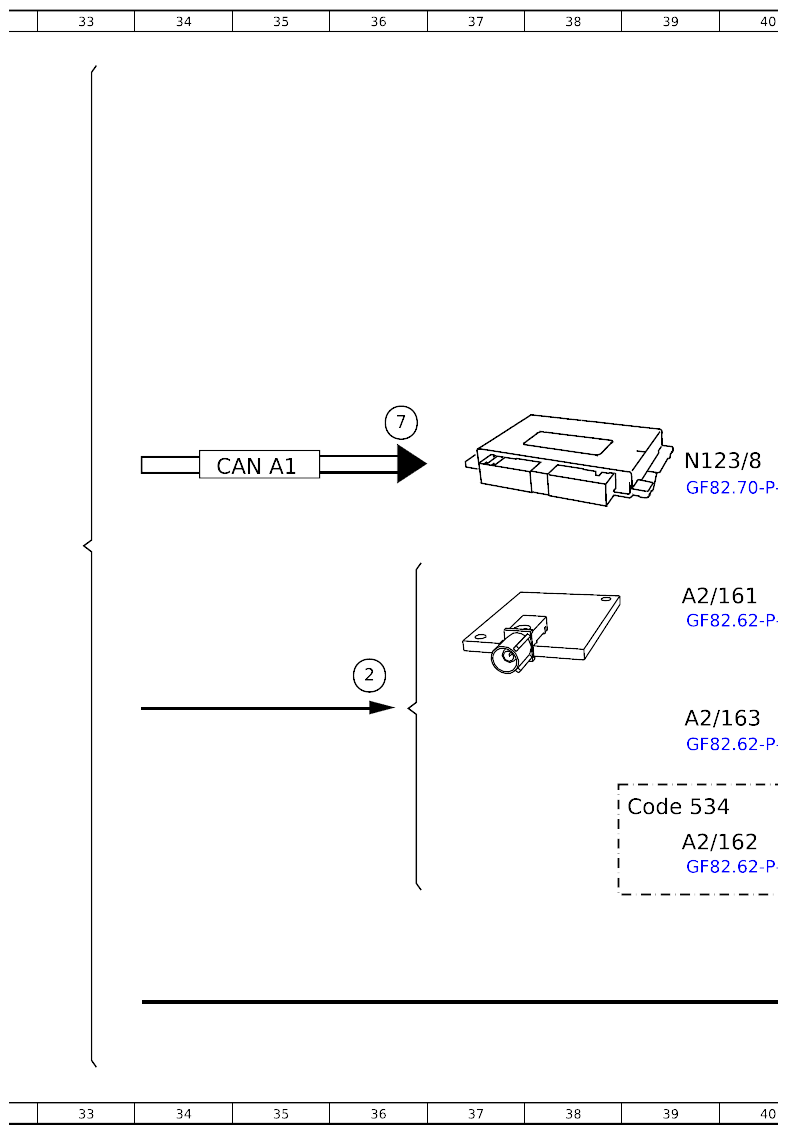

| N123/8 | Mobile phone cradle control unit | 39E |
