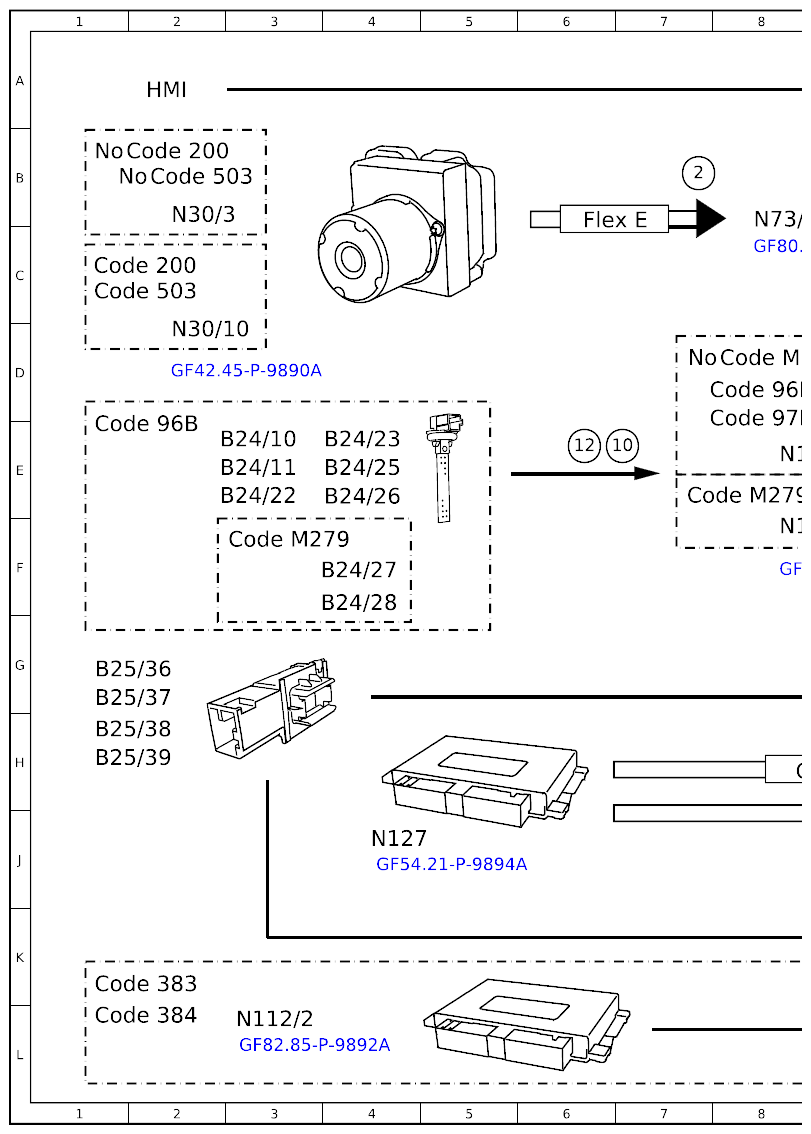

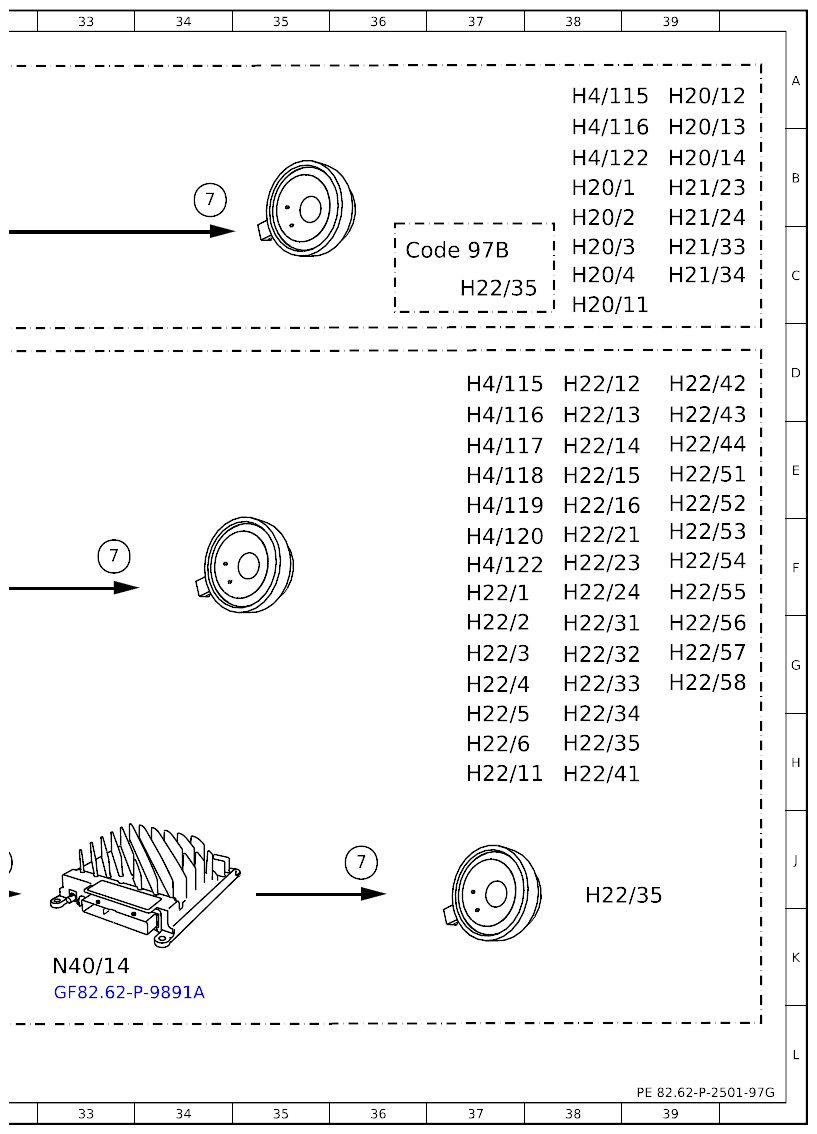

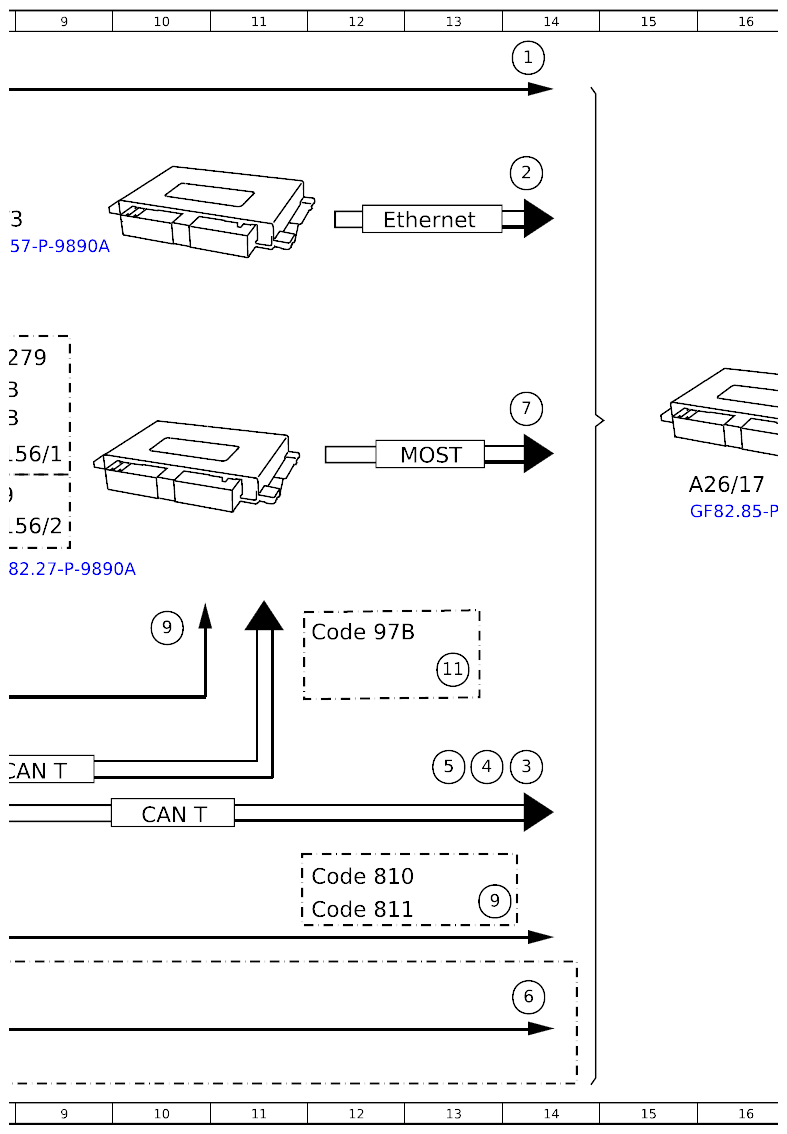

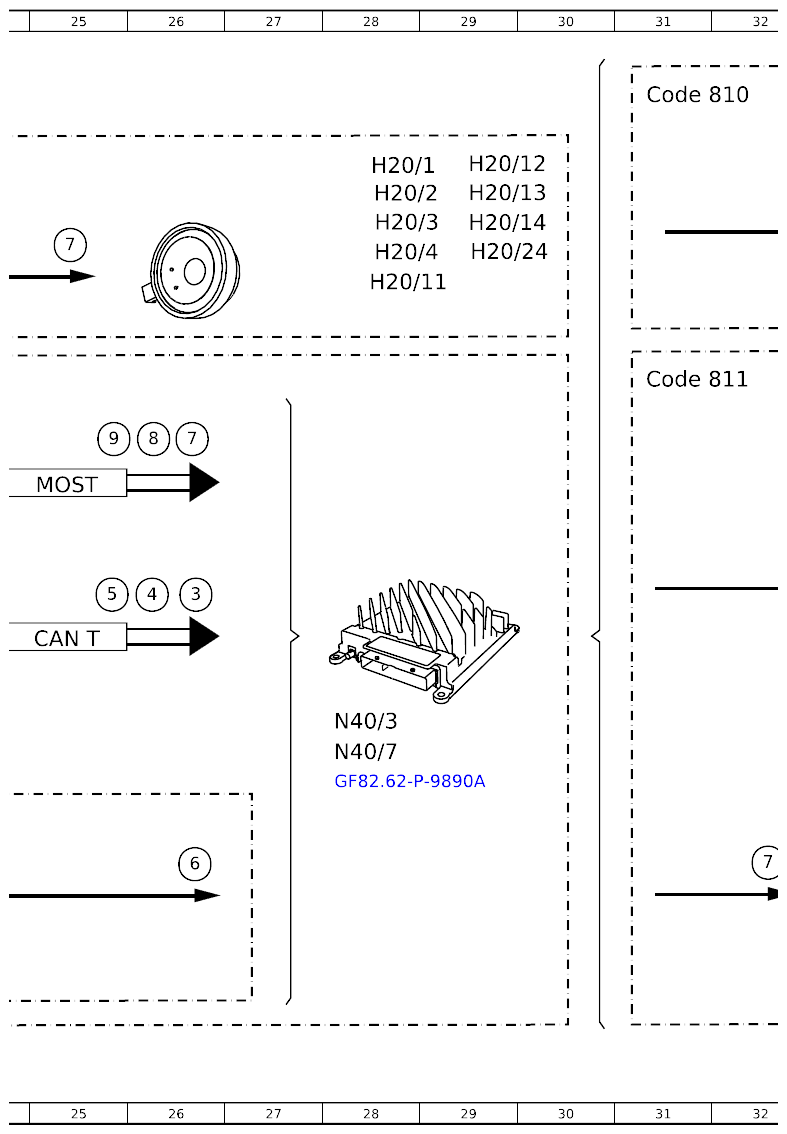

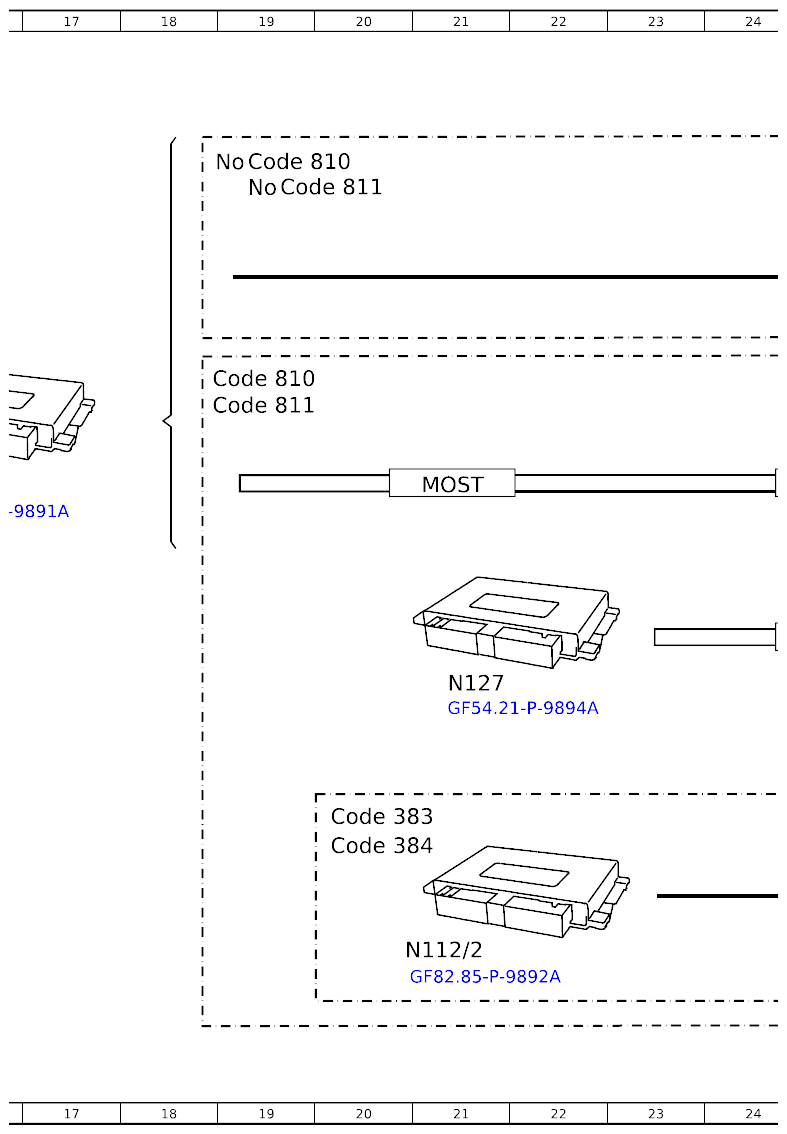

Function Schematic For Actuating Speakers - PE82.62-P-2501-97G
Model 223
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Operation, signal | 14A |
| 10 | Wheel acceleration sensor, signal | 7E |
| 11 | Cylinder shutoff, status | 14G |
| 12 | Axle acceleration sensor, signal | 6E |
| 2 | Vehicle speed, signal | 14B |
| 2 | Vehicle speed, signal | 7B |
| 3 | Engine running, signal | 26F |
| 3 | Engine running, signal | 14H |
| 4 | Engine speed, signal | 26F |
| 4 | Engine speed, signal | 13H |
| 5 | Engine torque, signal | 25F |
| 5 | Engine torque, signal | 13H |
| 6 | Mute function, signal | 14K |
| 6 | Mute function, signal | 26J |
| 7 | Audio, signal | 25C |
| 7 | Audio, signal | 34B |
| 7 | Audio, signal | 33F |
| 7 | Audio, signal | 32J |
| 7 | Audio, signal | 36J |
| 7 | Audio, signal | 26E |
| 8 | Boosting of signals for communication in the vehicle, request | 26E |
| 9 | Microphone, signal | 10F |
| 9 | Microphone, signal | 25E |
| 9 | Microphone, signal | 13J |
| A26/17 | Head unit | 16E |
| B24/10 | Wheel acceleration sensor | 2E |
| B24/11 | Wheel acceleration sensor | 2E |
| B24/22 | Wheel acceleration sensor | 2E |
| B24/23 | Wheel acceleration sensor | 4E |
| B24/25 | Axle acceleration sensor | 4E |
| B24/26 | Axle acceleration sensor | 4E |
| B24/27 | Axle acceleration sensor | 3F |
| B24/28 | Axle acceleration sensor | 3F |
| B25/36 | Microphone | 1G |
| B25/37 | Microphone | 1G |
| B25/38 | Microphone | 1H |
| B25/39 | Microphone | 1H |
| CAN T | CAN for drivetrain | 10J |
| CAN T | CAN for drivetrain | 25G |
| CAN T | CAN for drivetrain | 9H |
| Code 200 | Conditionally automated driving | 1B |
| Code 200 | Conditionally automated driving | 1C |
| Code 383 | RAMSES ENTRY communication module | 1K |
| Code 383 | RAMSES ENTRY communication module | 20J |
| Code 384 | RAMSES HIGH communication module | 1L |
| Code 384 | RAMSES HIGH communication module | 20J |
| Code 503 | Remote-controlled parking | 2B |
| Code 503 | Remote-controlled parking | 1C |
| Code 810 | Premium sound system | 19B |
| Code 810 | Premium sound system | 31A |
| Code 810 | Premium sound system | 18D |
| Code 810 | Premium sound system | 12J |
| Code 811 | High-End sound system | 19B |
| Code 811 | High-End sound system | 31D |
| Code 811 | High-End sound system | 18D |
| Code 811 | High-End sound system | 12K |
| Code 96B | Driving noise reduction via speakers (RNC) | 1E |
| Code 96B | Driving noise reduction via speakers (RNC) | 7D |
| Code 97B | Engine noise reduction via speakers (EOC) | 36C |
| Code 97B | Engine noise reduction via speakers (EOC) | 12G |
| Code 97B | Engine noise reduction via speakers (EOC) | 7E |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 8D |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 7E |
| Code M279 | V12 SPARK-IGNITION ENGINE M279 - AMG | 3F |
| Ethernet | Ethernet | 13C |
| Flex E | Chassis FlexRay | 6C |
| H20/1 | Left front door tweeter | 28B |
| H20/1 | Left front door tweeter | 38B |
| H20/11 | Left rear door tweeter | 38C |
| H20/11 | Left rear door tweeter | 28C |
| H20/12 | Right rear door tweeter | 29B |
| H20/12 | Right rear door tweeter | 39A |
| H20/13 | Left rear door midrange speaker | 29B |
| H20/13 | Left rear door midrange speaker | 39B |
| H20/14 | Right rear door midrange speaker | 29C |
| H20/14 | Right rear door midrange speaker | 39B |
| H20/2 | Right front door tweeter | 28B |
| H20/2 | Right front door tweeter | 38B |
| H20/24 | Right front bass speaker | 29C |
| H20/3 | Left front door midrange speaker | 28C |
| H20/3 | Left front door midrange speaker | 38C |
| H20/4 | Right front door midrange speaker | 28C |
| H20/4 | Right front door midrange speaker | 38C |
| H21/23 | Left front bass speaker | 39B |
| H21/24 | Right front bass speaker | 39B |
| H21/33 | Left rear midrange speaker | 39C |
| H21/34 | Right rear midrange speaker | 39C |
| H22/1 | Left front door tweeter | 37F |
| H22/11 | Left rear door tweeter | 37H |
| H22/12 | Right rear door tweeter | 38D |
| H22/13 | Left rear door midrange speaker | 38E |
| H22/14 | Right rear door midrange speaker | 38E |
| H22/15 | Left rear door woofer | 38E |
| H22/16 | Right rear door woofer | 38E |
| H22/2 | Right front door tweeter | 37G |
| H22/21 | Instrument panel tweeter | 38F |
| H22/23 | Left front bass speaker | 38F |
| H22/24 | Right front bass speaker | 38F |
| H22/3 | Left front door midrange speaker | 37G |
| H22/31 | Left rear tweeter | 38G |
| H22/32 | Right rear tweeter | 38G |
| H22/33 | Left rear midrange speaker | 38G |
| H22/34 | Right rear midrange speaker | 38H |
| H22/35 | Subwoofer | 38J |
| H22/35 | Subwoofer | 38H |
| H22/35 | Subwoofer | 37C |
| H22/4 | Right front door midrange speaker | 37G |
| H22/41 | Driver head restraint mid-range speaker | 38H |
| H22/42 | Driver head restraint mid-range speaker | 39D |
| H22/43 | Front passenger head restraint mid-range speaker | 39E |
| H22/44 | Front passenger head restraint mid-range speaker | 39E |
| H22/5 | Left front door woofer | 37H |
| H22/51 | Driver seat backrest speaker | 39E |
| H22/52 | Driver seat backrest speaker | 39E |
| H22/53 | Front passenger seat backrest speaker | 39F |
| H22/54 | Front passenger seat backrest speaker | 39F |
| H22/55 | Left rear seat backrest speaker | 39F |
| H22/56 | Left rear seat backrest speaker | 39G |
| H22/57 | Right rear seat backrest speaker | 39G |
| H22/58 | Right rear seat backrest speaker | 39G |
| H22/6 | Left front door woofer | 37H |
| H4/115 | Left front overhead control panel mid-range speaker | 38A |
| H4/115 | Left front overhead control panel mid-range speaker | 37D |
| H4/116 | Right front overhead control panel mid-range speaker | 38B |
| H4/116 | Right front overhead control panel mid-range speaker | 37E |
| H4/117 | Left center headliner midrange speaker | 37E |
| H4/118 | Right center headliner midrange speaker | 37E |
| H4/119 | Left rear roof lining mid-range speaker | 37E |
| H4/120 | Right rear roof lining mid-range speaker | 37F |
| H4/122 | Front mid-range speaker | 38B |
| H4/122 | Front mid-range speaker | 37F |
| MOST | Media Oriented System Transport | 25E |
| MOST | Media Oriented System Transport | 21E |
| MOST | Media Oriented System Transport | 13E |
| N112/2 | Telematics services communication module | 3L |
| N112/2 | Telematics services communication module | 21K |
| N127 | Drivetrain control unit | 4J |
| N127 | Drivetrain control unit | 21G |
| N156/1 | Sound generator control unit | 8E |
| N156/2 | Sound generator control unit | 8F |
| N30/10 | Electronic Stability Program control unit | 2D |
| N30/3 | Electronic Stability Program control unit | 2B |
| N40/14 | Subwoofer amplifier | 33K |
| N40/3 | Sound system amplifier control unit | 28H |
| N40/7 | Sound system amplifier control unit | 28H |
| N73/3 | Electronic ignition switch control unit | 8C |
