Remove/Install Windshield Wiper System - AR82.30-P-0001S

Model 223

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Injury hazard from pinching and crushing, in extreme cases extremities can even be cut off when caught in windshield wiper mechanism.	When working on the windshield wiper mechanism, always switch off the ignition and store transmitter key outside of transmission range (at least 2 m).	AS82.30-Z-0001-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove wiper arms.		AR82.30-P-6100S
2	Unclip hose of windshield wiper system (11) from water drain.	Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
3	Remove water drain.

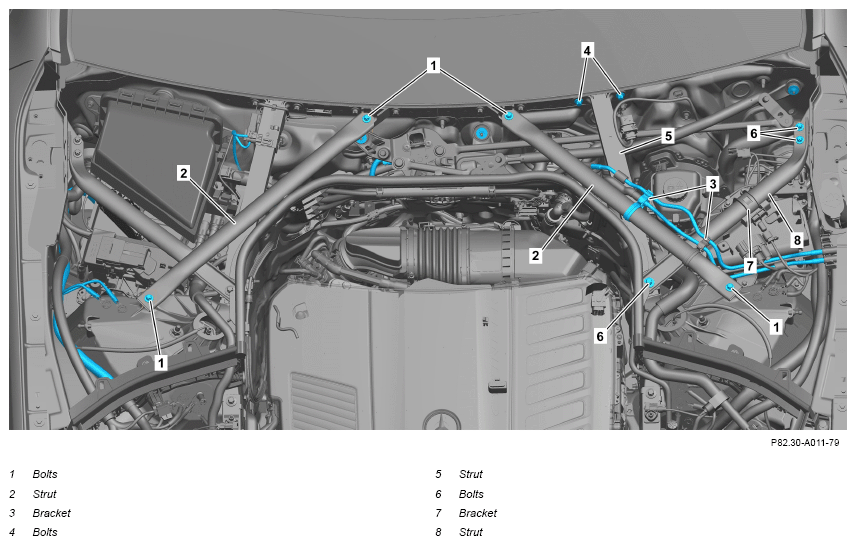

4	Remove bolts (1).	Screw, upper/lower struts to firewall	*BA62.30-P-1002-02P
5	Remove holder (3) from strut (2).	Model 223 with code 874 (MAGIC VISION CONTROL incl. heated windshield washer system)
6	Remove struts (2).
7	Remove screws (4, 6).	Screw, upper strut on suspension strut tower mounting console	*BA62.30-P-1007-02P
		Screw, center/lower strut to suspension strut tower mounting console	*BA62.30-P-1008-02P
		Screw, center strut to longitudinal member mounting console	*BA62.30-P-1009-02P
8	Unscrew screws of holder (7) and remove holder
9	Remove struts (5, 8).

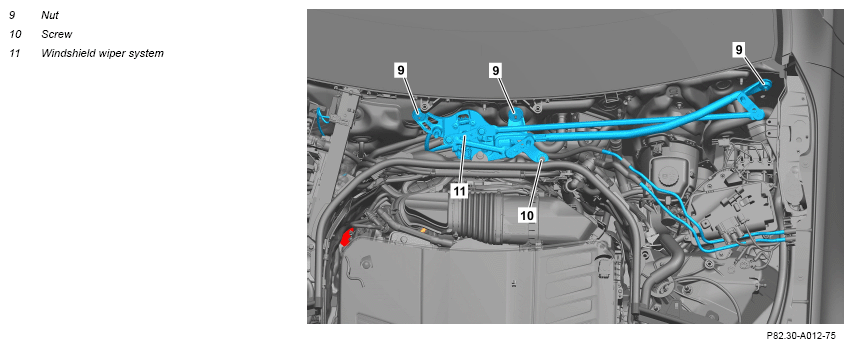

10	Remove nuts (9).	Bolt/nut, windshield wiper system to body	*BA82.30-P-1001-01P
11	Remove the bolt (10).	Bolt/nut, windshield wiper system to body	*BA82.30-P-1001-01P
12	Lift up windshield wiper system (11) and disconnect electrical connector from motor of windshield wiper system (11).
13	Remove windshield wiper system (11).
14	Install in the reverse order.
15	Commission windshield wiper system (11).	If windshield wiper system (11) was replaced.
			AD00.00-P-2000-06FR

FRONT AREA WITH FRONT REINFORCEMENT

Number	Designation		Model 223
BA62.30-P-1002-02P	Screw, upper/lower struts to firewall	Nm	30

FRONT AREA WITH FRONT REINFORCEMENT

Number	Designation		Model 223
BA62.30-P-1007-02P	Screw, upper strut on suspension strut tower mounting console	Nm	30

FRONT AREA WITH FRONT REINFORCEMENT

Number	Designation				Model 223
BA62.30-P-1008-02P	Screw, center/lower strut to suspension strut tower mounting console	Stage 1		Nm	35
		Stage 2		Nm	50
		Stage 3	Loosen	∠°	180
		Stage 4		Nm	50

FRONT AREA WITH FRONT REINFORCEMENT

Number	Designation		Model 223
BA62.30-P-1009-02P	Screw, center strut to longitudinal member mounting console	Nm	30

WINDSHIELD WIPER

Number	Designation			Model 223
BA82.30-P-1001-01P	Bolt/nut, windshield wiper system to body	M6	Nm	14
		M8	Nm	-
