Remove/Install VICS Vehicle Information And Communication System Control Unit - AR82.60-P-0003S
Model 223
with code 943 (Payment system for toll fees)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||

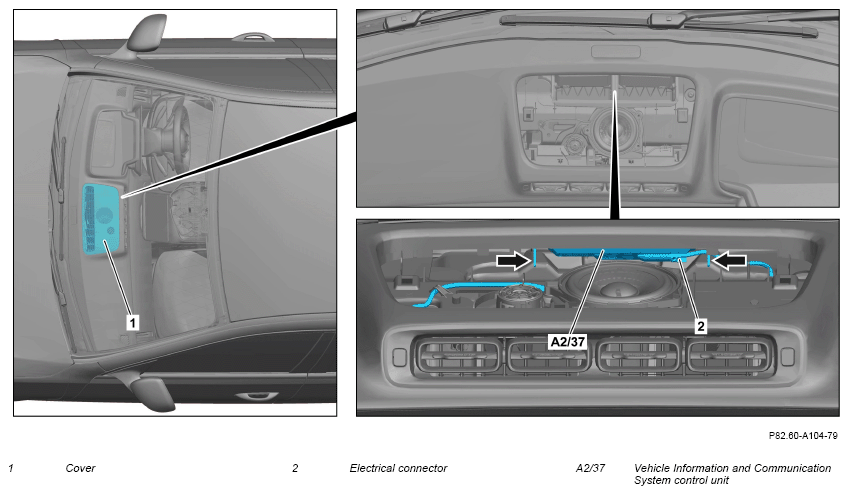

| 2 | Unclip cover (1) and remove rearwards. | Fig 1 | |
| 3 | Release and disconnect electrical connector (2). | ||
| 4 | Unclip Vehicle Information and Communication System control unit (A2/37) at side (arrows) and remove. | ||
| 5 | Install in the reverse order. | ||
| 6 | Commission Vehicle Information and Communication System control unit (A2/37). | When replacing Vehicle Information and Communication System control unit (A2/37). | |
| AD00.00-P-2000-06FR |
