Remove/Install Toll System Control Unit - AR82.88-P-0006S
Model 223
with code 943 (Payment system for toll fees)
Shown on model 223.### 1# with code P21 (Air quality package) and except code 865 (Digital TV tuner)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open glove compartment housing (1). | ||

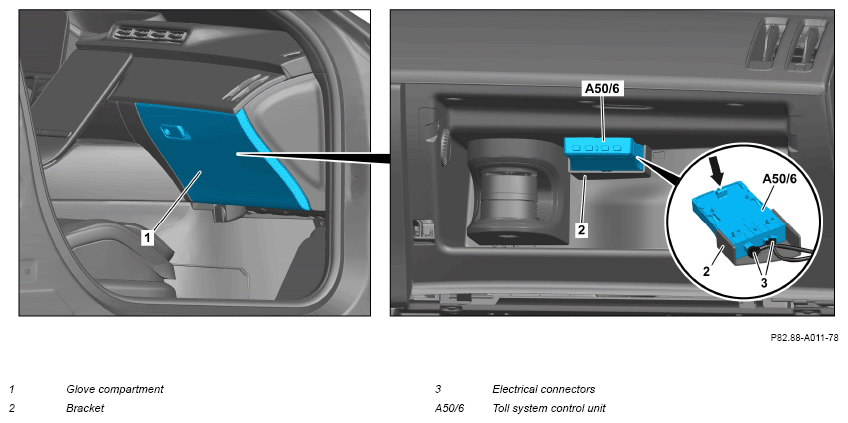

| 3 | Unclip toll system control unit (A50/6) with holder (2) downwards (arrows) and remove until electrical connectors (3) are accessible. | Fig 1 | |
| 4 | Release and disconnect electrical connectors (3) then remove toll system control unit (A50/6) from glove compartment. | ||
| 5 | Install in the reverse order. | ||
| 6 | Commission toll system control unit (A50/6). | When replacing toll system control unit (A50/6). | |
| AD00.00-P-2000-06FR |
