Remove/Install TV Card Reader - AR82.85-P-7367S
Model 223
with code 865 (digital TV)
Shown on model 223.### 1# with code P21 (Air quality package) and except code 943 (Payment system for toll fees)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmitter range (min. 2 m). | ||
| 2 | Open glove compartment housing (1). | ||

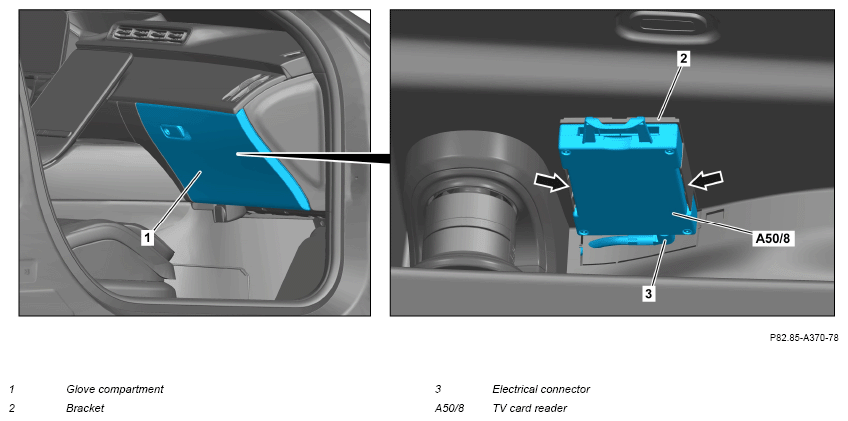

| 3 | Unclip TV card reader (A50/8) from holder (2) (arrows) and remove until the electrical connector (3) is accessible. | Fig 1 | |
| 4 | Release, disconnect electrical connector (3) and remove TV card reader (A50/8) from glove compartment. | ||
| 5 | Install in the reverse order. |
