Remove/Install Rear Sound Generator - AR82.27-P-0004SE
Model 223 with engine 256
with code ME10 (Hybrid vehicle (plug-in, PHEV))
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove rear underfloor paneling. | AR61.30-P-1001S | |
| 2 | Disconnect electrical connector at sound generator (H4/144). | ||

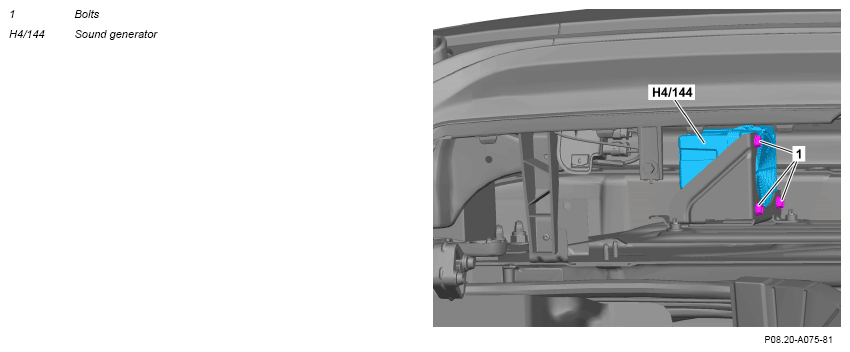

| 3 | Unscrew screws (1) and remove sound generator (H4/144). | ||
| 4 | Install in the reverse order. | ||
| 5 | Perform commissioning of sound generator (H4/144). | When replacing sound generator (H4/144). | |
| AD00.00-P-2000-06FR |
