Remove/Install Panic Alarm System Control Unit (GAS) - AR82.25-P-1206SG
Model 223
with code Y860 (Special signaling system, disguised, Ger. signal)
with code Z07 (B7 armoring on special protection version)
Model 223
with code Y861 (Special signaling system, disguised, Yelp-Wail-Hilo,)
with code Z07 (B7 armoring on special protection version)
Model 223
with code Z07 (B7 armoring on special protection version)
with code Z22 (Panic alarm system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Commission panic alarm system/special signaling system control unit (N26/12). | When replacing panic alarm system/special signaling system control unit (N26/12). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trims of battery of 12 V on-board electrical system in trunk. | Model 223 with engine 279 with code Y860 (Special signaling system, disguised, Ger. signal) with code Z07 (B7 armoring on special protection version) Model 223 with engine 279 with code Y861 (Special signaling system, disguised, Yelp-Wail-Hilo,) |
AR54.10-P-0051-02SG |
| with code Z07 (B7 armoring on special protection version) Model 223 with engine 279 with code Z07 (B7 armoring on special protection version) with code Z22 (Panic alarm system) |

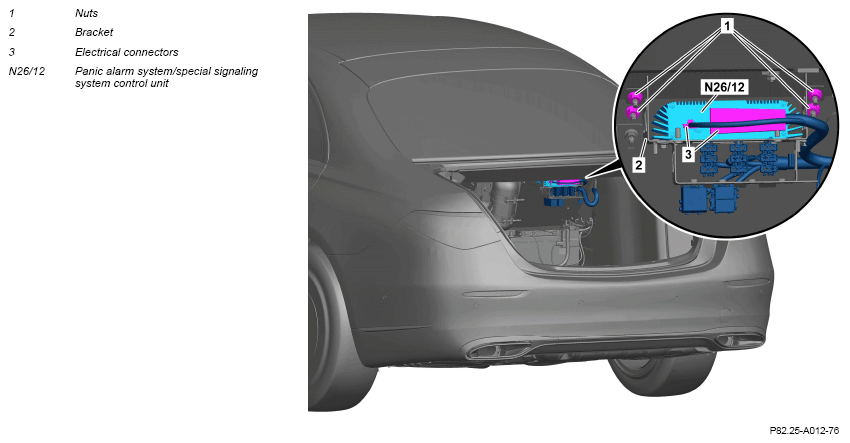

Fig 1 | ||
| 4 | Remove nuts (1) and remove holder (2) from rear panel. | ||
| 5 | Release and disconnect electrical connectors (3). | ||
| 6 | Disassemble panic alarm system/special signaling system control unit (N26/12) from holder (2) and remove. | ||
| 7 | Install in the reverse order. |
