Remove/Install Overhead Control Panel Control Unit - AR82.20-P-1000S

Model 192, 223, 232, 294, 295, 296, 297

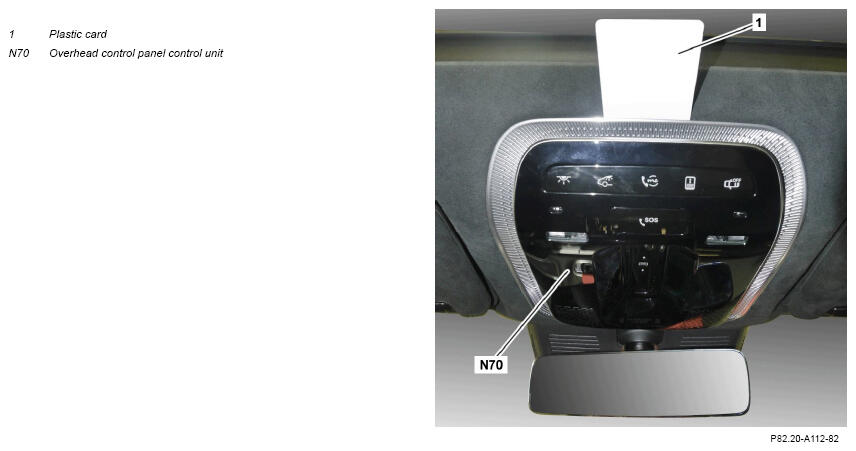

Shown on model 223

Courtesy of MERCEDES-BENZ USA

Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Insert plastic card (1) or similar object (2 mm thick) centrally between roof lining and overhead control panel control unit (N70).	Insert a plastic card (1) or similar object carefully. Otherwise the roof lining will be damaged.
3	Release lock in direction of travel and swivel overhead control panel control unit (N70) downward.
4	Separate electrical connectors.	The number of electrical connectors may vary depending on the equipment.
5	Remove overhead control panel control unit (N70) from frame.
6	Install in the reverse order.
7	Perform commissioning of overhead control panel control unit (N70).	When replacing the overhead control panel control unit (N70).
			AD00.00-P-2000-06FR
