Remove/Install Multimedia Connection Unit In Instrument Panel - AR82.60-P-1035S
Model 223
with code 380 (Car telephony package)
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

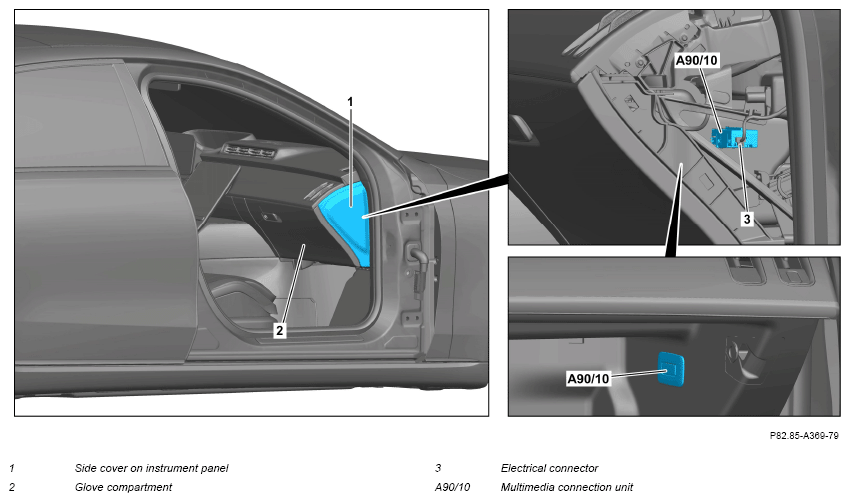

| 1 | Unclip side cover from instrument panel (1) on front passenger side and remove. | Fig 1 | |
| 2 | Open glove compartment housing (2). | ||
| 3 | Release and disconnect electrical connection (3). | ||
| 4 | Unclip multimedia connection unit (A90/10) from glove compartment housing (2) and remove. | ||
| 5 | Install in the reverse order. |
